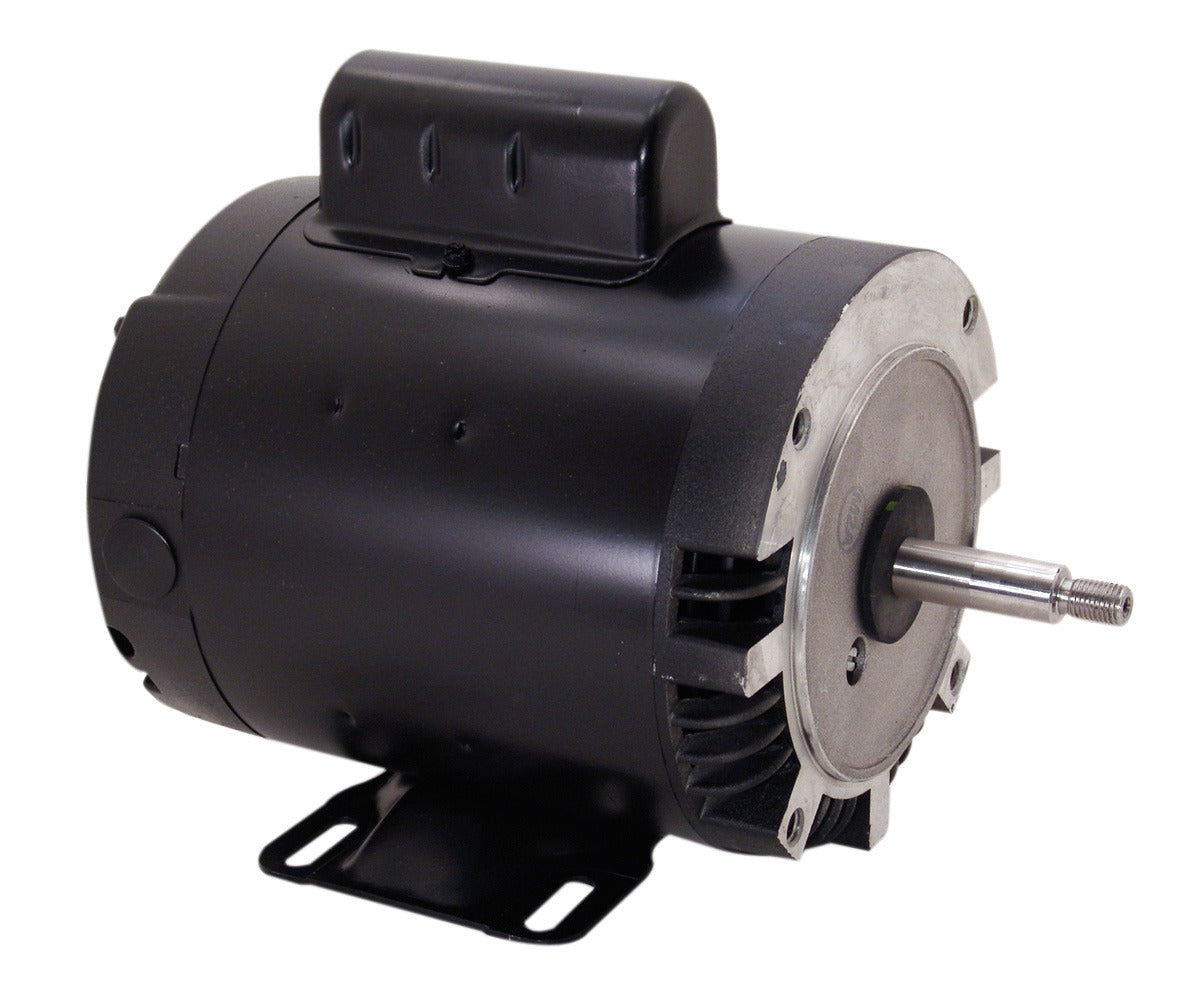

Century UB472 Centrifugal Pump Motor 1/3 HP 115/230V

Product Description

The Century UB472 Centrifugal Pump Motor is ideal for various pumping applications. This motor, with MPN UB472, offers a power of 1/3 HP and operates at 115/230 volts. Suitable for professionals in HVAC and plumbing.

• Capacitor start, induction run
• Single or dual voltage
• Thermally protected

Product Highlights

The motor features a rigid base for stability and is made of rolled steel for durability. It is designed for continuous duty operation, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Century
• MPN: UB472
• Type: Centrifugal Pump Motor
• Enclosure: Drip Proof
• Rotation: Clockwise

Technical Specifications

• Power: 1/3 HP
• Voltage: 115/230V
• Phase: 1
• Frame: K56J
• Amperage: SF 8.6/4.3
• Material: Rolled Steel
• Bearings Type: Ball
• Shaft Type: Threaded
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.45 inches
• RPM: 3450
• Overload Protection: Thermally Protected
• Certification: UL Recognized, CSA Certified
• Duty: Continuous
• Frequency: 50/60 Hz
• Insulation Class: B
• Service Factor: 1.75
• Mounting Type: Rigid Base
• Ambient Temperature: 40°C
