Century Motors UB387 B387 Air compressor motor 6.0 HP (Frame R56Y) B387

Product Description

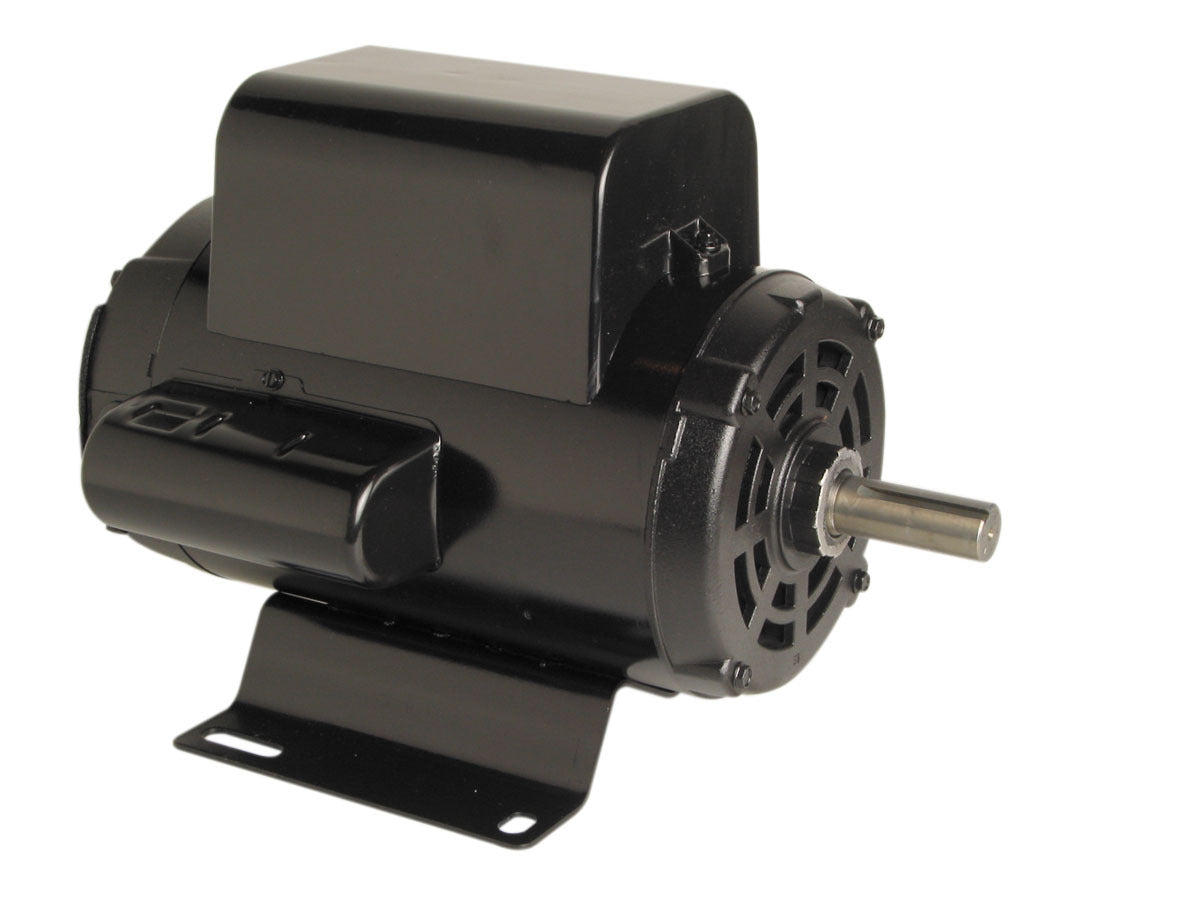

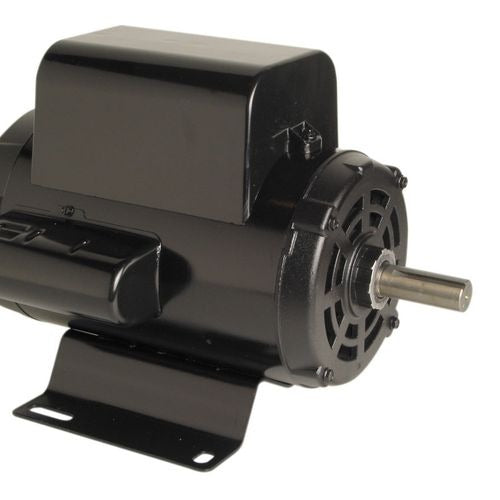

The Century UB387 is a 6.0 HP (4.5 kW) air compressor motor configured for capacitor start or capacitor run operation. It delivers 3450 RPM and 24.0 A at 230 V single-phase with clockwise rotation and a thermally protected overload. The motor features a rigid base, drip proof enclosure, keyed 0.875 in shaft with 2.310 in extension, and ball bearings on both drive and opposite drive ends.

• 6.0 HP (4.5 kW) motor, 3450 RPM, high starting torque for compressor applications
• Capacitor start or capacitor run, single or dual voltage capability, single phase 230 V, 24.0 A, clockwise rotation, thermally protected overload
• Frame R56Y, 6.5 in diameter, drip proof enclosure, rigid base mounting, keyed 0.875 in shaft with 2.310 in extension, ball bearings on DE and ODE

Product Highlights

6.0 HP compressor motor; capacitor start/run; 3450 RPM; keyed 0.875 in shaft; UL recognized and CSA certified

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: UB387
