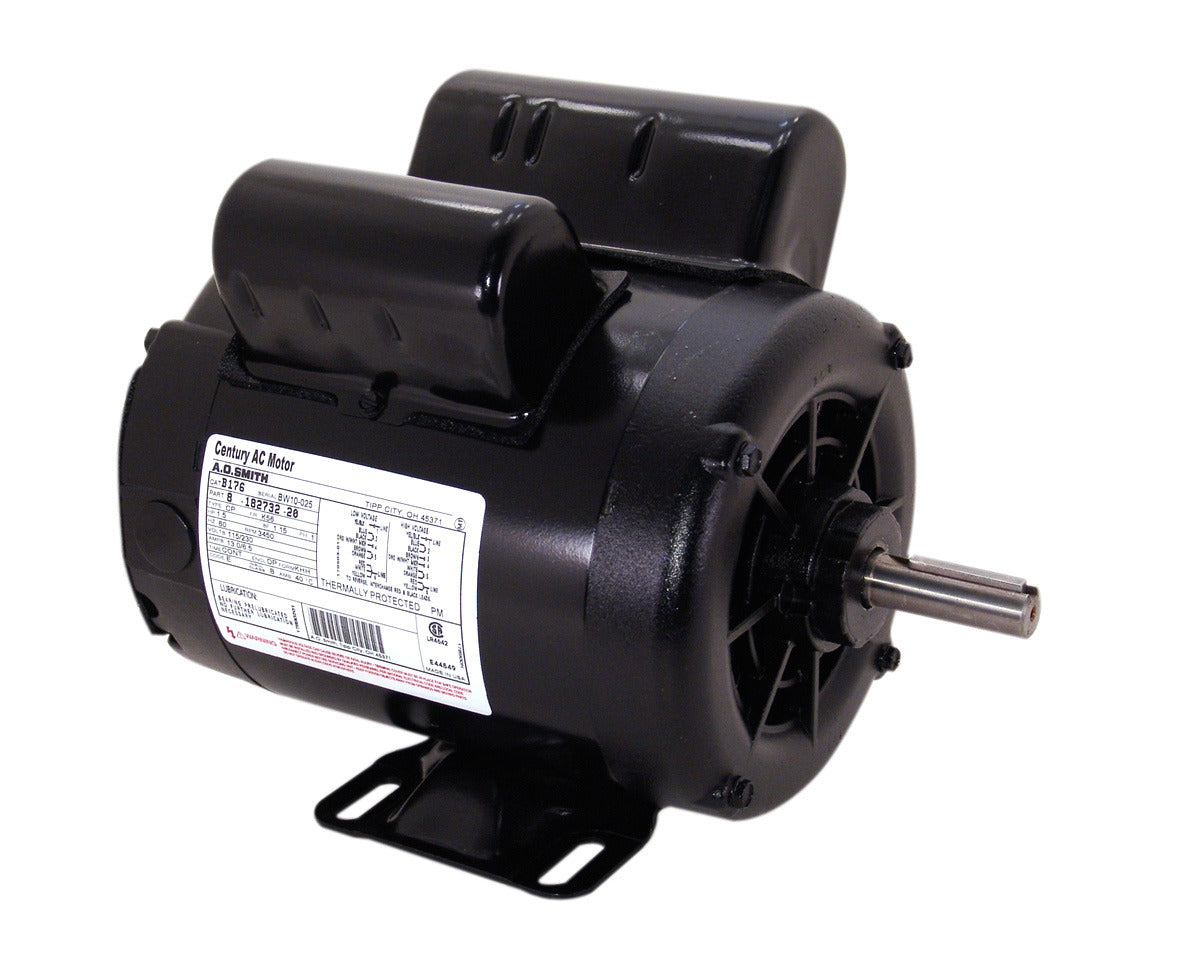

Century UB385 Air Compressor Motor 5 SPL HP 208-230 Volt Clockwise Rotation

Product Description

The Century UB385 Air Compressor Motor is designed to deliver reliable performance for various air compressor applications. With a 5 SPL horsepower (HP) and a 208-230 volt single-phase power supply, this motor provides efficient operation. Made with rolled steel and featuring a drip-proof enclosure, it ensures durability and protection against environmental elements.

• Capacitor start and run
• Thermally protected
• High starting torque

Product Highlights

Designed for optimal performance in air compressor systems, the Century UB385 features capacitor start or run for low-amp, high-efficiency operation, and heavy-duty construction to ensure long-lasting durability.

Product Information

Standard Information

• Brand: Century
• MPN: UB385
• Weight: 35 lbs

Technical Specifications

• HP: 5 SPL
• KW: 3.7
• RPM: 3450
• Frame: P56
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 208-230
• Rotation: Clockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 15.0
• Shaft Type: Keyed
• Shaft Extension: 1.94 inches
• Shaft Diameter: 0.625 inches
• Overload: Thermally Protected
• UL Recognition: Recognized
• CSA Certification: Yes
