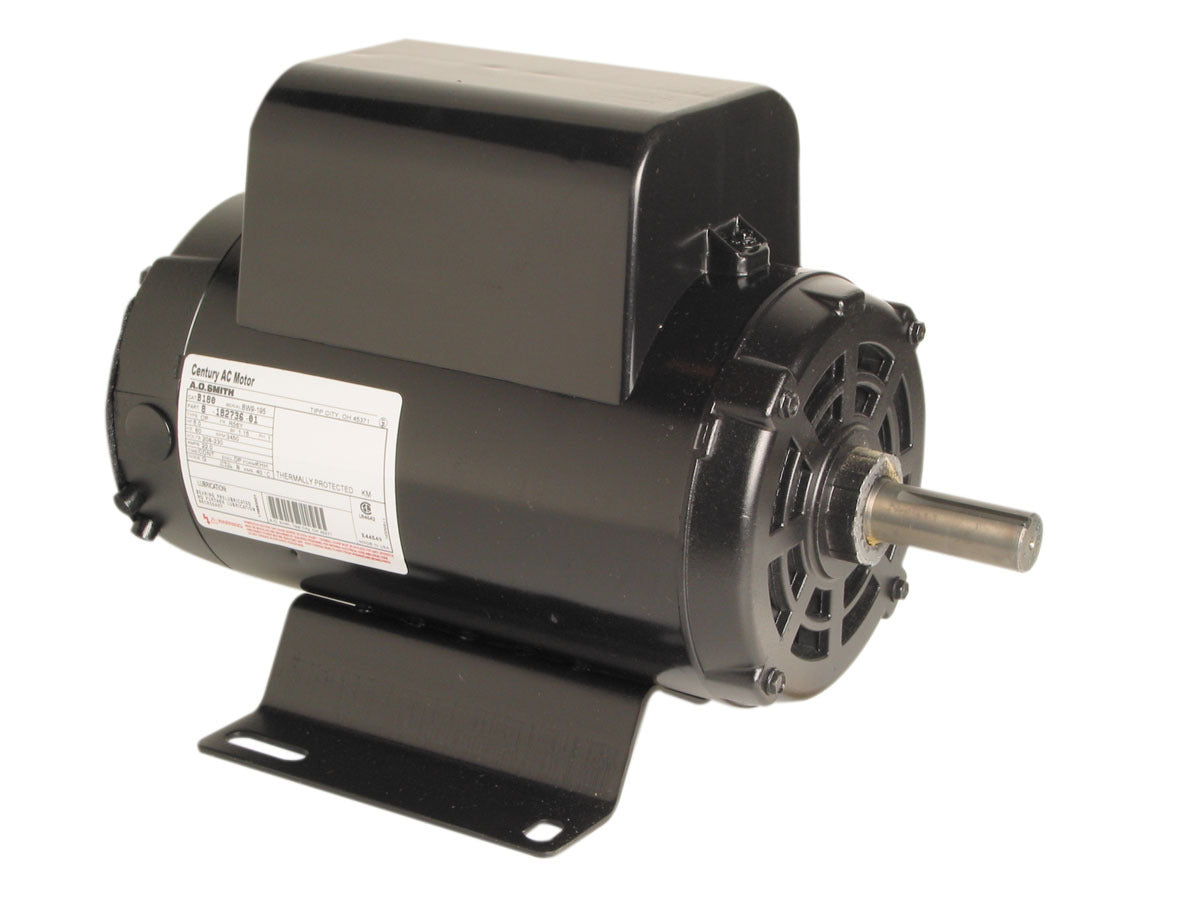

Century UB384 Air Compressor Motor 5 HP 208-230V R56Y Frame

Product Description

The Century UB384 Air Compressor Motor is designed for reliable operation in air compressor applications. This motor features a capacitor start and run design, providing low amp, high efficiency performance.

• Clockwise rotation
• Thermally protected
• Rigid base mounting

Product Highlights

Reliable air compressor motor with UL and CSA certification, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: Century
• MPN: UB384

Technical Specifications

• Motor Electrical Type: Capacitor Start, Capacitor Run, Single or Dual Voltage
• HP: 5
• Frame: R56Y
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 208-230
• Rotation: Clockwise
• Overload Protection: Thermally Protected
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 22
• Shaft Type: Keyed
• KW: 3.7
• RPM: 3450
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.31 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• UL Recognition: Yes
• CSA Certification: Yes
• Ambient Rating: 40°C
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 2
• Service Factor: 1.15
