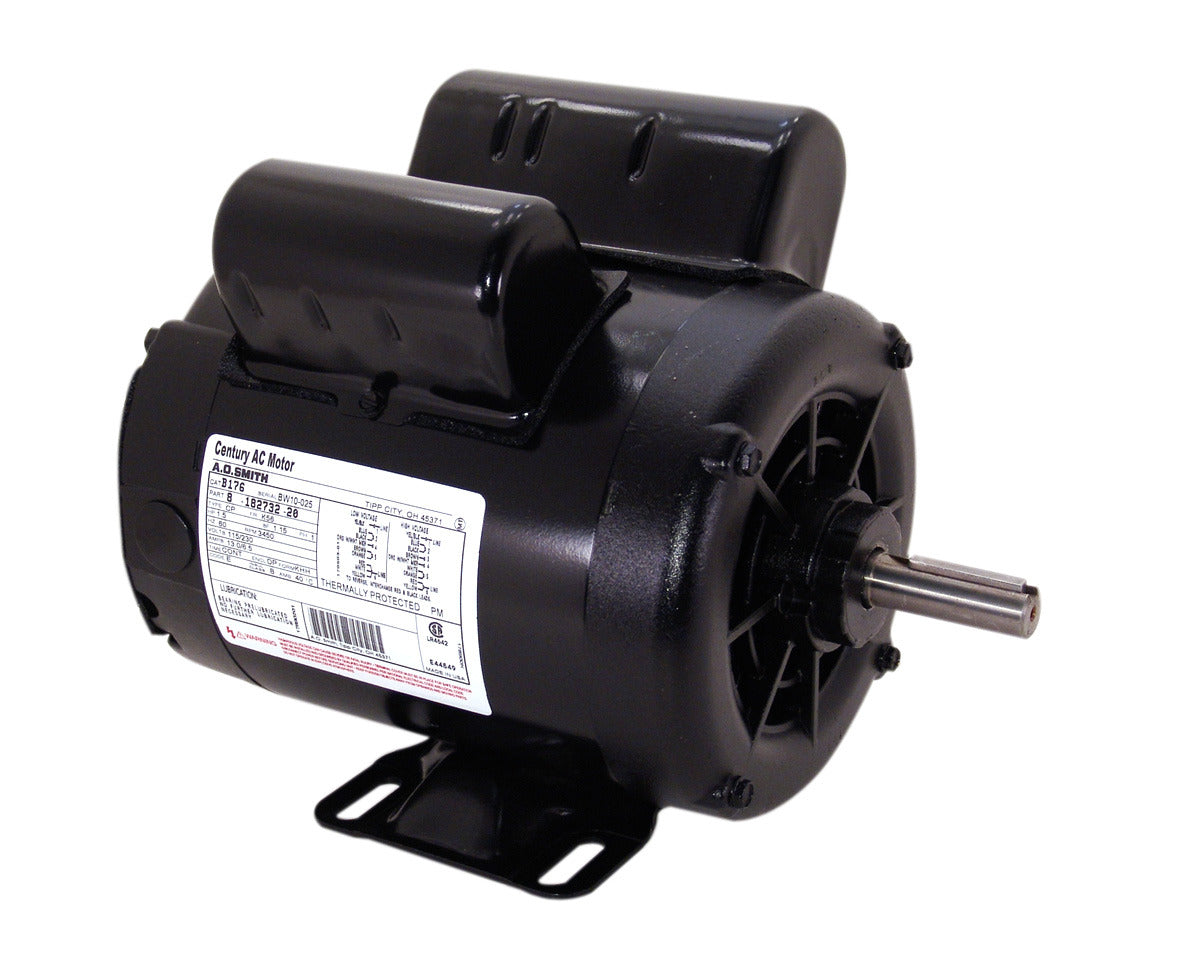

Century UB383 Air Compressor Motor 3SPL 115/230V 3450RPM

Product Description

The Century UB383 Air Compressor Motor is crucial for effective air compressor operation. This 3SPL horsepower motor features a capacitor start and run, offering dual voltage options of 115 or 230 volts. With a 3450 RPM speed, it ensures optimal performance in air compressor applications.

• Single-phase, 3450 RPM operation
• Thermally protected for safety
• Rugged rolled steel construction

Product Highlights

Reliable capacitor start and run motor for air compressors. Owing to high starting torque, it achieves required load efficiently. Heavy-duty construction enhances durability.

Product Information

Standard Information

• Brand: Century
• Voltage: 115/230
• HP: 3SPL

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Frame: U56
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Rotation: Clockwise
• Overload Protection: Thermally Protected
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 15.0/7.5
• KW: 2.2
• RPM: 3450
• Shaft Diameter: 0.625 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 1.94 inches
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 2
• Service Factor: 1
