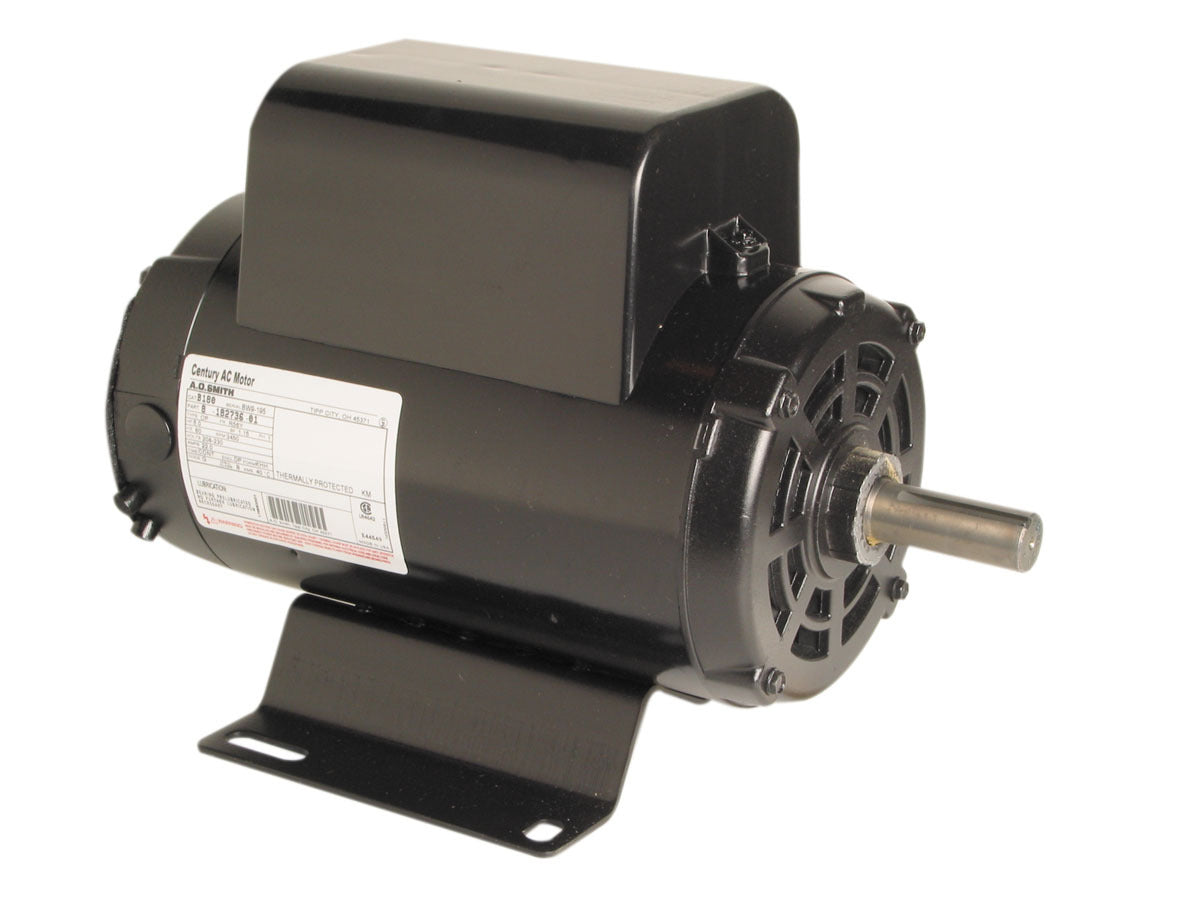

Century UB180 Pressure Washer Motor 5 HP 3450 RPM

Product Description

The Century UB180 Pressure Washer Motor is designed for high-performance applications. It features a capacitor start and capacitor run with single or dual voltage options.

• Thermal protection to prevent overheating.
• Heavy-duty rolled steel construction.
• Double-shielded ball bearings for extended motor life.

Product Highlights

This motor is suitable for use with pressure washers and ensures high efficiency and durability.

Product Information

Standard Information

• Brand: Century
• MPN: UB180

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• HP: 5
• Frame: R56Y
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 208-230
• Rotation: Clockwise
• Overload Protection: Thermally Protected
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 22
• Shaft Type: Keyed
• KW: 3.7
• RPM: 3450
• Shaft Diameter: 0.875 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 2.31 inches
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 2
• Service Factor: 1.15
