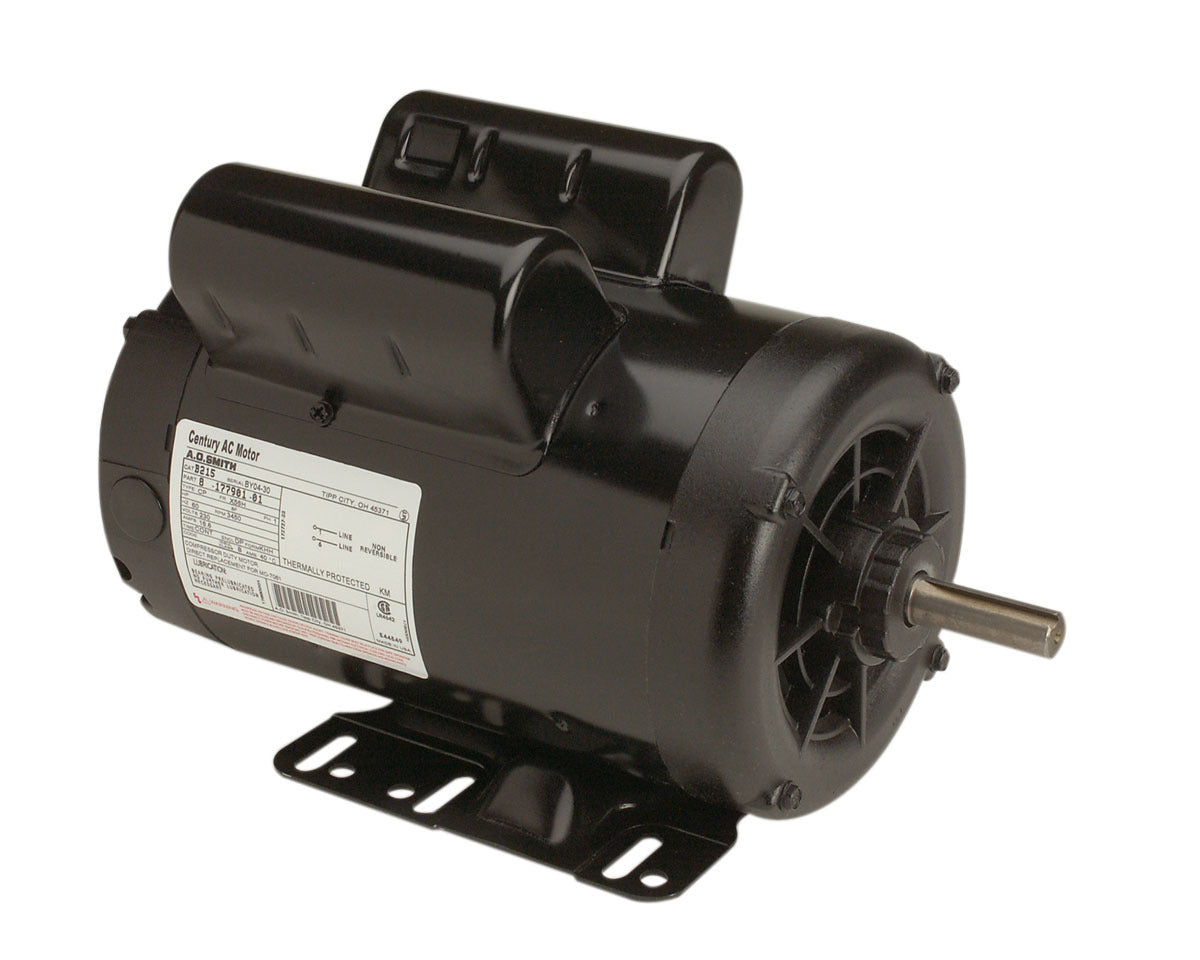

Century UB178 General Purpose Motor 208-230 Volts 3450 RPM

Product Description

The Century UB178 is a general purpose motor designed for a variety of applications. With its capacitor start and capacitor run features, this motor ensures efficient and reliable performance.

• Capacitor start, capacitor run, single or dual voltage
• 3 horsepower, 2.2 kW, 3450 RPM
• Thermally protected and reversible counterclockwise rotation

Product Highlights

The Century UB178 motor offers premium efficiency and durability. Its heavy-duty, rolled steel construction ensures longevity, while the permanently lubricated, double-sealed bearings extend the motor's lifecycle.

Product Information

Standard Information

• Brand: Century
• MPN: UB178
• Category: General Purpose Motor

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Horsepower: 3
• Frame: M56H
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 208-230
• Rotation: Reversible Counterclockwise
• Overload: Thermally Protected
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 13.5-12.5
• Shaft Type: Keyed
• RPM: 3450
• Shaft Diameter: 0.625 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 1.94 inches
