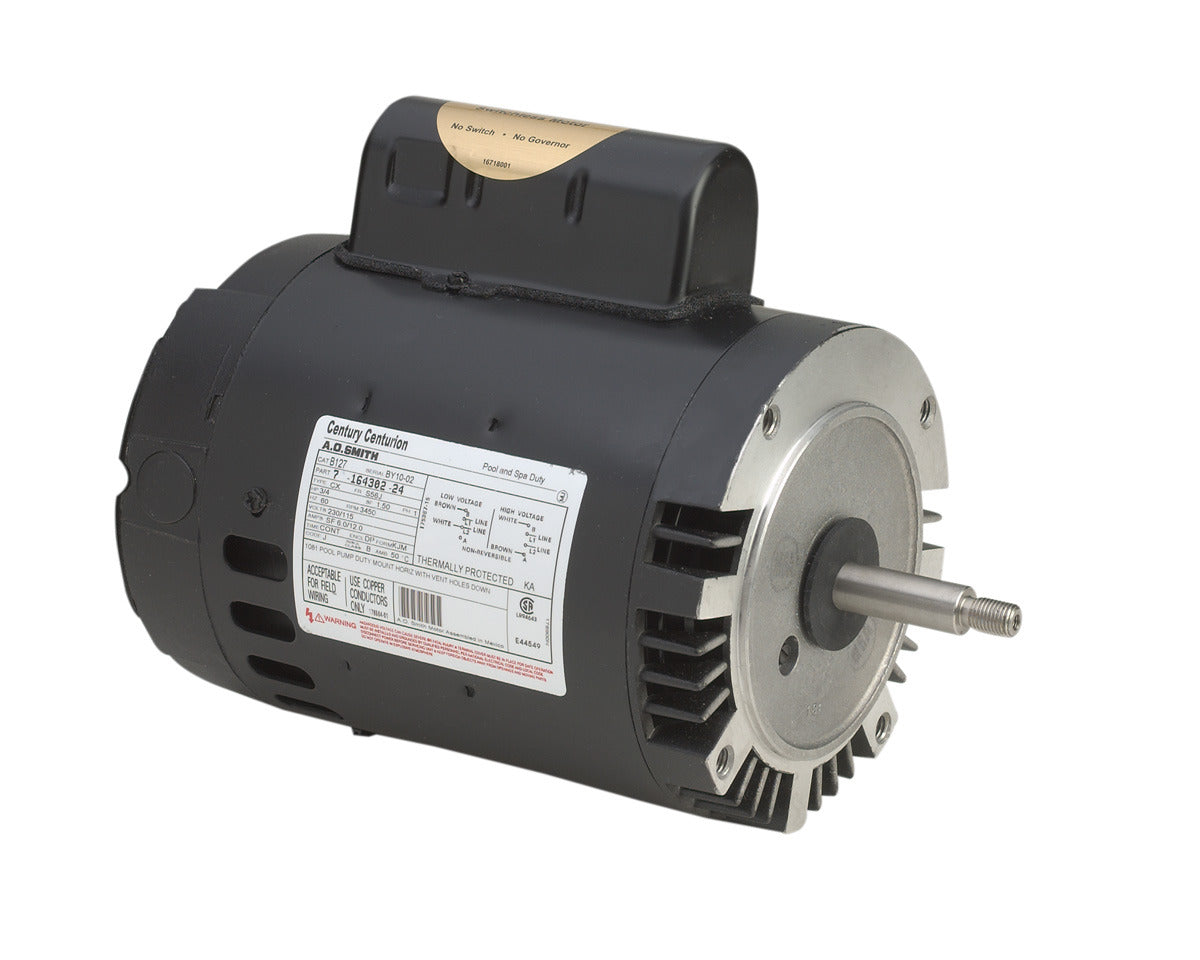

Century UB130 Pool and Spa Motor 2.0 HP 1.5 KW 3450 RPM

Product Description

The Century UB130 Pool and Spa Motor is designed for reliable operation in pool and spa applications. This motor, MPN UB130, features a permanent split capacitor and operates on single or dual voltage.

• Drip Proof Enclosure
• Thermally Protected
• Counterclockwise Pump End Rotation

Product Highlights

This Century motor is built with robust materials and features a drip proof enclosure, making it suitable for various environments. It includes ball bearings and a horizontally mounted orientation.

Product Information

Standard Information

• Brand: Century
• MPN: UB130
• Type: Motor > Pump Motor > Pool and Spa Motor
• Class: Pool and Spa Motor

Technical Specifications

• Type: Permanent Split Capacitor, Single Or Dual Voltage
• Horsepower: 2.0
• KW: 1.5
• Frame: X56J
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 230
• Rotation: Counterclockwise Pump End
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: C-Face
• Orientation: Horizontal
• Amperage: SF 10.5
• Shaft Type: 7/16 Threads
• Shaft Extension: 2.57 inches
• Shaft Diameter: 0.625 inches
• RPM: 3450
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Overload: Thermally Protected 50°C Ambient
• Certifications: UL Recognized, CSA
