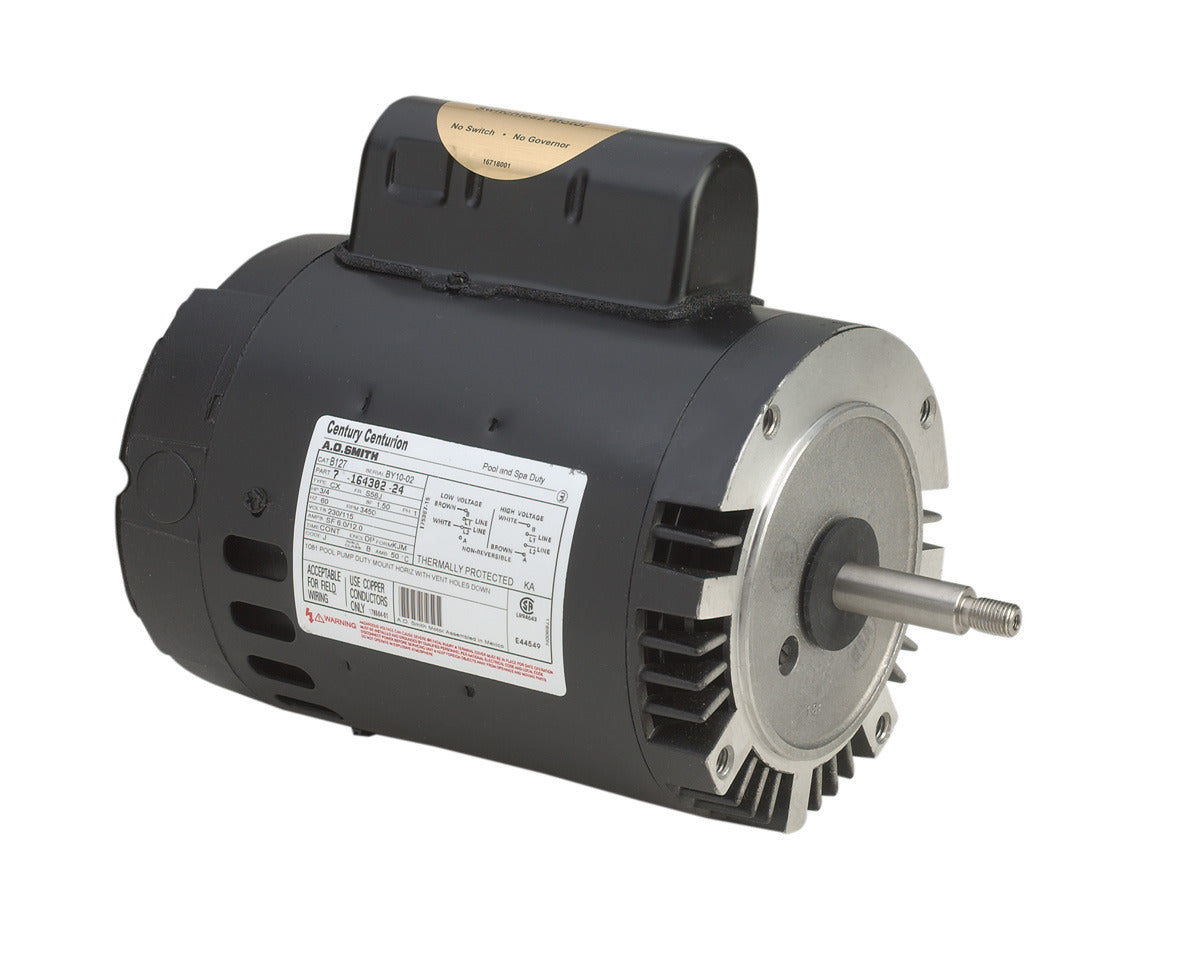

Century UB127 Pool and Spa Motor 0.75HP 230/115V 6.5 inch Diameter S56J Frame

Product Description

The Century UB127 Pool and Spa Motor is a reliable and efficient motor for pool and spa applications. It features a permanent split capacitor with single or dual voltage options.

• 0.75 horsepower for efficient performance
• Thermally protected for safety
• Drip proof enclosure

Product Highlights

The Century UB127 is built for durability with a rolled steel construction and ball bearings. It operates at 3450 RPM, ensuring that your pool or spa runs smoothly.

Product Information

Standard Information

• Brand: Century
• MPN: UB127
• Type: Pool and Spa Motor

Technical Specifications

• Electrical Type: Permanent Split Capacitor, Single or Dual Voltage
• Horsepower: 0.75
• Voltage: 230/115
• Frame: S56J
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 1
• Rotation: Counterclockwise Pump End
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: C-Face
• Orientation: Horizontal
• Amperage: SF 6.0/12.0
• Shaft Type: 7/16 Threads
• Shaft Extension: 2.57 inches
• Shaft Diameter: 0.625 inches
• RPM: 3450
• Overload Protection: Thermally Protected
• Certification: UL Recognized, CSA
• Ambient Temperature: 50°C
