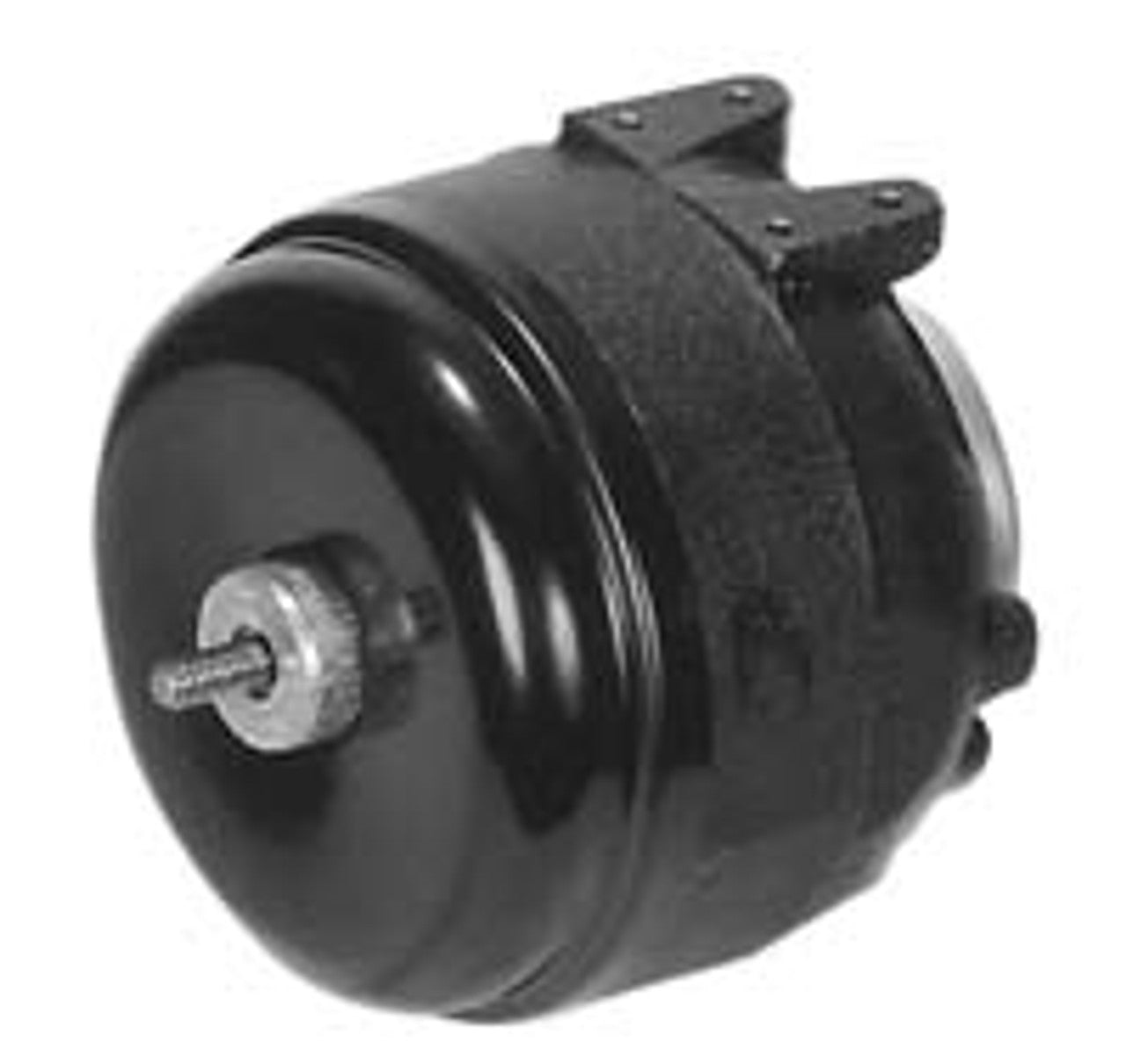

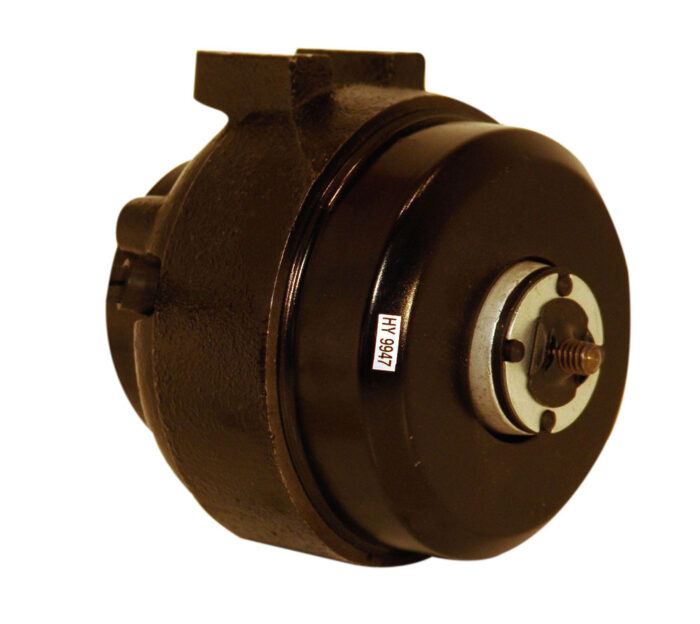

CENTURY MOTORS UB06CCL Unit Bearing Fan Motor

Product Description

The CENTURY MOTORS UB06CCL is a unit bearing fan motor designed specifically for air-over applications. This motor operates on one hundred fifteen volts and features a rotation of counterclockwise lead end (CCWLE). The motor's construction is made of cast iron, ensuring durability, and includes one mounting foot for easy installation.

• Continuous duty rated for reliable operation.
• Includes a vibration dampening hub washer.
• Equipped with a speed nut and four mounting screws.

Product Highlights

This fan motor functions effectively in continuous duty settings, providing reliable performance in various air circulation applications.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UB06CCL

Technical Specifications

• Frame: Unit Bearing
• Output Power: 6 Watts
• Voltage: 115 Volts
• Current: 0.40 Amps
• Rotation: CCWLE
• RPM: 1550
• Enclosure: Totally Enclosed Shaded Pole
• Material: Cast Iron
• Duty: Continuous Duty
• Application: Air Over
• Mounting: Cast Iron-One Mounting Foot
• Frequency: 50/60 Hz
• Phase: 1
