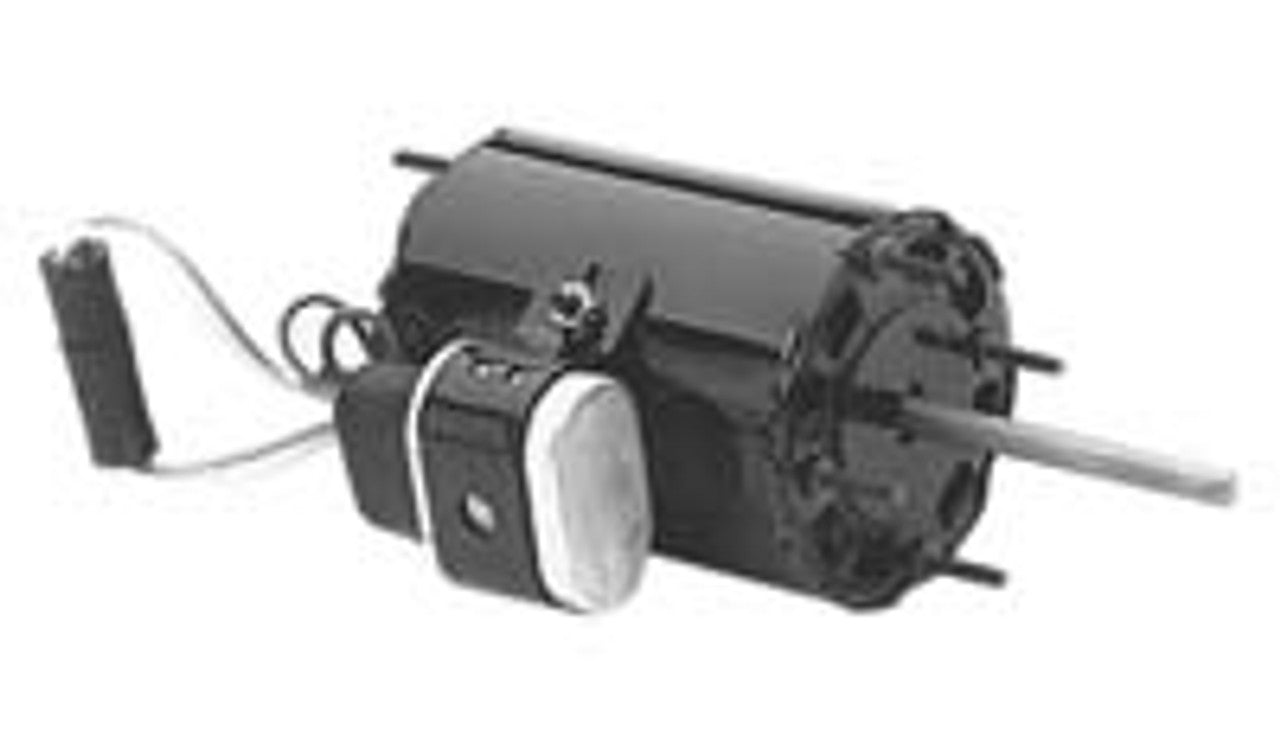

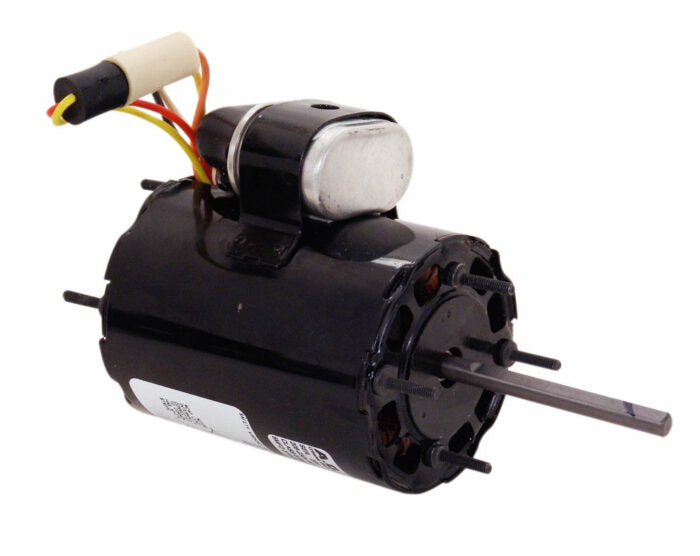

CENTURY MOTORS U990 Fan and Blower Motor

Product Description

The CENTURY MOTORS U990 is a single-phase PSC motor tailored for fan and blower applications. It operates at 208-230 volts with a reversible rotation feature, making it suitable for various installation needs.

• Designed for fan and blower applications.
• Reversible rotation and overload protection.
• Equipped with ball bearings for smooth operation.

Product Highlights

This motor is built for continuous duty and comes with an auto overload protector to avoid damage. The attached capacitor ensures efficient running.

Product Information

Standard Information

• Manufacturer Part Number: U990
• Horsepower: 1/10 HP

Technical Specifications

• RPM: 3200
• Speed: 1
• Input Voltage: 208-230 Volt
• Output Current: 0.63 Amps
• Rotation: Reversible
• Bearings: Ball Bearing
• Motor Type: PSC Motor
• Phase: Single
• Overload Protector: Auto
• Motor Diameter: 3.375 inches
• Enclosure: Open Vent
• Shaft Size: 5/16 x 3 1/4 inches
• Motor Case Length: 4 3/8 inches
