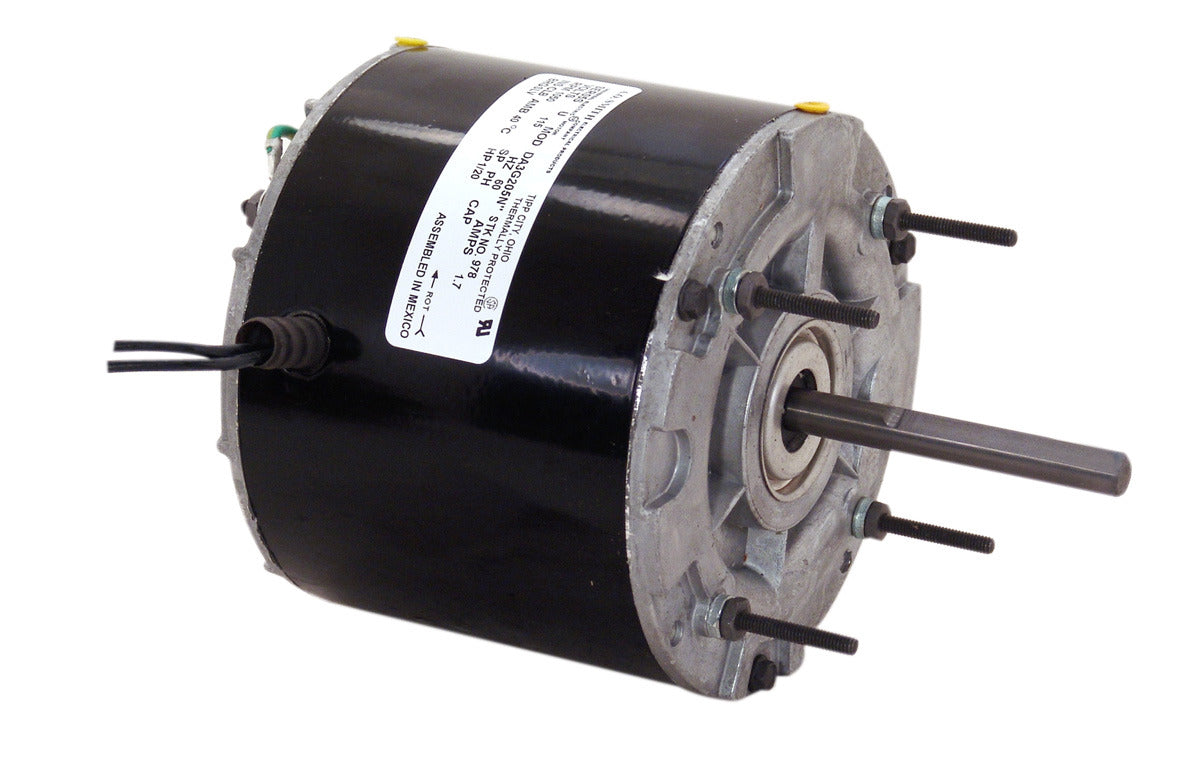

Century U978 OEM Replacement Motor 1/20HP 42 Frame 115V 1050RPM

Product Description

The Century U978 OEM Replacement Motor is a reliable motor suitable for a variety of HVAC applications. This motor operates on 115 volts and delivers 1/20 horsepower at 1050 RPM. It features a 42 frame and a TEAO enclosure.

• Electrical type: Shaded Pole
• Single phase motor
• Auto overload protection

Product Highlights

This motor is designed for horizontal orientation with extended studs mounting. It has sleeve bearings and a flat shaft with an extension of 3 inches.

Product Information

Standard Information

• Brand: Century
• Country of Origin: Mexico
• UPC Number: 787000000000

Technical Specifications

• HP: 1/20
• KW: 0.04
• RPM: 1050
• Frame: 42
• Enclosure: TEAO
• Phase: Single
• Voltage: 115
• Rotation: CWSE
• Material: Rolled Steel
• Sleeve Bearings: SE and OSE
• Mounting: Extended Studs
• Orientation: Horizontal
• Amperage: 1.7
• Shaft Type: Flat
• Shaft Extension: 3 inches
• Shaft Diameter: 0.375 inches
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
• Duty: Continuous Air Over
