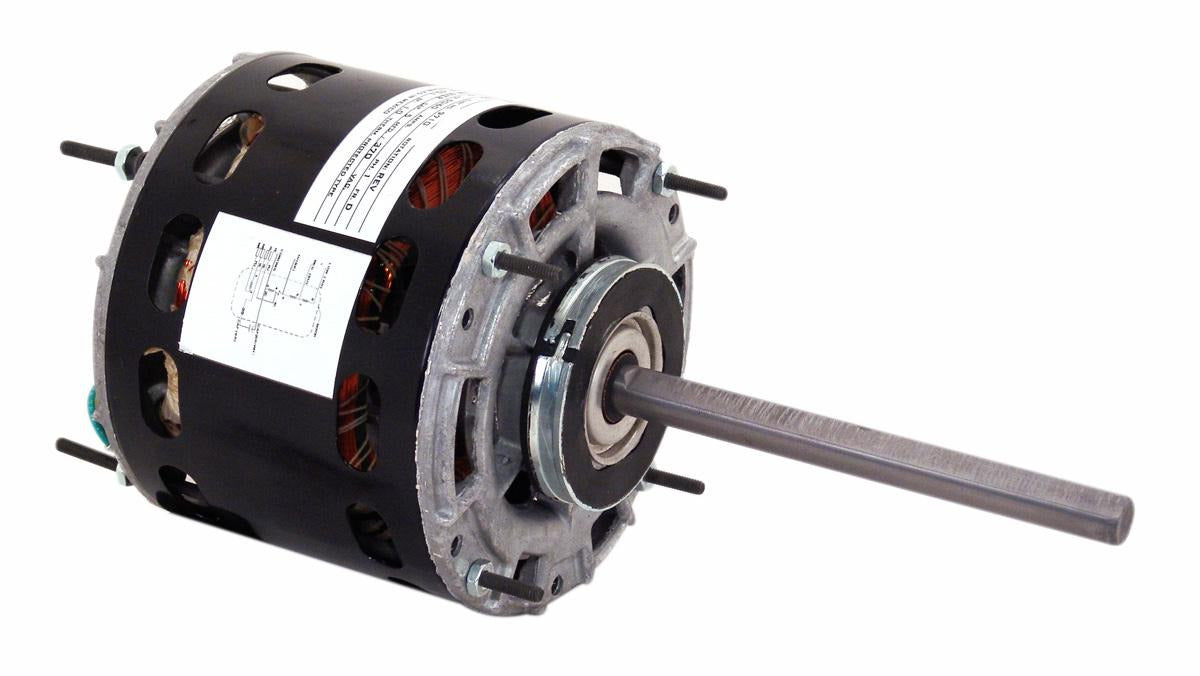

Century U9717 Fan and Blower Motor 1/4 HP 115V

Product Description

Century U9717 Fan and Blower Motor is a 1/4 HP motor suited for various HVAC applications. It operates at 115 volts with a speed of 1075 RPM.

• Electrical Type: PSC
• Frame: 42Y
• Phase: Single

Product Highlights

This durable motor is made of rolled steel and features a resilient ring mounting. It is designed for horizontal orientation and has automatic overload protection. Suitable for use in air over applications.

Product Information

Standard Information

• Brand: Century
• MPN: U9717
• Country Of Origin: Mexico

Technical Specifications

• Model Number: 9717
• Electrical Type: PSC
• Horsepower: 1/4 HP
• Kilowatts: 0.19
• RPM: 1075
• Frame: 42Y
• Enclosure: OAO
• Phase: Single
• Voltage: 115
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Amperage: 4.8
• Mounting: Resilient Ring
• Orientation: Horizontal
• Shaft Type: Flat
• Shaft Extension: 5.8
• Shaft Diameter: 0.500
• Insulation Class: B
• Service Factor: 1
• Starting Method: Across The Line
