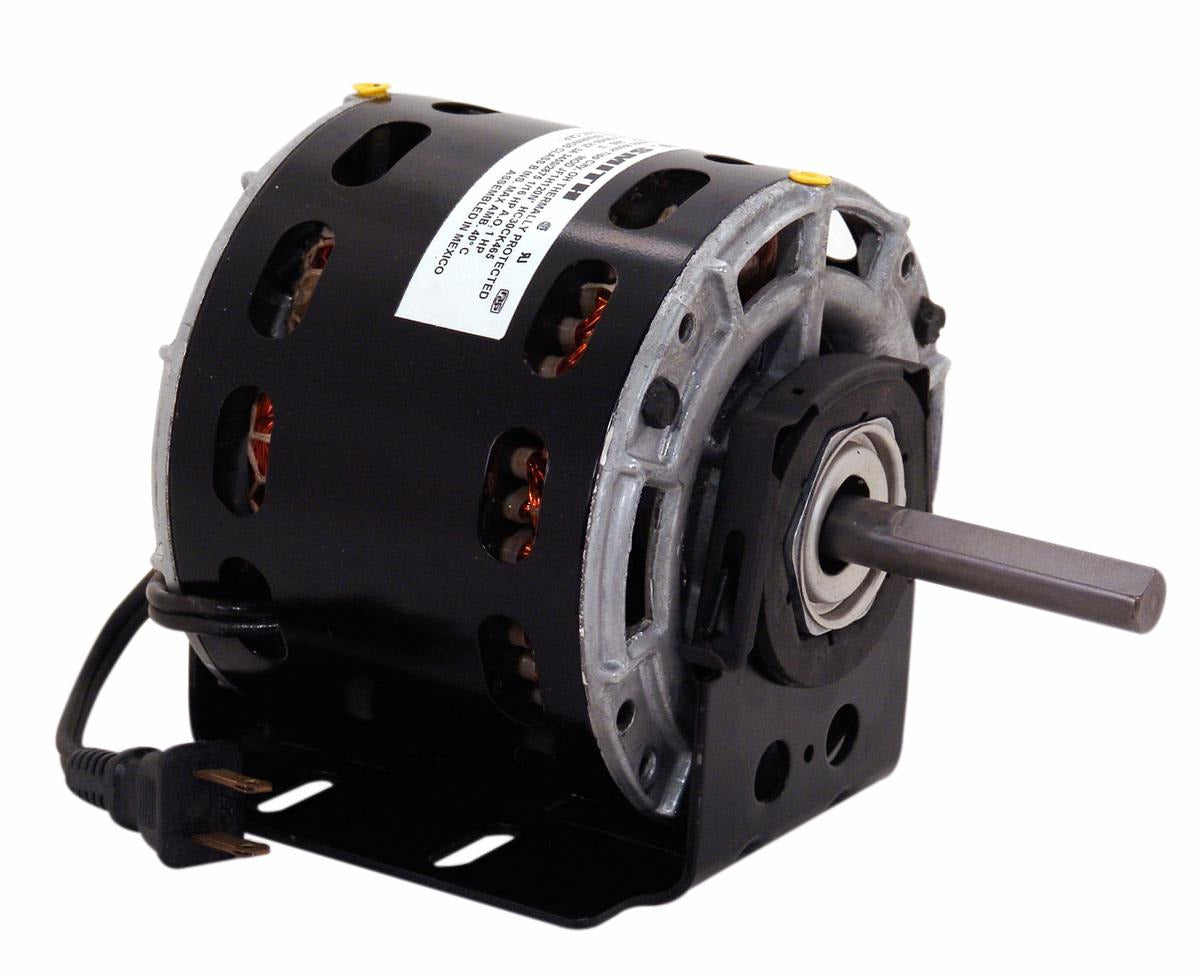

Century U9694 Ventilation Motor 1/15 HP 1000 RPM 115V

Product Description

The Century U9694 Ventilation Motor offers reliable performance for HVAC applications. This motor, with MPN U9694, ensures efficient ventilation. Its 1/15 horsepower and 1000 RPM make it suitable for various ventilation systems in the HVAC industry.

• 1/15 HP
• 1000 RPM
• 115V

Product Highlights

Perfect for HVAC applications that require a robust and efficient motor for ventilation purposes.

Product Information

Standard Information

• Brand: Century
• MPN: U9694
• UPC: 787000000000
• Country of Origin: Mexico
• Certifications: CSA, UL Recognized

Technical Specifications

• Electrical Type: Shaded Pole
• Horsepower: 1/15
• Power: 0.05 KW
• RPM: 1000
• Frame: 42Y
• Enclosure: OAO
• Phase: Single
• Voltage: 115V
• Rotation: CCWLE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve
• Mounting: Resilient Base
• Orientation: Horizontal
• Amperage: 3.2
• Shaft Type: Flat
• Shaft Extension: 3.7 inches
• Shaft Diameter: 0.375 inches
• Ambient Temperature: 40 degrees Celsius
• Insulation Class: A
• Number of Poles: 6
• Service Factor: 1
• Start Method: Across The Line
• Duty Type: Air Over
