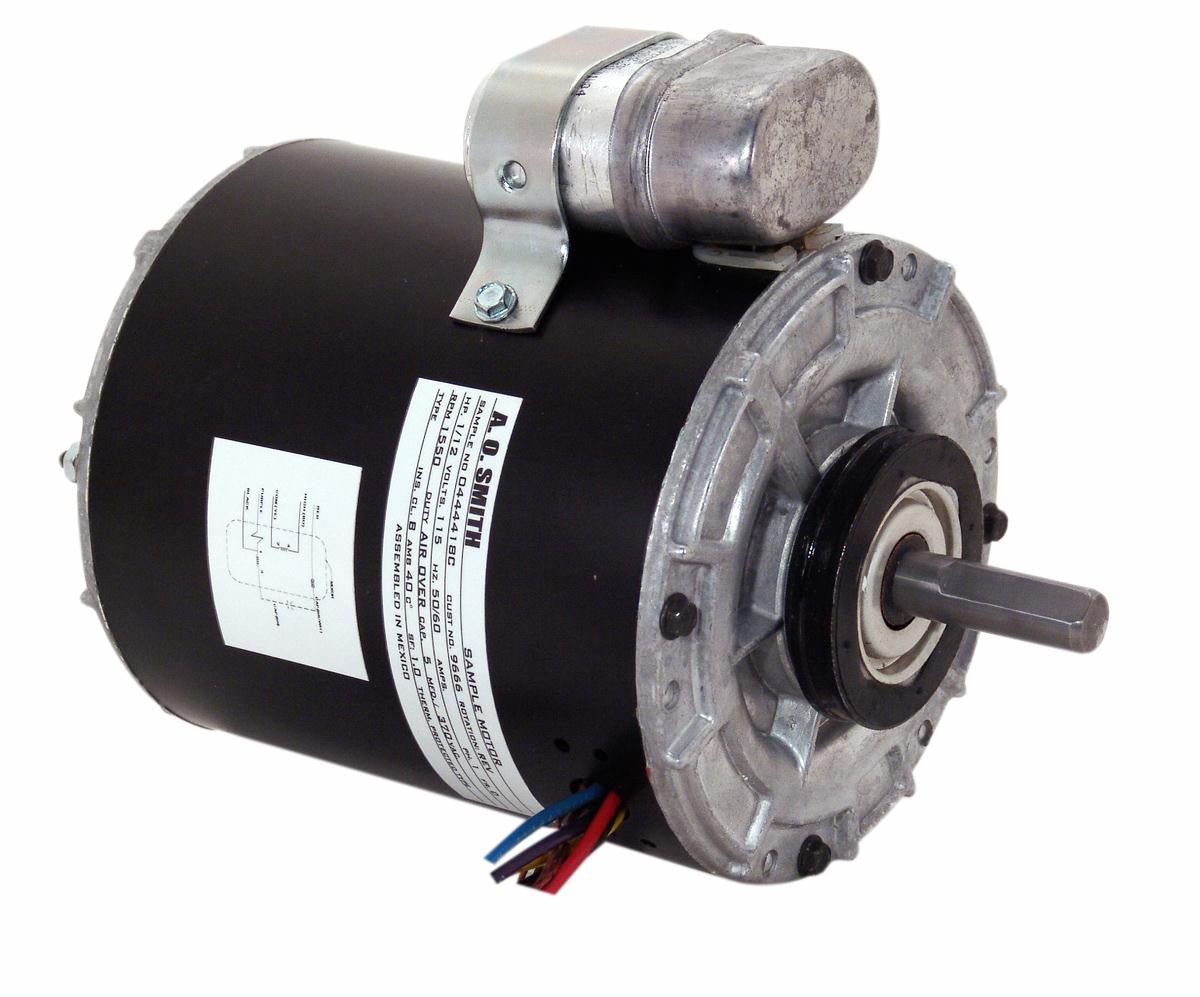

Century U9667 Refrigeration Motor 1/12 HP 115V PSC

Product Description

The Century U9667 Refrigeration Motor is a versatile motor designed for refrigeration applications. It features a 1/12 horsepower motor with a 115V power supply and is built using durable rolled steel. Suitable for horizontal mounting, this motor is equipped with sleeve bearings and operates at 1050 RPM.

• PSC electrical type
• 1/12 horsepower
• 1050 RPM

Product Highlights

This motor is designed for refrigeration use, providing reliable performance with automatic overload protection. Its compact 42Y frame and resilient ring mounting make it ideal for a variety of settings.

Product Information

Standard Information

• Brand: Century
• MPN: U9667

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/12 HP
• KW: 0.06
• RPM: 1050
• Frame: 42Y
• Enclosure: TEAO
• Phase: Single
• Voltage: 115
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve
• Mounting: Resilient Ring
• Orientation: Horizontal
• Amperage: 1.8
• Shaft Type: Flat
• Shaft Extension: 2 inches
• Shaft Diameter: 0.375 inches
• Ambient Temperature: 40 degrees Celsius
• Insulation Class: B
• Poles: 6
• Service Factor: 1.0
• Start Method: Across The Line
