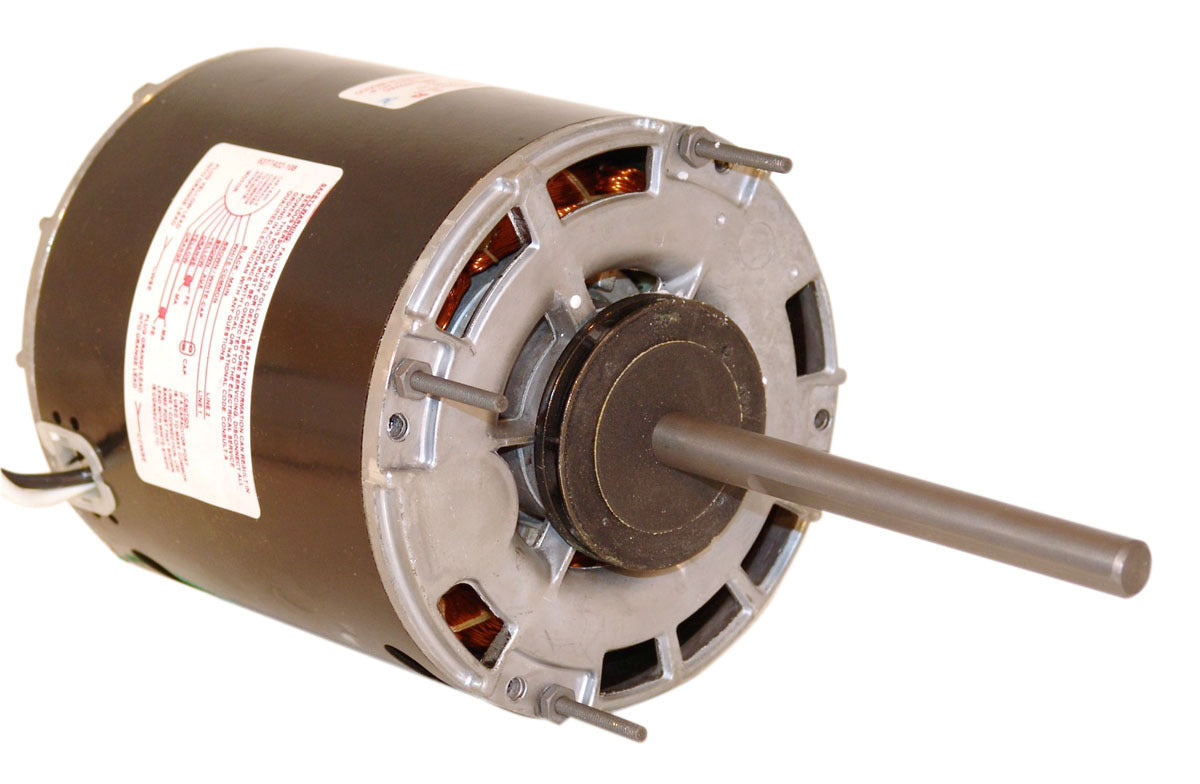

Century U9642 Fan and Blower Motor 1/5 HP 1075 RPM 42Y Frame

Product Description

The Century U9642 Fan and Blower Motor is an essential component for HVAC systems. Designed with a 1/5 HP motor, it delivers reliable performance for various fan and blower applications. The U9642 model operates at 1075 RPM, ensuring efficient airflow. This motor features a 42Y frame and is encased in durable rolled steel.

• 1/5 HP motor
• 1075 RPM speed
• 42Y frame

Product Highlights

Century U9642 is a durable and efficient fan and blower motor suitable for HVAC systems.

Product Information

Standard Information

• Brand: Century
• MPN: U9642

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/5 HP
• KW: 0.15
• RPM: 1075
• Frame: 42Y
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve
• Mounting: Resilient Ring
• Orientation: Horizontal
• Amperage: 3.3
• Shaft Type: Flat
• Shaft Extension: 6 inches
• Shaft Diameter: 0.5 inches
