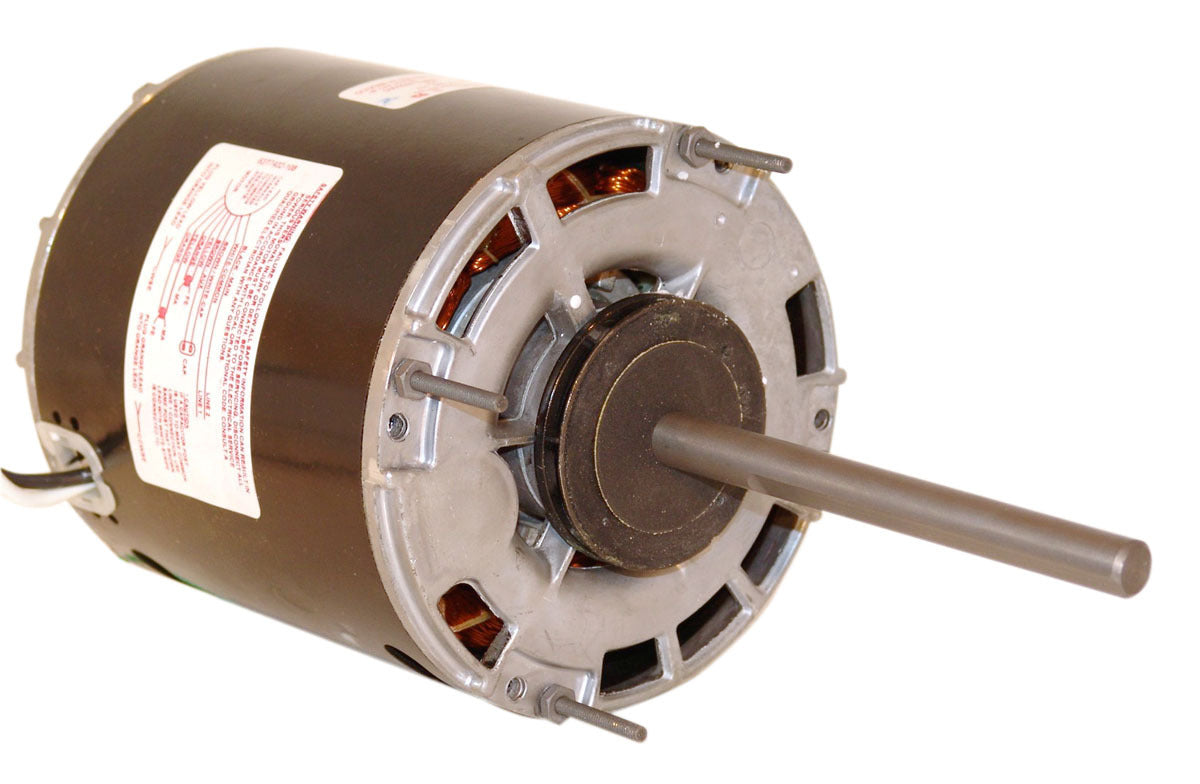

Century U9641 Fan and Blower Motor 115V 1/8HP ODP

Product Description

The Century U9641 Fan and Blower Motor is designed to provide efficient operation in various HVAC systems. Manufactured by Century, this motor boasts a 1/8 HP power, 115 volts, and runs at 1075 RPM. Built with a 42Y frame and an ODP enclosure, it ensures reliable performance.

• 1/8 Horsepower
• 115 Volts
• 1075 RPM

Product Highlights

The Century U9641 Fan and Blower Motor offers reliable and efficient operation for HVAC systems, featuring a rolled steel body and resilient mounting rings for secure installation.

Product Information

Standard Information

• Brand: Century
• MPN: U9641
• Country of Origin: Mexico
• Certification: UL Recognized, CSA

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/8
• KW: 0.1
• RPM: 1075
• Frame: 42Y
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Resilient Ring
• Orientation: Horizontal
• Amperage: 2.7
• Shaft Type: Flat
• Shaft Extension: 6.4 inches
• Shaft Diameter: 0.500 inches
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
