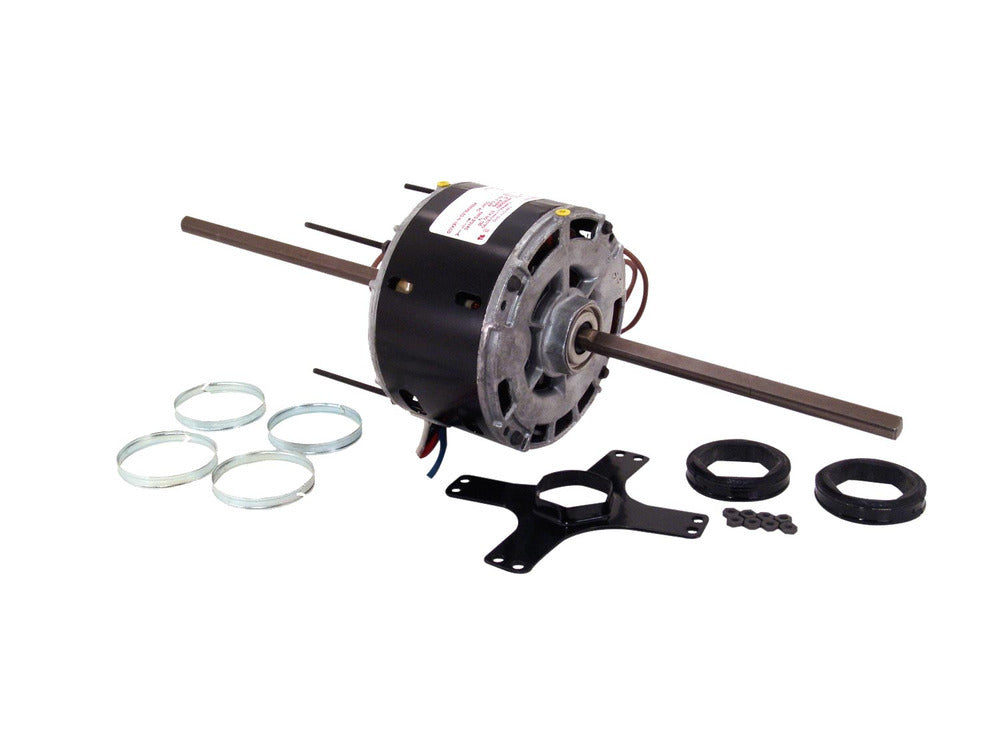

Century U9635A Fan Coil / Air Conditioner Motor 115V 1/6 HP

Product Description

The Century U9635A Fan Coil / Air Conditioner Motor is a high-efficiency motor designed for HVAC systems. It features a 1/6 Horsepower motor with an electrical type of PSC and operates at 115 Volts with a semi-enclosed enclosure. This motor has a vertical shaft orientation and automatic overload protection, making it a reliable option for various air conditioning and fan coil applications.

• 1/6 Horsepower
• 115 Volts
• PSC Electrical Type

Product Highlights

This motor is ideal for HVAC system installations, offering robust performance with its rolled steel material and sleeve bearings. It can be used in vertical shaft orientations and provides consistent power due to its single phase and automatic overload protection features.

Product Information

Standard Information

• Brand: Century
• MPN: U9635A
• Model: Fan Coil / Air Conditioner Motor
• Country of Origin: Mexico

Technical Specifications

• HP: 1/6
• Voltage: 115
• Amperage: 1.92/1.05/0.80
• RPM: 1625
• Phase: Single
• Enclosure: Semi-Enclosed
• Frame: 48Y
• Overload Protection: Auto
• Bearings Type: Sleeve
• Mounting: Extended Studs
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 8.5 x 0.5 x 8.4 inches
• Material: Rolled Steel
