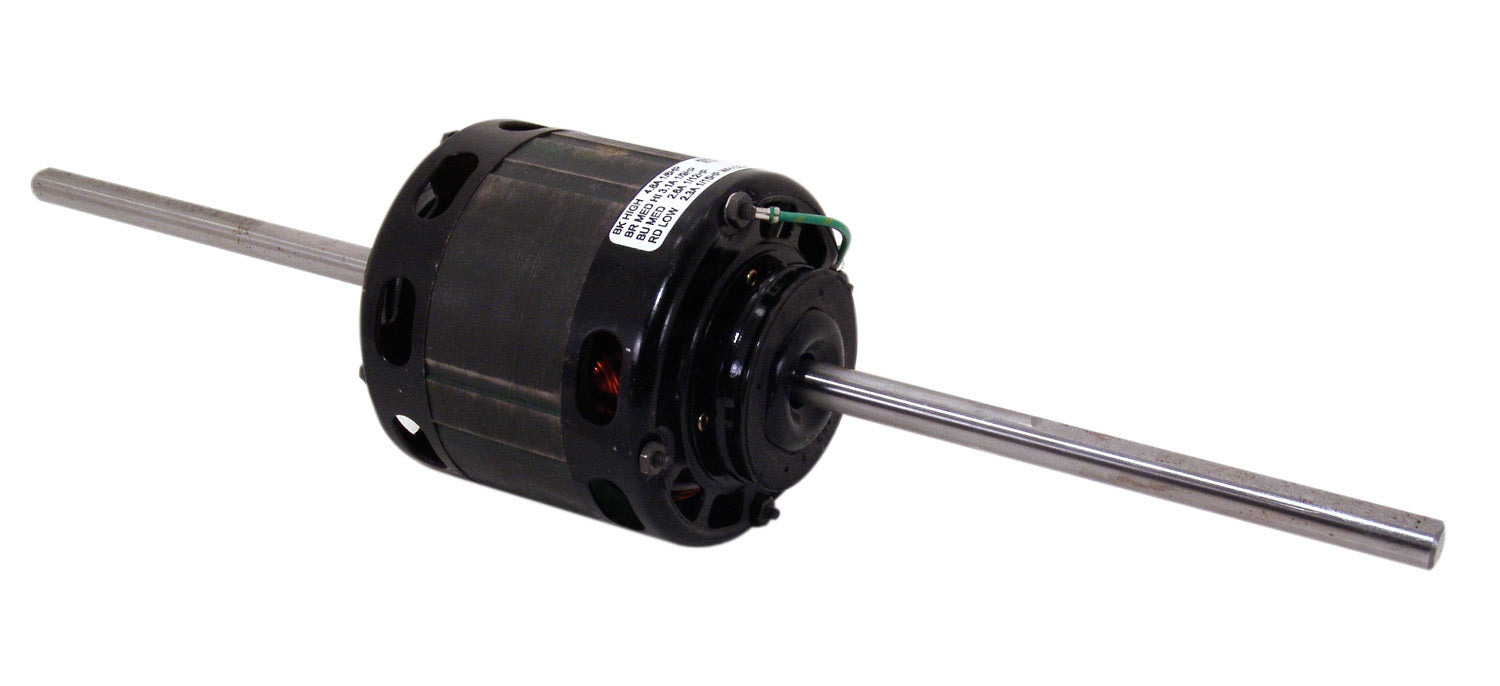

Century U9484 OEM Replacement Motor 1/15 HP 208-230V

Product Description

The Century U9484 OEM Replacement Motor is a single-phase motor designed for HVAC applications. It is engineered to run at 1050 RPM with a power rating of 1/15 HP. The motor operates efficiently at 208-230 volts and is made from durable rolled steel material.

• PSC electrical type
• Auto overload protection
• Ball bearings

Product Highlights

This motor features a resilient ring mounting and is suitable for horizontal orientation. It has a flat shaft type with a 3/8 inch diameter and a 2 1/2 inch extension. The motor’s enclosure is an open air design (OAO) which ensures optimal cooling.

Product Information

Standard Information

• Brand: Century
• MPN: U9484

Technical Specifications

• Electrical Type: PSC
• HP: 1/15
• KW: 0.05
• RPM: 1050
• Diameter: 4.4
• Enclosure: OAO
• Phase: Single
• Voltage: 208-230
• Rotation: CWLE
• Overload Protector: Auto
• Material: Rolled Steel
• Speeds: 1
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting Type: Resilient Rings
• Orientation: Horizontal
• Amperage: 0.6
• Shaft Type: Flat
• Shaft Extension: 3/8 x 2 1/2
• Ambient Temperature: 40 degrees C
• Duty: Continuous Air Over
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
• Shaft Diameter: 0.375
