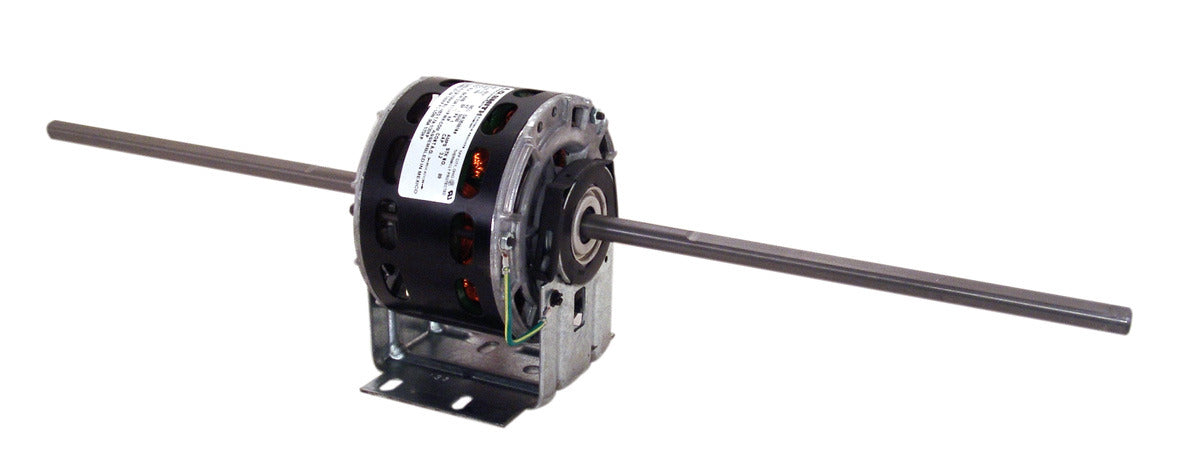

Century U9474 Fan Coil Air Conditioner Motor 0.05 KW 115 Volt

Product Description

The Century U9474 Fan Coil Air Conditioner Motor is designed for reliable performance in HVAC systems. It features a power capacity of 0.05 KW and operates at 115 volts.

• 115 volts
• 1/15 HP
• 1075 RPM

Product Highlights

This motor is built for fan coil and air conditioner applications. It is durable, with a rolled steel construction and a resilient base mounting.

Product Information

Standard Information

• Brand: Century
• MPN: U9474
• Voltage: 115
• Power: 0.05 KW
• HP: 1/15
• RPM: 1075

Technical Specifications

• Frame: 42Y
• Enclosure: OAO
• Phase: Single
• Rotation: CCWLE
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Resilient Base
• Orientation: Horizontal
• Amperage: 1.2/0.8/0.7/0.6
• Shaft Type: Flat
• Shaft Extension: 11.000 x 0.500 x 11.000
• Shaft Diameter: 0.500
• Speeds: 4
• Service Factor: 1
• Ambient Temperature: 40 C
• Insulation Class: B
• Poles: 6
• Duty: Continuous Air Over
• Start Method: Across The Line
