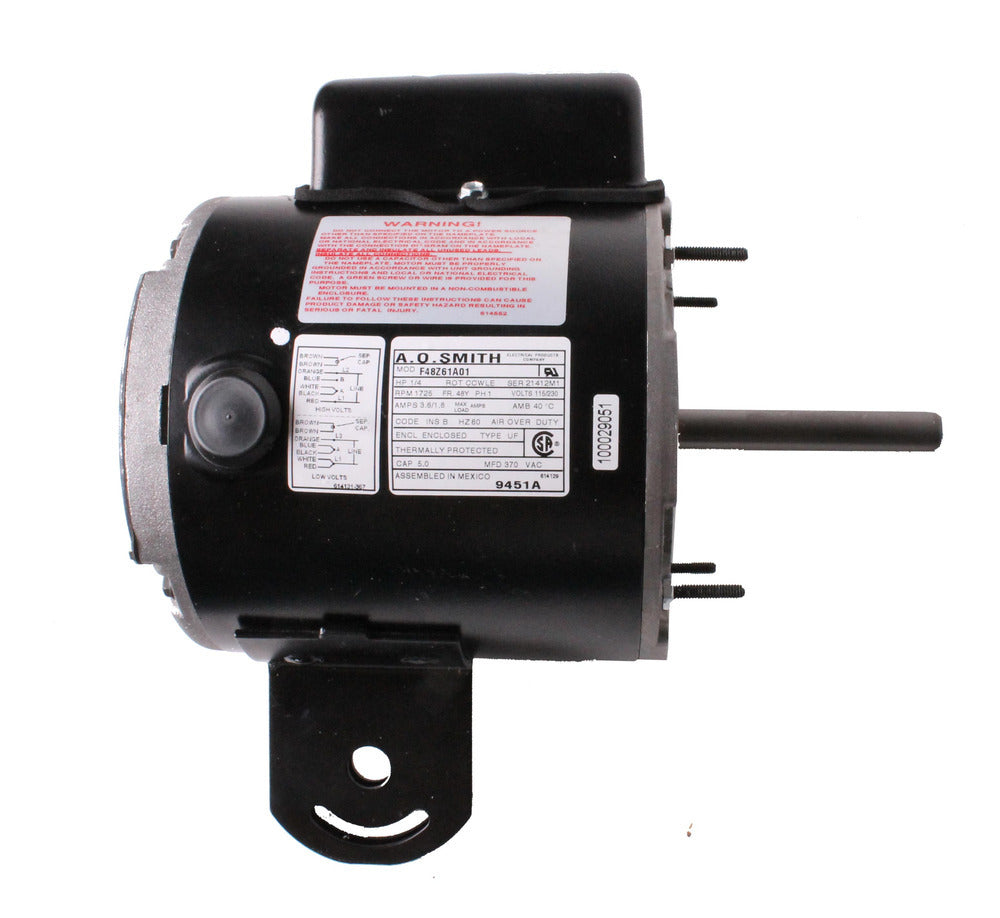

Century U9451A Pedestal Fan Motor 1/4 HP CCWLE Single Phase

Product Description

The Century U9451A Pedestal Fan Motor is designed to provide reliable performance in HVAC applications. This motor features a 1/4 horsepower (HP) rating and operates at 1725 RPM, delivering consistent and efficient operation. The motor is encased in a rolled steel enclosure and utilizes ball bearings for smooth functionality.

• 1/4 HP power
• 1725 RPM
• 115/230 volts

Product Highlights

The Century U9451A is equipped with an automatic overload protector and is suitable for various uses in the HVAC industry, making it a versatile and essential component for trade professionals.

Product Information

Standard Information

• Brand: Century
• MPN: U9451A

Technical Specifications

• Electrical Type: PSC
• HP: 1/4
• KW: 0.19
• RPM: 1725
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115/230
• Rotation: CCWLE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Yoke
• Amperage: 3.6/1.8
• Shaft Type: Double Flat
• Shaft Extension: 3.3 inches
• Shaft Diameter: 0.5 inches
• Duty: Continuous Air Over
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• Country of Origin: Mexico
