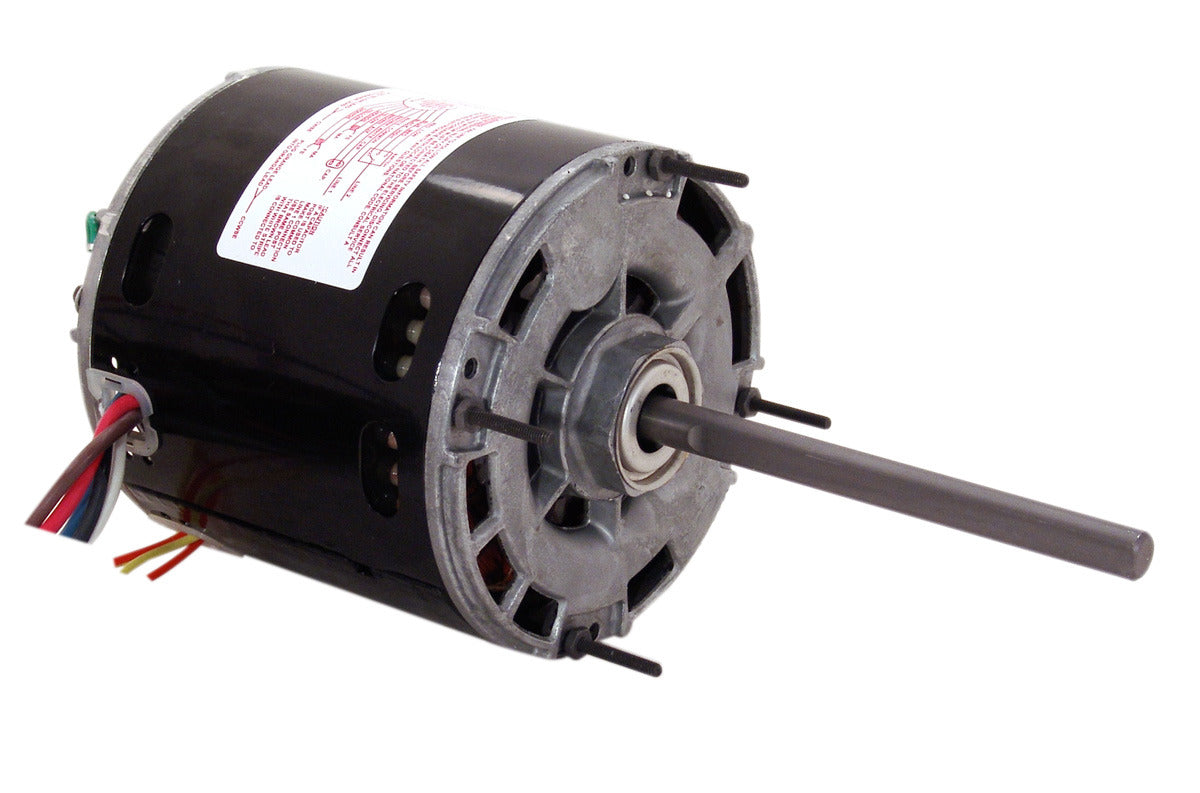

Century U9442 Fan and Blower Motor 1/4 HP 1050 RPM 277V

Product Description

The Century U9442 Fan and Blower Motor provides reliable performance for HVAC applications. It features a permanent split capacitor (PSC) design with 1/4 HP. This motor runs at 1050 RPM and operates on a single phase, 277V power supply. Designed for horizontal mounting, it has a rolled steel frame and resilient ring/extended studs.

• 1/4 HP motor with 1050 RPM
• 277V single phase power supply
• Horizontal orientation with resilient ring/extended studs

Product Highlights

This motor is suitable for various HVAC systems. With automatic overload protection and durable sleeve bearings, it ensures longevity and efficiency.

Product Information

Standard Information

• Brand: Century
• MPN: U9442

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/4 HP
• KW: 0.19
• RPM: 1050
• Frame: 42
• Enclosure: OAO
• Phase: Single
• Voltage: 277
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Resilient Ring/Extended Studs
• Orientation: Horizontal
• Amperage: 1.5, 1.2, 1.0, 0.8
• Shaft Type: Flat
• Shaft Extension: 6 inches
• Shaft Diameter: 0.500 inches
• Ambient Temperature: 40°C
• Speeds: 4
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
