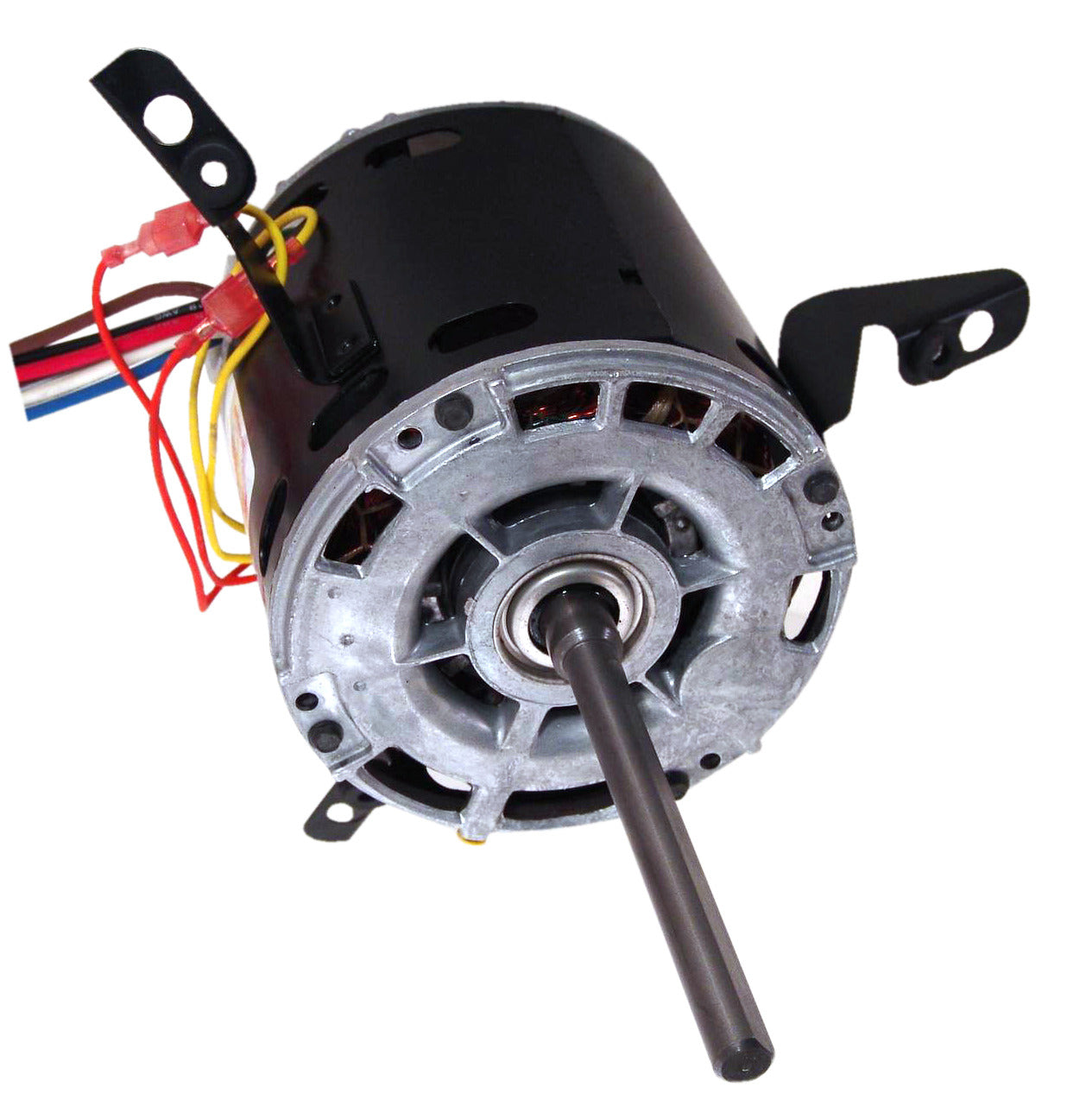

Century U9433 Fan Coil Air Conditioner Motor 1/3 HP 277V

Product Description

The Century U9433 Fan Coil Air Conditioner Motor is a versatile motor designed for various HVAC applications. It features a 1/3 horsepower PSC motor, providing reliable performance for air conditioning systems.

• 1/3 horsepower
• 277 volts
• 1075 RPM

Product Highlights

This motor is ideal for fan coil and air conditioner applications. It operates efficiently at 1075 RPM with a single-phase voltage of 277 volts. It includes an auto overload protector and is made from durable rolled steel.

Product Information

Standard Information

• Brand: Century
• MPN: U9433
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/3
• KW: 0.25
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 277
• Rotation: REV
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve/Sleeve
• Bearings SE Type: Sleeve
• Bearings OSE Type: Sleeve
• Mounting: Flexible Arms
• Orientation: Horizontal
• Amperage: 1.9, 1.4, 0.9
• Shaft Type: Flat
• Shaft Extension: 5.500 inches
• Shaft Diameter: 0.500 inches
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
• Duty: Air Over
