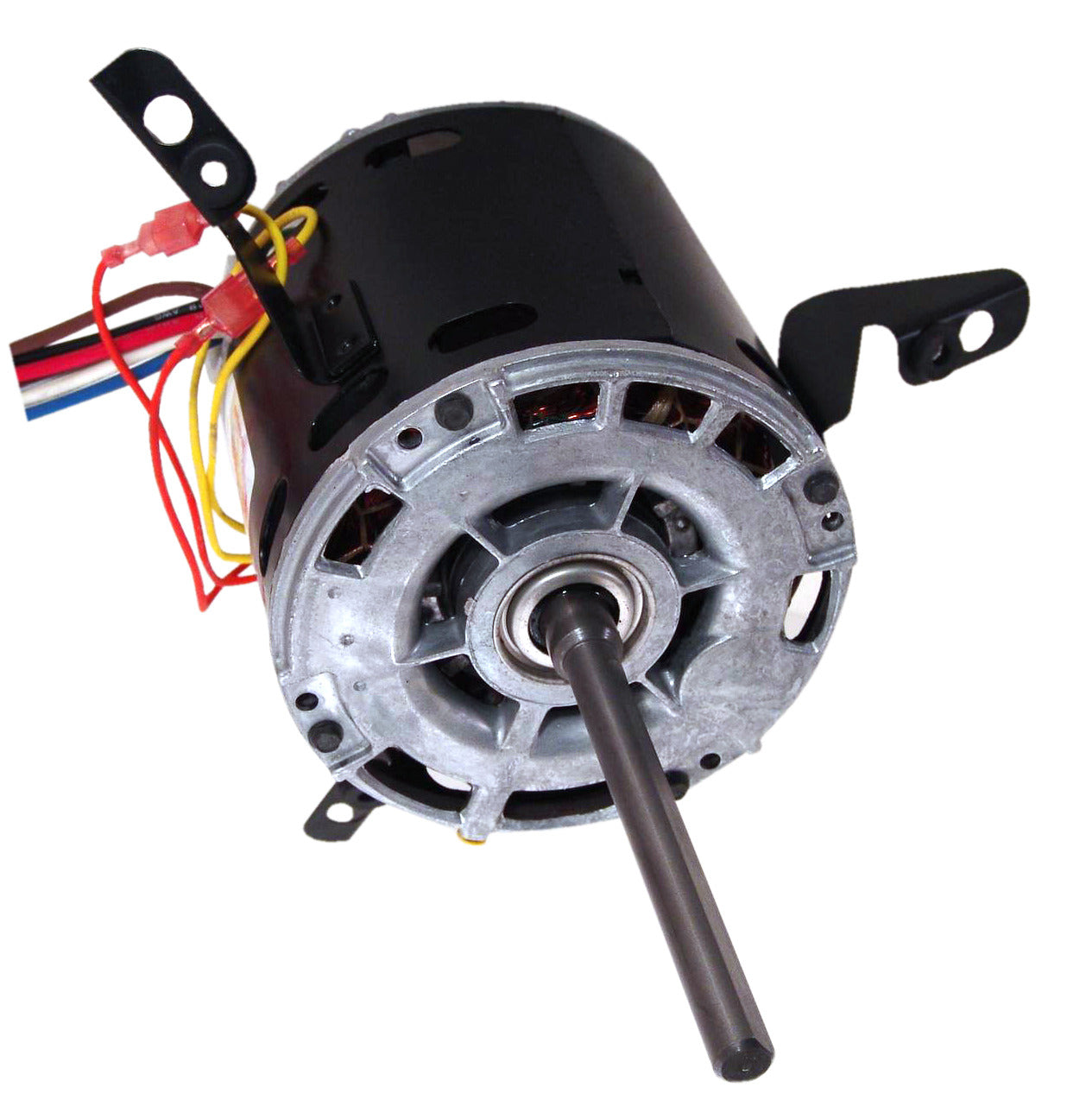

Century U9432 Fan Coil / Air Conditioner Motor 1/4 HP 277V

Product Description

The Century U9432 Fan Coil / Air Conditioner Motor is designed with a PSC electrical type and provides 1/4 HP with a single-phase operation at 277 volts. It offers a high level of efficiency with an RPM of 1075.

• Highly efficient PSC type motor
• 1/4 HP power output
• Single-phase and 277 volts operation

Product Highlights

The Century U9432 motor is excellent for fan coil and air conditioner applications, providing reliable 1/4 HP power and supporting up to 1075 RPM. The ODP enclosure and ball bearings ensure a durable and dependable performance.

Product Information

Standard Information

• Brand: Century
• MPN: U9432
• Model: 9432A

Technical Specifications

• Electrical Type: PSC
• HP: 1/4
• KW: 0.19
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 277
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Bearing SE Type: Ball
• Bearing OSE Type: Ball
• Mounting: Lug Bracket
• Orientation: Horizontal
• Amperage: 1.2, 0.75, 0.55
• Shaft Type: Flat
• Shaft Extension: 5.500 inches
• Shaft Diameter: 0.500 inches
• Ambient Temperature: 60 degrees Celsius
• Duty: Air Over
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
• Frame Size: 48
• Weight: 16 lbs
• Dimensions: 17 inches (L) x 15 inches (W) x 15 inches (H)
• Country of Origin: Mexico
