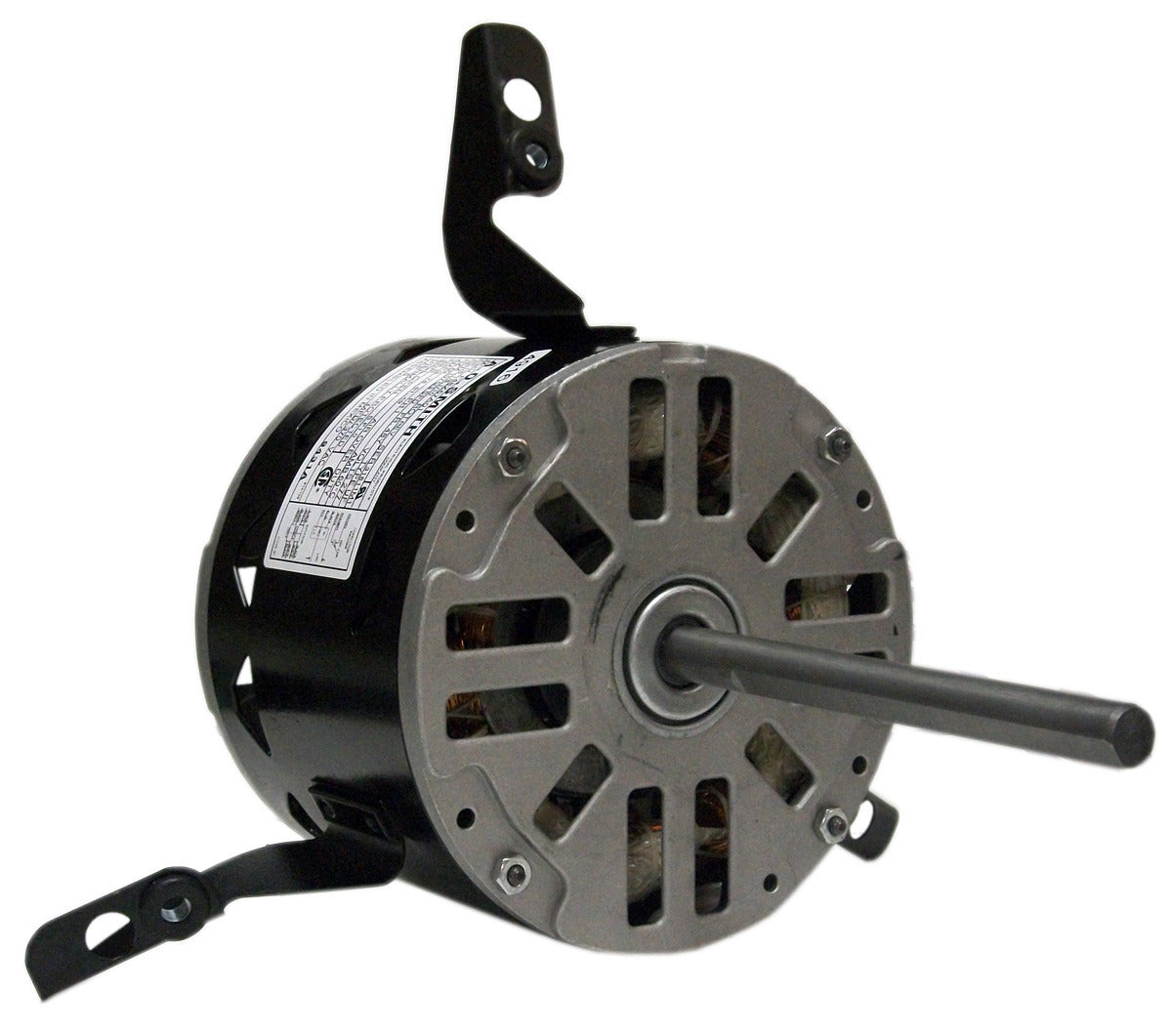

Century U9431A Fan Coil / Air Conditioner Motor 1/6 HP (Single Phase) Replacement

Product Description

The Century U9431A is a fan coil and air conditioner motor designed for efficient operation. This motor operates at a power of one-sixth horsepower and can handle a voltage of two hundred seventy-seven volts. The motor features a PSC electrical type with a maximum speed of one thousand seventy-five RPM.

• Effective airflow with a design optimized for HVAC applications
• Constructed with rolled steel, ensuring durability
• Equipped with automatic overload protection

Product Highlights

This motor is designed for horizontal mounting and includes a lug bracket for easy installation, making it suitable for various HVAC systems.

Product Information

Standard Information

• Brand: Century
• MPN: U9431A

Technical Specifications

• HP: 1/6
• KW: 0.13
• RPM: 1075
• Frame Size: 48Y
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 277 volts
• Rotation: REV
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Ball
• Mounting Type: Lug Bracket
• Orientation: Horizontal
• Amperage: .78, .61, .49 A
• Shaft Type: Flat
• Shaft Extension: 5.500 inches
• Shaft Diameter: 0.500 inches
