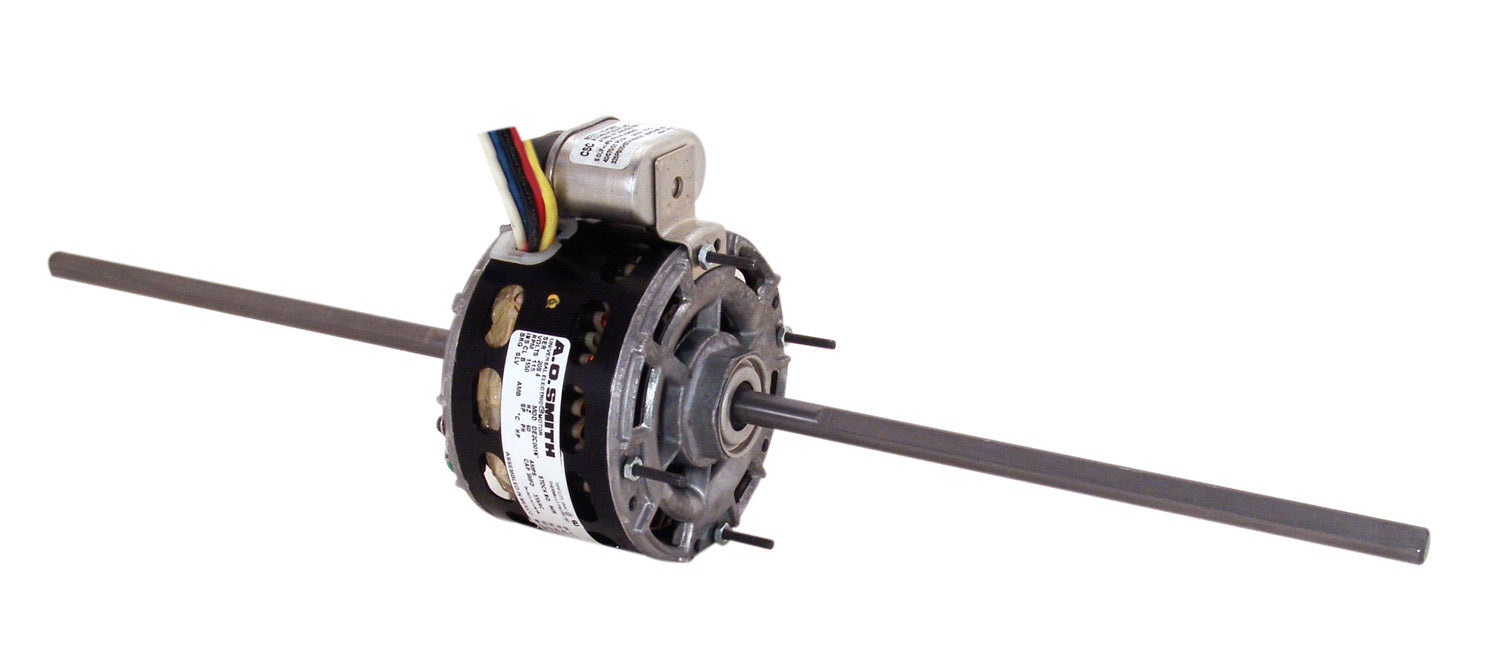

Century U9408 Fan Coil / Air Conditioner Motor 1/8 HP 115 Voltage

Product Description

The Century U9408 Fan Coil / Air Conditioner Motor is designed for use in HVAC systems. This motor is ideal for trade professionals seeking reliable and efficient motor solutions.

• 1/8 HP power output
• 1550 RPM rotation speed
• 115 voltage single phase

Product Highlights

This PSC motor is built with rolled steel and features an automatic overload protector. It operates at 115 volts and has a power rating of 1/8 HP. The motor rotates clockwise and is mounted using extended studs.

Standard Information

• Brand: Century
• MPN: U9408
• Model: 9408
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: PSC
• HP: 1/8
• KW: 0.1
• RPM: 1550
• Frame: 42
• Enclosure: OAO
• Phase: Single
• Voltage: 115
• Rotation: CWLE
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Bearings SE Type: Sleeve
• Bearings OSE Type: Sleeve
• Mounting: Extended Studs
• Orientation: Horizontal
• Amperage: 2.1
• Shaft Type: Flat
• Shaft Extension: 10.375 inches
• Shaft Diameter: 0.500 inches
• Duty: Continuous Air Over
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• Start Method: Across The Line
• Length: 25.88 inches
• Width: 8.81 inches
• Height: 8.81 inches
