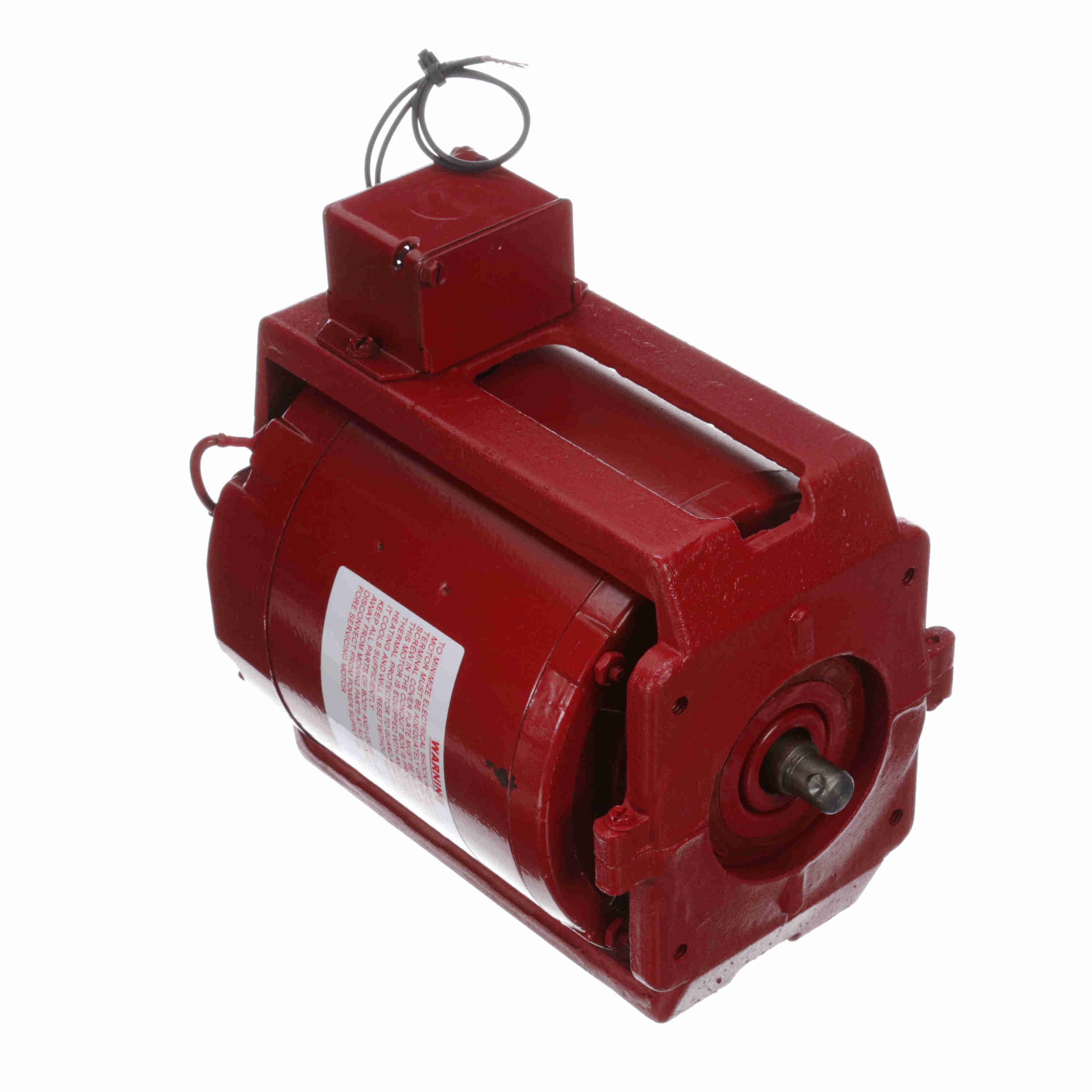

Century U939L Circulator Pump Motor 115V 1 Phase HP 1/12 1725 RPM

Product Description

The Century U939L Circulator Pump Motor is designed for efficient operation in HVAC systems. It features automatic reset thermal protector and is suitable for one phase applications.

• Split Phase Electrical Type
• 1/12 HP with 0.06 KW
• Rolled Steel Material

Product Highlights

This motor is ideal for HVAC circulatory applications, offering reliable performance with a counterclockwise rotation and sleeve bearings for smooth operation.

Product Information

Standard Information

• Brand: Century
• MPN: U939L
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Split Phase
• Horsepower: 1/12
• KW: 0.06
• RPM: 1725
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: Open Drip Proof
• Phase: 1
• Voltage: 115
• Rotation: Counterclockwise
• Overload Protector: Automatic
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Resilient Base
• Amperage: 2.5
• Shaft Type: Spot Drill
• Shaft Extension: 7.76 inches
• Shaft Diameter: 0.5 inches
• Frequency: 60 Hz
• Insulation Class: B
• Service Factor: 1
• Start Method: Across The Line
• Duty: Continuous
• Certification CSA: Yes
• Certification UL: Recognized
