CENTURY MOTORS U917L Split Phase Motor

Product Description

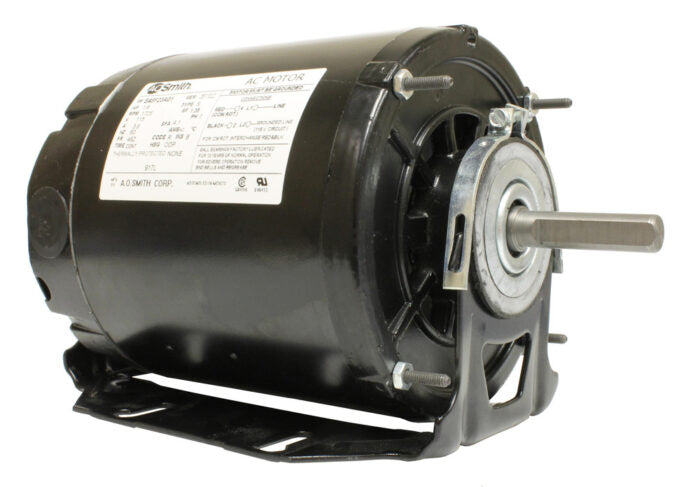

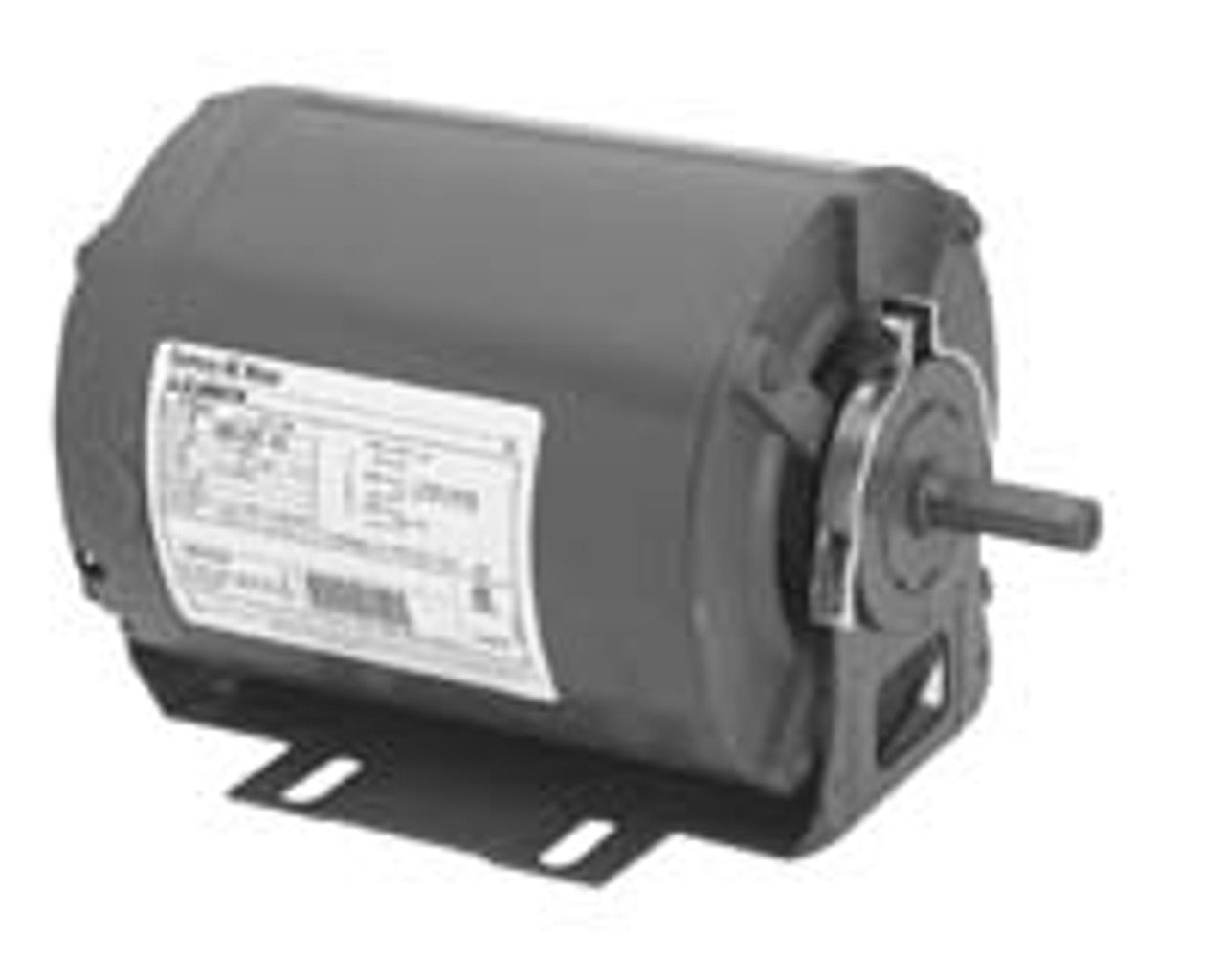

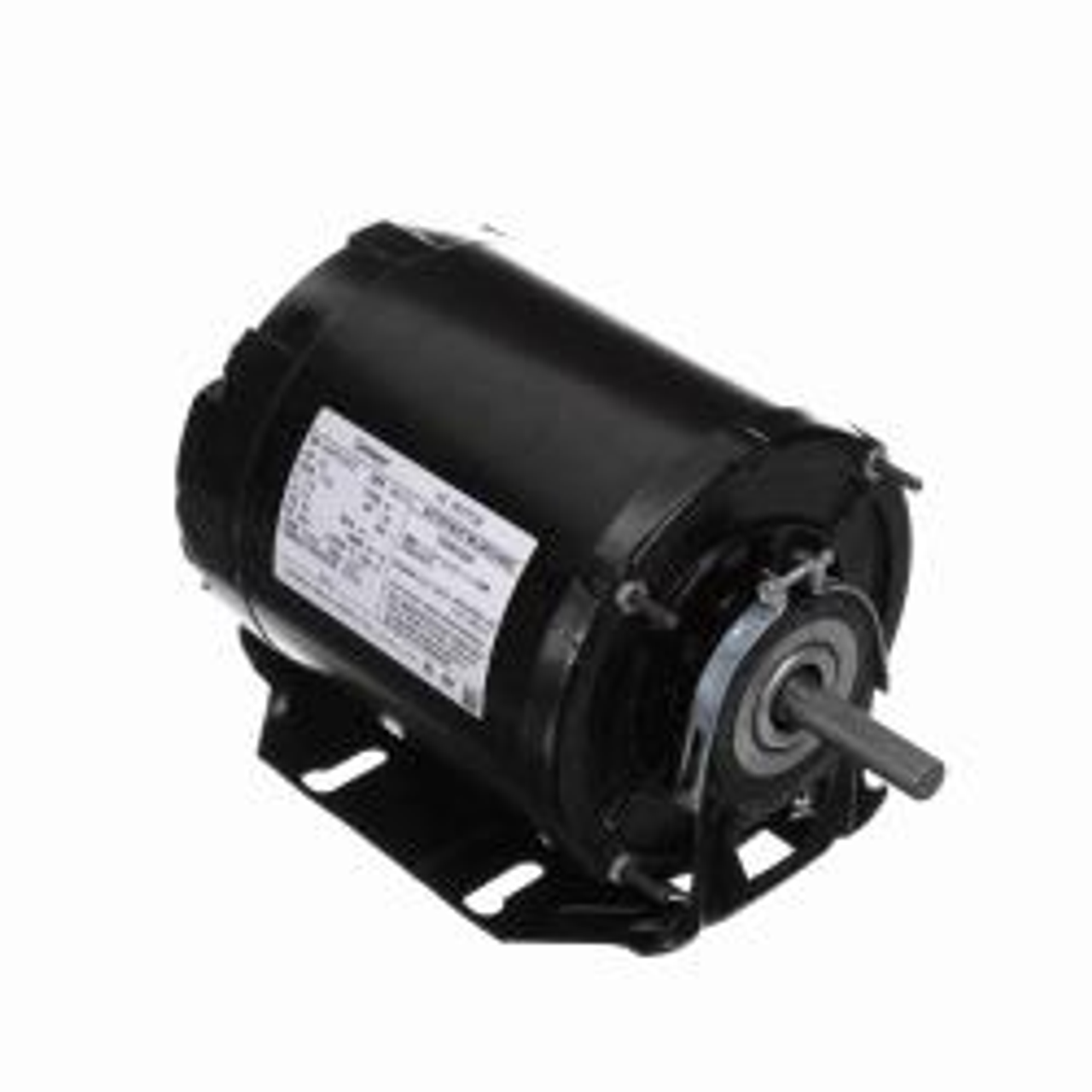

The CENTURY MOTORS U917L is a split phase motor designed for various applications, including centrifugal pumps, blowers, and fans. This motor features a robust rolled steel enclosure and is made for continuous operation. With a speed of one thousand seven hundred twenty-five revolutions per minute, it allows for reversible operation and is equipped with ball bearings and Class B insulation.

• Electrical split phase motor for reliable performance.
• Open drip proof or totally enclosed non-ventilated casing.
• Ideal for centrifugal pumps, blowers, and fans.

Product Highlights

This motor is built for durability and efficient performance in demanding environments.

Product Information

Standard Information

• Manufacturer Part Number: U917L
• Electrical Type: Split phase

Technical Specifications

• Phase: Single
• Input Voltage: 115V
• Frame Size: 48Z
• Enclosure: Open Drip Proof (ODP)
• Material: Rolled steel
• Horsepower: 1/3 HP
• Rotation: Reversible
• RPM: 1725
• Number of Speeds: 1
• Full Load Amps: 4.6
• Service Factor: 1.00
• Bearing: Ball Bearing
• Design: Totally Enclosed Non-Ventilated (TENV)
• Frequency: 60 Hz
• Insulation Class: B
• Duty: Continuous
