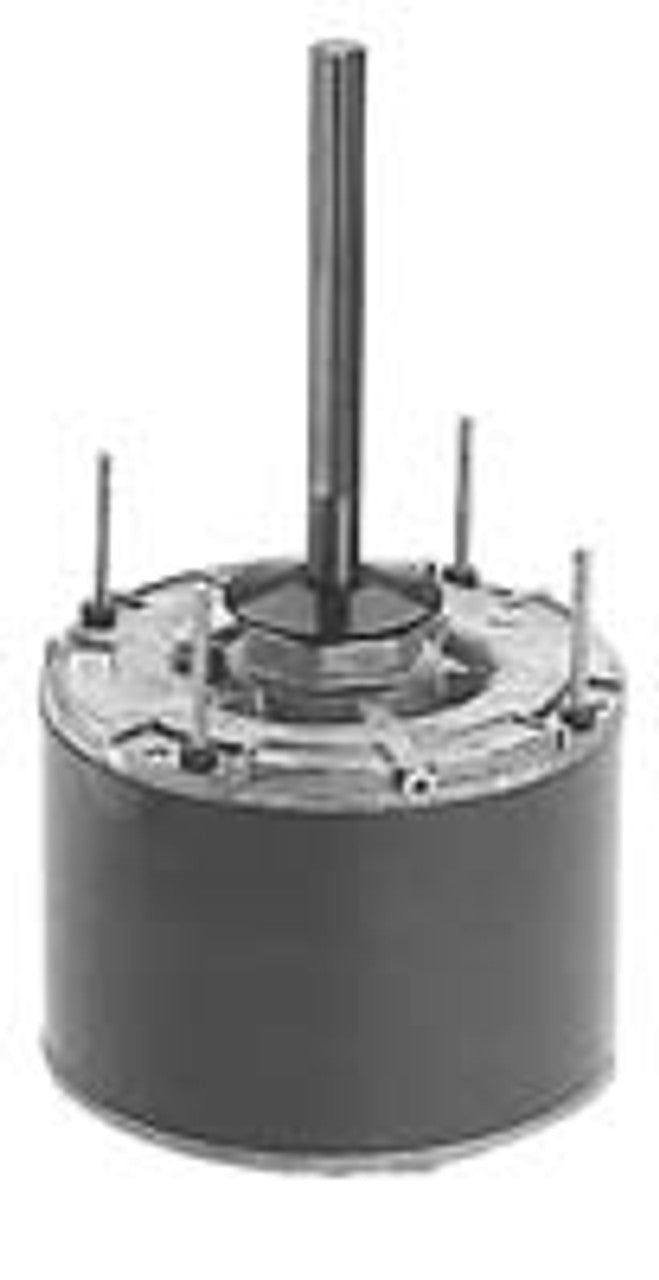

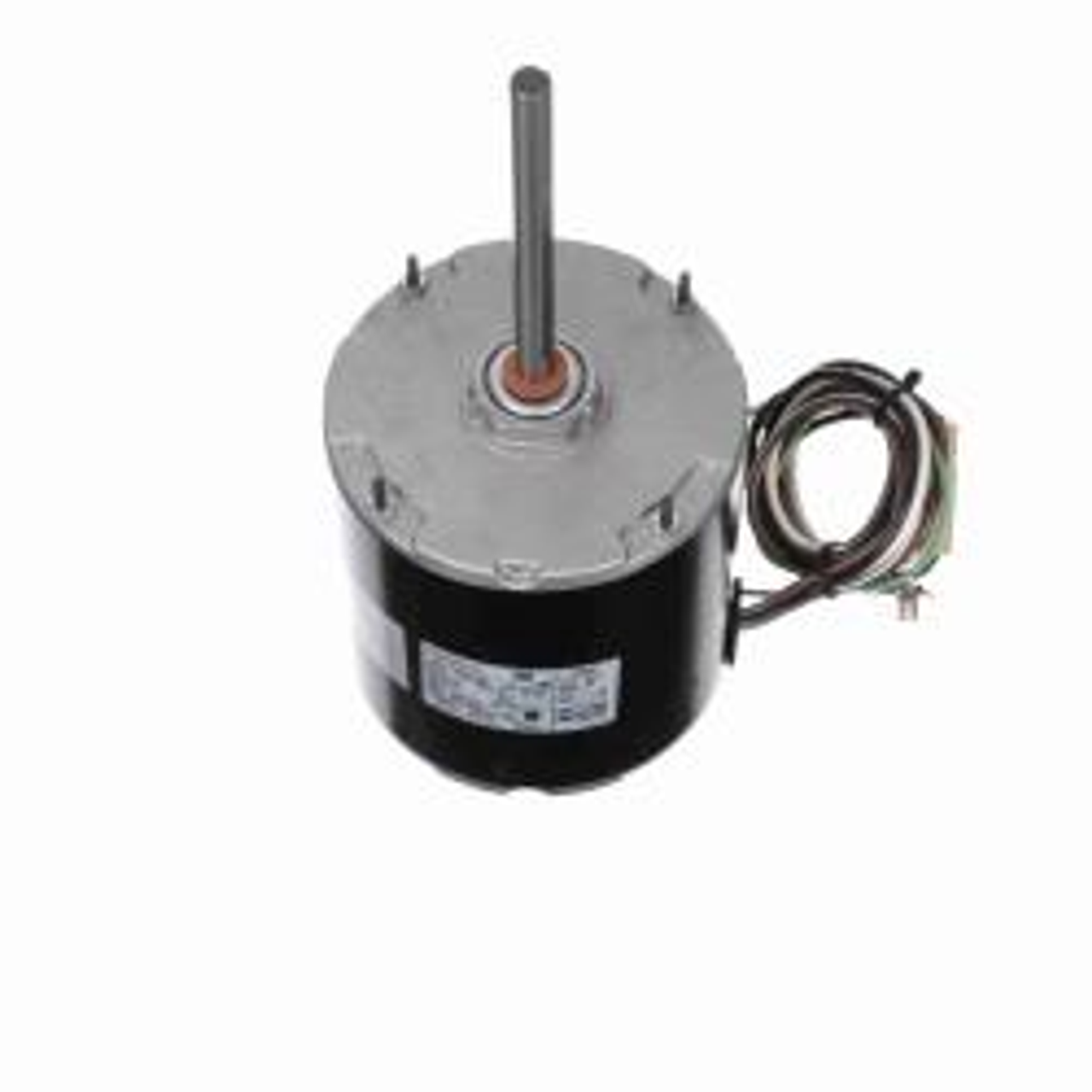

CENTURY MOTORS U792 Electric Motor 350 HP / 3/4 HP
Availability:
In Stock
Ships same day if ordered by 12 pm
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
- $355.74
- $355.74
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product DescriptionThe CENTURY MOTORS U792 is an electric motor designed for industrial applications. This motor comes in two configurations: a three hundred fifty horsepower general-purpose motor for continuous duty and a three-quarter horsepower condenser fan motor for air-over applications. Both configurations operate at four hundred sixty volts.
- Suitable for horizontal mounting (350HP configuration)
- Features reversible rotation (350HP configuration)
- Designed for continuous duty
Product Highlights
The CENTURY MOTORS U792 is versatile and robust, making it suitable for a range of applications in HVAC and industrial processes.Product Information
Standard Information
-
Brand: CENTURY MOTORS
-
MPN: U792
Technical Specifications
-
Horsepower: 350 HP / 3/4 HP
-
Output KW: 260.0 kW
-
Speed: 1785 RPM / 1075 RPM
-
Frequency: 60 Hz
-
Input Voltage: 460 V
-
Input Current: 395.0 A / 2.6 A
-
Service Factor: 1.15 / 1.0
-
Phase: 3
-
Efficiency: 95.8 %
-
Power Factor: 87
-
Duty: Continuous
-
Insulation Class: F / B
-
Drive End Bearing Size: 6318
-
Opp Drive End Bearing Size: 6314
-
Frame Size: 447T / 48 (5-5/8 Dia.)
-
Enclosure: Drip Proof
-
Motor Orientation: Horizontal
-
Overall Length: 43.29 in
-
Frame Length: 24.38 in
-
Shaft Diameter: 3.375 in / 1/2 Dia.
-
Shaft Extension: 8.75 in
- Suitable for horizontal mounting (350HP configuration)
- Features reversible rotation (350HP configuration)
- Designed for continuous duty
Product Highlights
The CENTURY MOTORS U792 is versatile and robust, making it suitable for a range of applications in HVAC and industrial processes.Product Information
Standard Information
- Brand: CENTURY MOTORS
- MPN: U792
Technical Specifications
- Horsepower: 350 HP / 3/4 HP
- Output KW: 260.0 kW
- Speed: 1785 RPM / 1075 RPM
- Frequency: 60 Hz
- Input Voltage: 460 V
- Input Current: 395.0 A / 2.6 A
- Service Factor: 1.15 / 1.0
- Phase: 3
- Efficiency: 95.8 %
- Power Factor: 87
- Duty: Continuous
- Insulation Class: F / B
- Drive End Bearing Size: 6318
- Opp Drive End Bearing Size: 6314
- Frame Size: 447T / 48 (5-5/8 Dia.)
- Enclosure: Drip Proof
- Motor Orientation: Horizontal
- Overall Length: 43.29 in
- Frame Length: 24.38 in
- Shaft Diameter: 3.375 in / 1/2 Dia.
- Shaft Extension: 8.75 in
