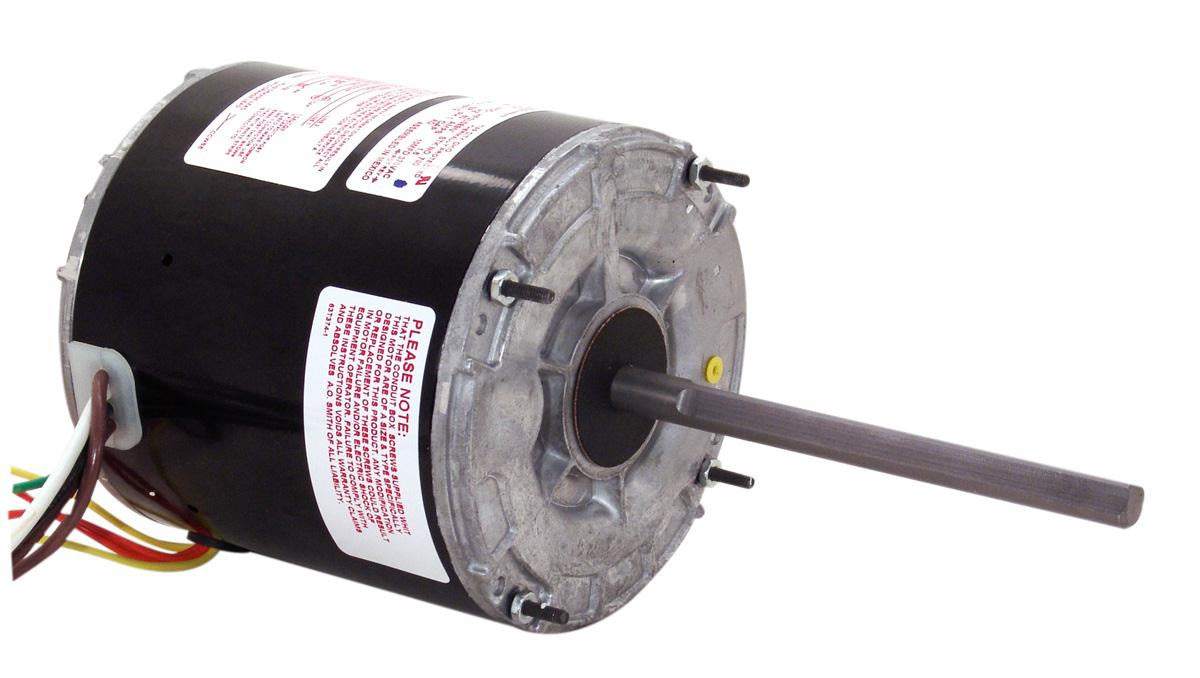

Century U790 Condenser Fan Motor 1/2 HP 460V

Product Description

The Century U790 is a reliable condenser fan motor designed for HVAC applications. This motor features an electrical type of PSC and operates at half a horsepower, making it suitable for various air conditioning systems. It has a rotation direction of reverse and a voltage rating of four hundred sixty volts. The motor is designed with an enclosure type of TEAO and comes with automatic overload protection.

• Electrical Type: PSC
• Power: 1/2 HP
• Voltage: 460V

Product Highlights

The Century U790 provides consistent performance with a maximum RPM of one thousand seventy-five. Its rolled steel construction ensures durability, while ball bearings reduce friction for efficient operation.

Product Information

Standard Information

• Frame Size: 48Y
• Shaft Type: Double Flat

Technical Specifications

• Diameter: 5.6 inches
• Amperage: 1.5 A
• Shaft Diameter: 0.500 inches
• Mounting: Extended Studs
• Ambient Temperature Rating: 60°C
• Insulation Class: B
• Service Factor: 1
