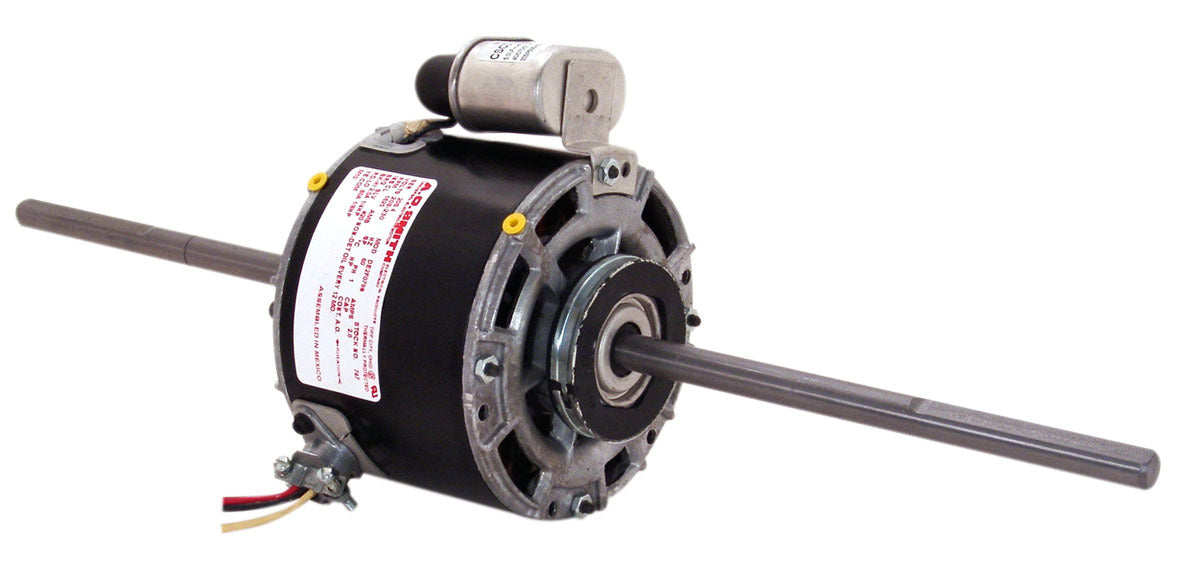

Century U747 OEM Replacement Motor Shaded Pole 1/4 HP 208-230V

Product Description

The Century U747 OEM Replacement Motor is designed for HVAC applications. This motor, with MPN U747, delivers reliable and efficient performance in demanding environments.

• Shaded Pole Electrical Type
• 1/4 HP, 208-230V
• 1625 RPM, CCWLE Rotation

Product Highlights

The Century U747 motor is constructed from rolled steel for durability. It operates at 1625 RPM and is designed for continuous air-over duty. Ideal for HVAC systems, this motor features a flat shaft type and resilient ring mounting for horizontal orientation.

Product Information

Standard Information

• Brand: Century
• MPN: U747
• UPC: 787000000000
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Shaded Pole
• Horsepower: 1/4
• KW: 0.19
• RPM: 1625
• Frame: 42
• Enclosure: OAO
• Phase: Single
• Voltage: 208-230
• Rotation: CCWLE
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Resilient Ring
• Orientation: Horizontal
• Amperage: 2.0
• Shaft Type: Flat
• Shaft Extension: 7.750
• Shaft Diameter: 0.500
• Certification: UL Recognized
• Certification CSA: Y
• Certifications UL: Recognized
• Insulation Class: A
