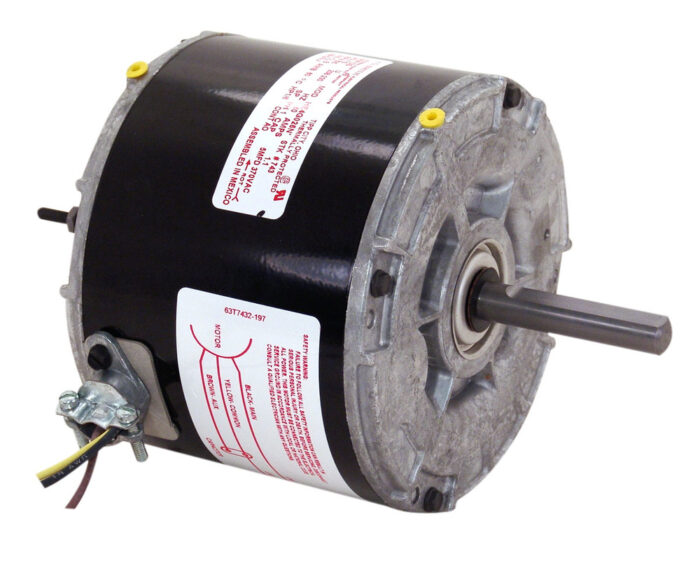

CENTURY MOTORS U744 OEM Replacement Motor 1/3 HP

Product Description

The CENTURY MOTORS U744 is an OEM replacement motor for HVAC systems. This motor circulates air efficiently within the system. It operates at a speed of one thousand seventy-five RPM and provides one-third horsepower. The motor is housed in a TEAO (Totally Enclosed Air Over) enclosure, ensuring protection from external elements. It comes with an auto overload protector for added safety and includes a five MFD capacitor for easy installation. This motor is built to replace existing motors in compatible HVAC applications.

• Designed for HVAC system air circulation.
• Operates at one thousand seventy-five RPM.
• Includes a TEAO enclosure and auto overload protection.

Product Highlights

This motor is suitable for HVAC systems and guarantees efficient air movement.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: U744

Technical Specifications

• Horsepower: 1/3 HP
• Input Voltage: 208-230 Volts
• Speed: 1075 RPM
• Rotation: CCWLE (Counter-Clockwise Lead End)
• Shaft Dimensions: 1/2 inches x 2-3/4 inches
• Motor Diameter: 5-5/8 inches
• Enclosure: TEAO (Totally Enclosed Air Over)
• Capacitor Included: Yes
• Number of Speeds: 1
• Overload Protection: Auto
• Phase: Single Phase
• Frame: 48Y
• Speed Range: 910-1200
• Electrical Type: PSC
• Material: Rolled Steel
