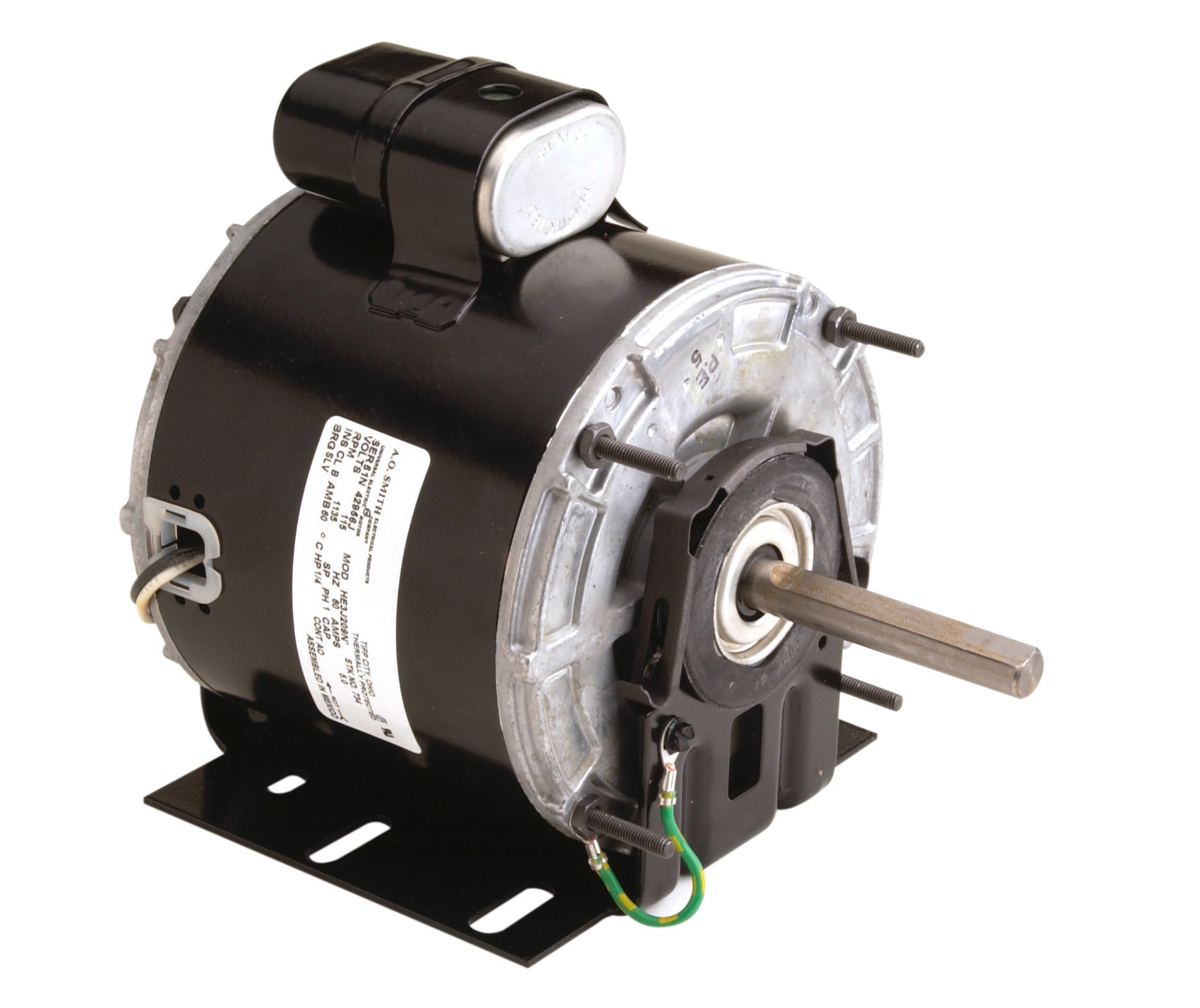

Century U734 Unit Heater Motor 1/4 HP 1135 RPM 48Y Frame

Product Description

The Century U734 Unit Heater Motor is a versatile HVAC motor suitable for various heating applications. It operates at 1/4 HP and 1135 RPM and features a 48Y frame.

• 1/4 HP power output
• 1135 RPM speed
• 115 voltage operation

Product Highlights

This motor is built with rolled steel and features a TEAO enclosure. It is designed for horizontal mounting with a resilient base and includes automatic overload protection.

Product Information

Standard Information

• Brand: Century
• MPN: U734

Technical Specifications

• Electrical Type: PSC
• HP: 1/4
• KW: 0.19
• RPM: 1135
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115
• Rotation: CCWLE
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Bearings SE Type: Sleeve
• Bearings OSE Type: Sleeve
• Mounting: Resilient Base
• Orientation: Horizontal
• Amperage: 4.5
• Shaft Type: Flat
• Shaft Extension: 3.390 inches
• Shaft Diameter: 0.500 inches
