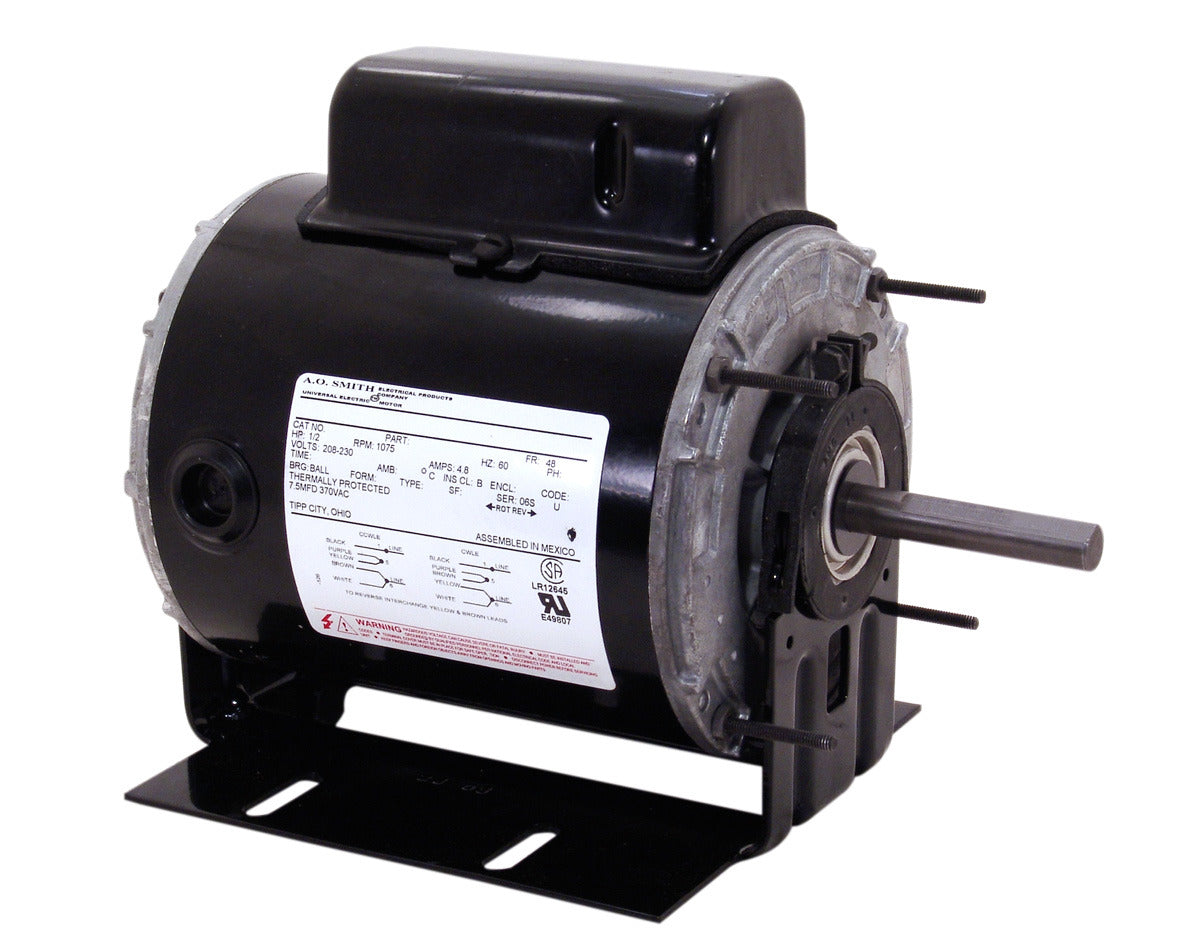

Century U733 Unit Heater Motor 1/2 HP 1140 RPM 115/208-230V

Product Description

The Century U733 Unit Heater Motor is designed for HVAC applications, providing reliable performance with a 1/2 HP capacity and 1140 RPM. Built with durable rolled steel and featuring auto overload protection, this motor is an ideal choice for unit heater systems.

• 1/2 HP capacity
• 1140 RPM speed
• 115/208-230V voltage range

Product Highlights

This motor is suitable for HVAC unit heater applications, offering consistent performance and durability.

Product Information

Standard Information

• Brand: Century
• MPN: U733
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: PSC
• HP: 1/2
• KW: 0.37
• RPM: 1140
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115/208-230V
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Resilient Base
• Amperage: 5.6/2.8
• Shaft Type: Flat
• Shaft Extension: 5.030 inches
• Ambient Temperature: 60°C
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
• Shaft Diameter: 0.500 inches
