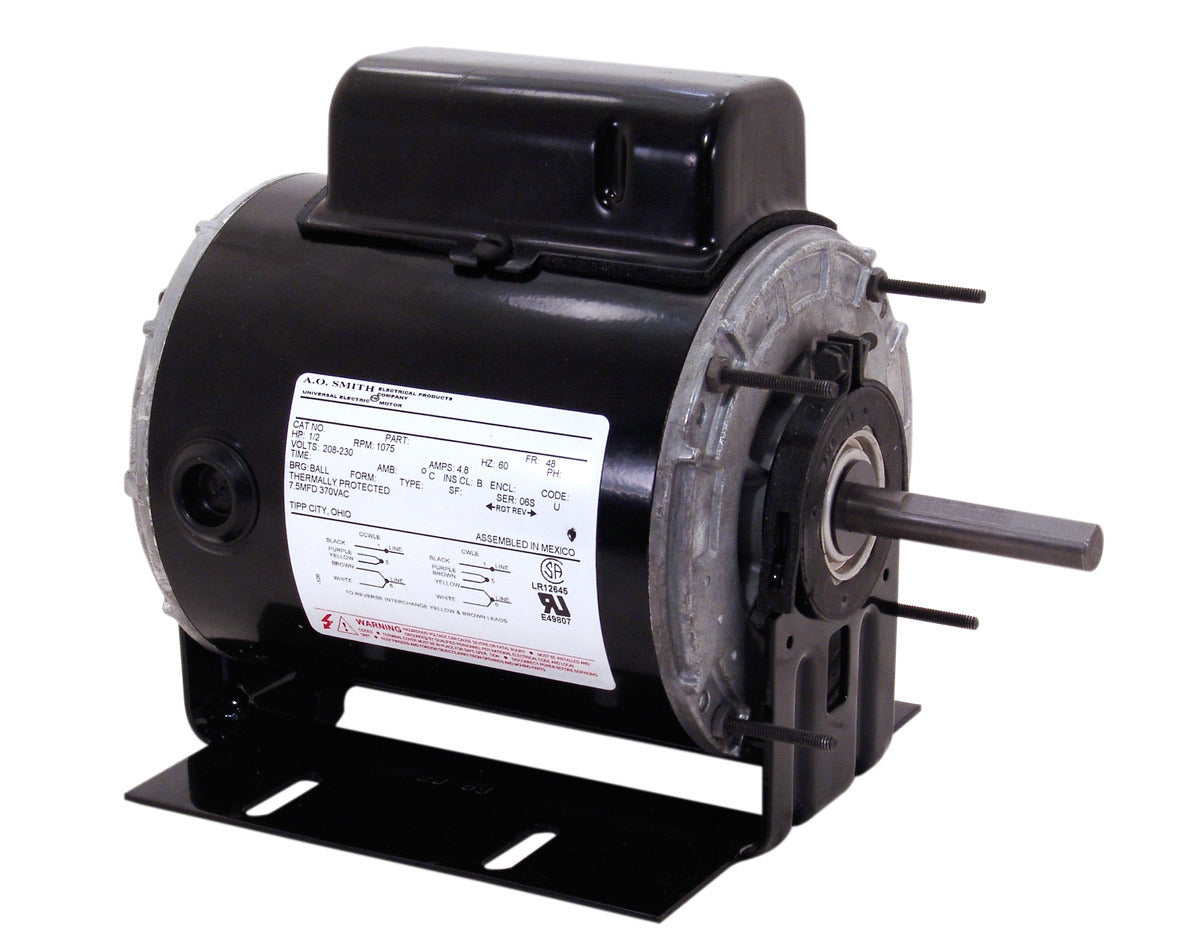

Century U732 Unit Heater Motor 1/3 HP 1140 RPM 48Y 5.6 Inch TEAO 115/208-230 Volt REV

Product Description

The Century U732 Unit Heater Motor is designed to provide reliable performance for HVAC systems. This motor operates with a power rating of 1/3 HP and a speed of 1140 RPM. The motor frame is 48Y, and it has a diameter of 5.6 inches. It features a Totally Enclosed Air Over (TEAO) enclosure, making it suitable for various heating applications. The motor runs on a voltage of 115/208-230 volts and has a reversible rotation.

• 1/3 HP unit heater motor
• 1140 RPM speed
• 115/208-230 volts

Product Highlights

The Century U732 Unit Heater Motor is built for single-phase operation and includes an auto overload protector. It is made from rolled steel and features resilient base mounting. The motor uses ball bearings on both ends to ensure smooth operation.

Product Information

Standard Information

• Brand: Century
• MPN: U732
• UPC: 7.87E+11
• Country of Origin: Mexico

Technical Specifications

• HP: 1/3
• KW: 0.25
• RPM: 1140
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Resilient Base
• Amperage: 3.3/1.7
• Shaft Type: Flat
• Shaft Extension: 5.080 inches
• Assembly: Any
• Shaft Diameter: 0.500 inches
