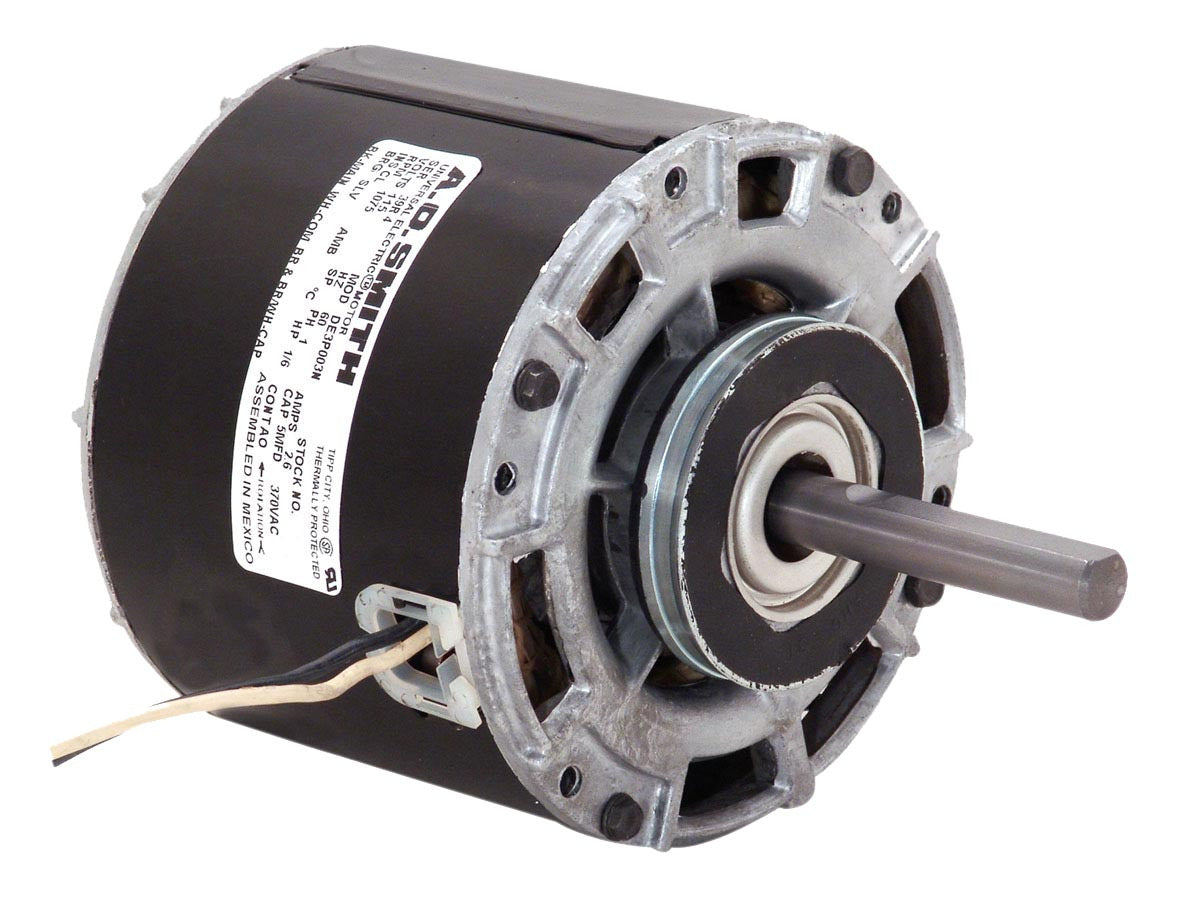

Century U613 Refrigeration Motor 1/15 HP 1550 RPM 115/208-230V

Product Description

The Century U613 Refrigeration Motor is a high-quality, reliable motor designed for HVAC and refrigeration applications. This motor operates at 1/15 HP and 1550 RPM, providing efficient performance for refrigeration systems. It features a shaded pole electrical type, a semi-enclosed enclosure, and is constructed from rolled steel for durability.

• 1/15 HP motor
• 1550 RPM
• 115/208-230V

Product Highlights

This motor is suitable for use in various refrigeration systems, offering a combination of reliability and efficiency. Its single-phase operation and resilient ring mounting make it easy to install. The motor's sleeve bearings ensure smooth operation, while its continuous air over duty allows for sustained performance.

Product Information

Standard Information

• Brand: Century
• MPN: U613
• Electrical Type: Shaded Pole
• HP: 1/15
• KW: 0.05
• RPM: 1550
• Frame: 42Y
• Enclosure: SEMI-ENCLOSED
• Phase: Single
• Voltage: 115/208-230
• Rotation: CCWSE
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Sleeve Type: Sleeve
• Mounting: Resilient Ring
• Amperage: 2.8/1.4-1.4
• Shaft Type: Flat
• Shaft Extension: 3.250

Technical Specifications

• Country of Origin: Mexico
• UPC Number: 787000000000
• Certifications: CSA (Y), UL (Recognized)
• Ambient Temperature: 40 degrees Celsius
• Duty: Continuous Air Over
• Insulation Class: A
• Poles: 4
• Service Factor: 1
• Start Method: Across The Line
• Frame Size: 42
• Frame Suffix: Y
• Shaft Diameter: 0.375
