Product Description

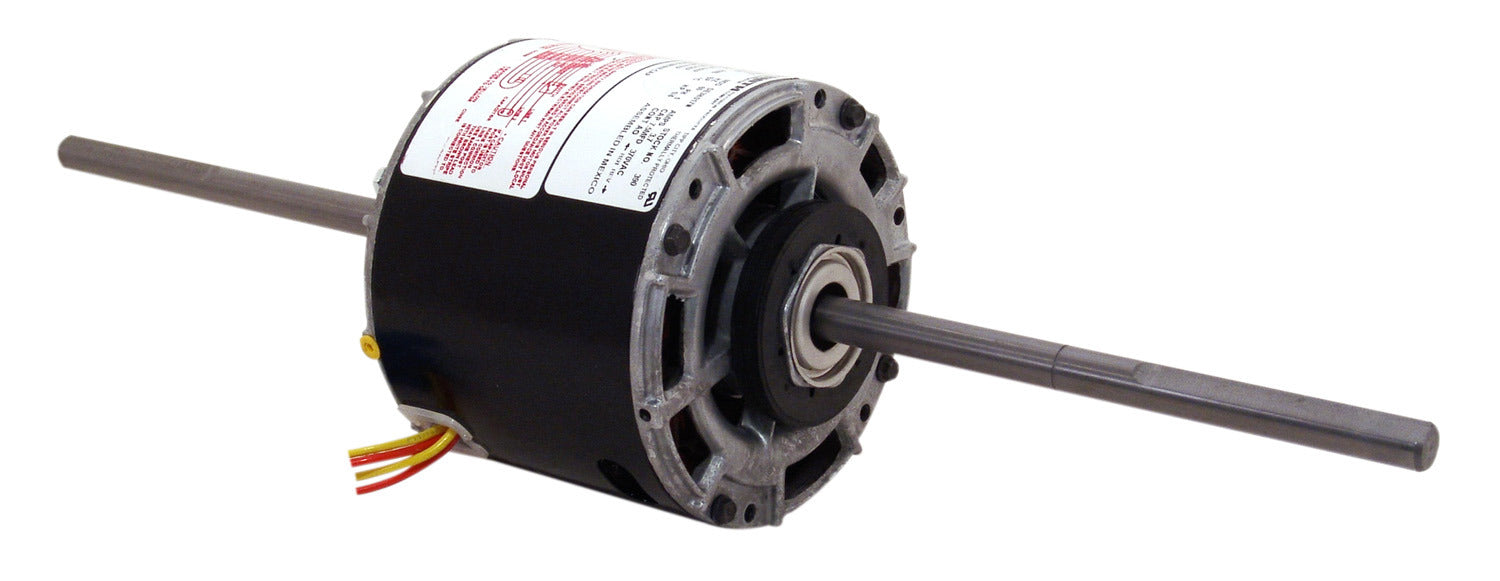

The Century U596 OEM Replacement Motor ensures reliable performance for HVAC systems. This motor is designed for replacing existing units, boasting a power output of 1/8 HP.
- PSC Electrical Type
- 1075 RPM
- 277 Volts
Product Highlights
Ideal for HVAC professionals seeking a motor with a rolled steel frame and resilient ring mounting. Suitable for horizontal installation.
Product Information
Standard Information
-
Brand: Century
-
MPN: U596
-
Type: OEM Replacement Motor
Technical Specifications
-
Electrical Type: PSC
-
HP: 1/8
-
KW: 0.1
-
RPM: 1075
-
Frame: 42Y
-
Enclosure: OAO
-
Phase: Single
-
Voltage: 277
-
Rotation: CCWLE
-
Material: Rolled Steel
-
Bearings Type: Sleeve / Sleeve
-
Mounting: Resilient Ring
-
Orientation: Horizontal
-
Amperage: 0.83
-
Shaft Type: Flat
-
Shaft Extension: 9.0 inches x 0.5 inches x 9.0 inches
-
Shaft Diameter: 0.500 inches
-
Ambient Temperature: 40 degrees C
-
Service Factor: 1
-
Insulation Class: B
-
Poles: 6
-
Start Method: Across The Line
-
Duty: Continuous Air Over
-
Certification: UL Recognized, CSA
