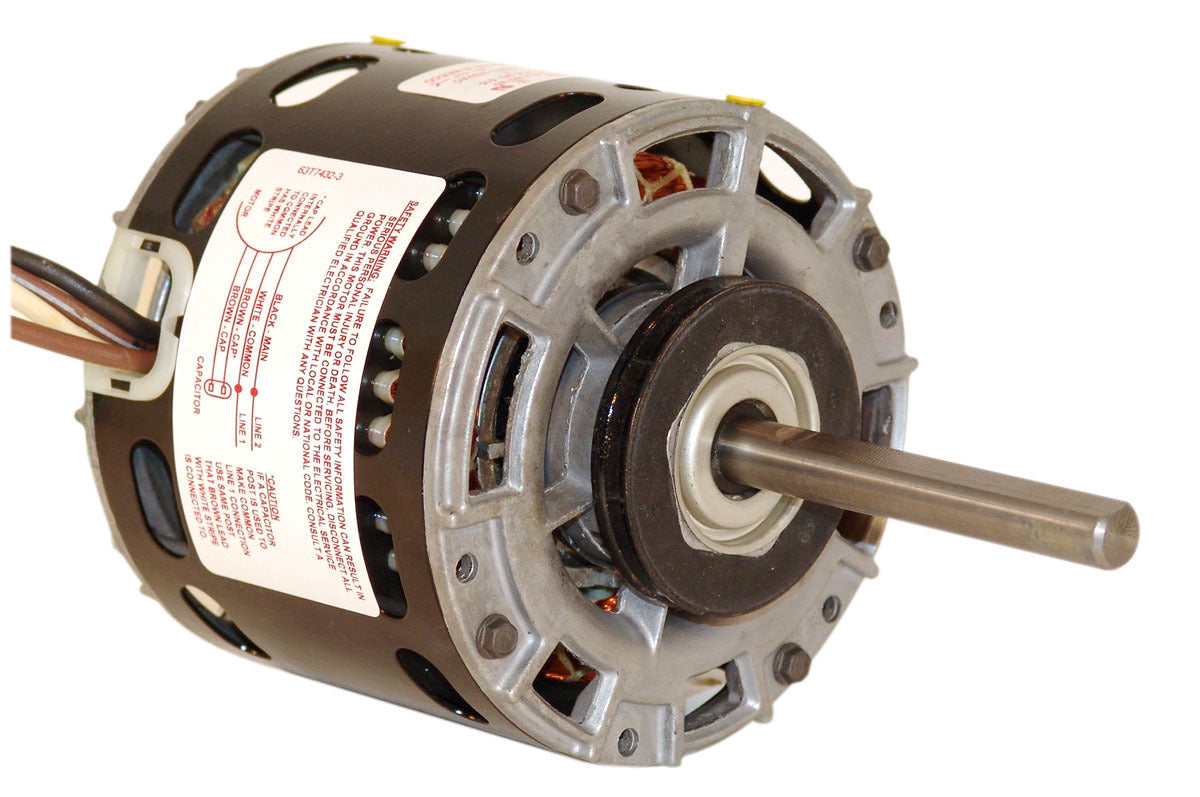

Century U515 OEM Replacement Motor 1/4 HP 1100 RPM 208-230V Single Phase

Product Description

The Century U515 OEM Replacement Motor is a single-phase motor designed for HVAC systems. This motor provides reliable performance and is built with rolled steel material. Ideal for applications requiring a 1/4 horsepower motor.

• PSC electrical type
• 1/4 horsepower
• 1100 RPM

Product Highlights

This motor features automatic overload protection and a flat shaft type to facilitate installation and operation.

Product Information

Standard Information

• Brand: Century
• MPN: U515
• Country of Origin: Mexico
• Certification: Recognized UL, CSA certified

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/4
• KW: 0.19
• RPM: 1100
• Frame: 42Y
• Enclosure: OAO
• Phase: Single
• Voltage: 208-230
• Rotation: CWSE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve
• Mounting: Resilient Rings
• Orientation: Horizontal
• Amperage: 1.5
• Shaft Type: Flat
• Shaft Extension: 3.96 inches
• Shaft Diameter: 0.5 inches
• Insulation Class: A
• Service Factor: 1
• Poles: 6
• Ambient Temperature: 40°C
• Duty: Continuous Air Over
• Start Method: Across The Line
