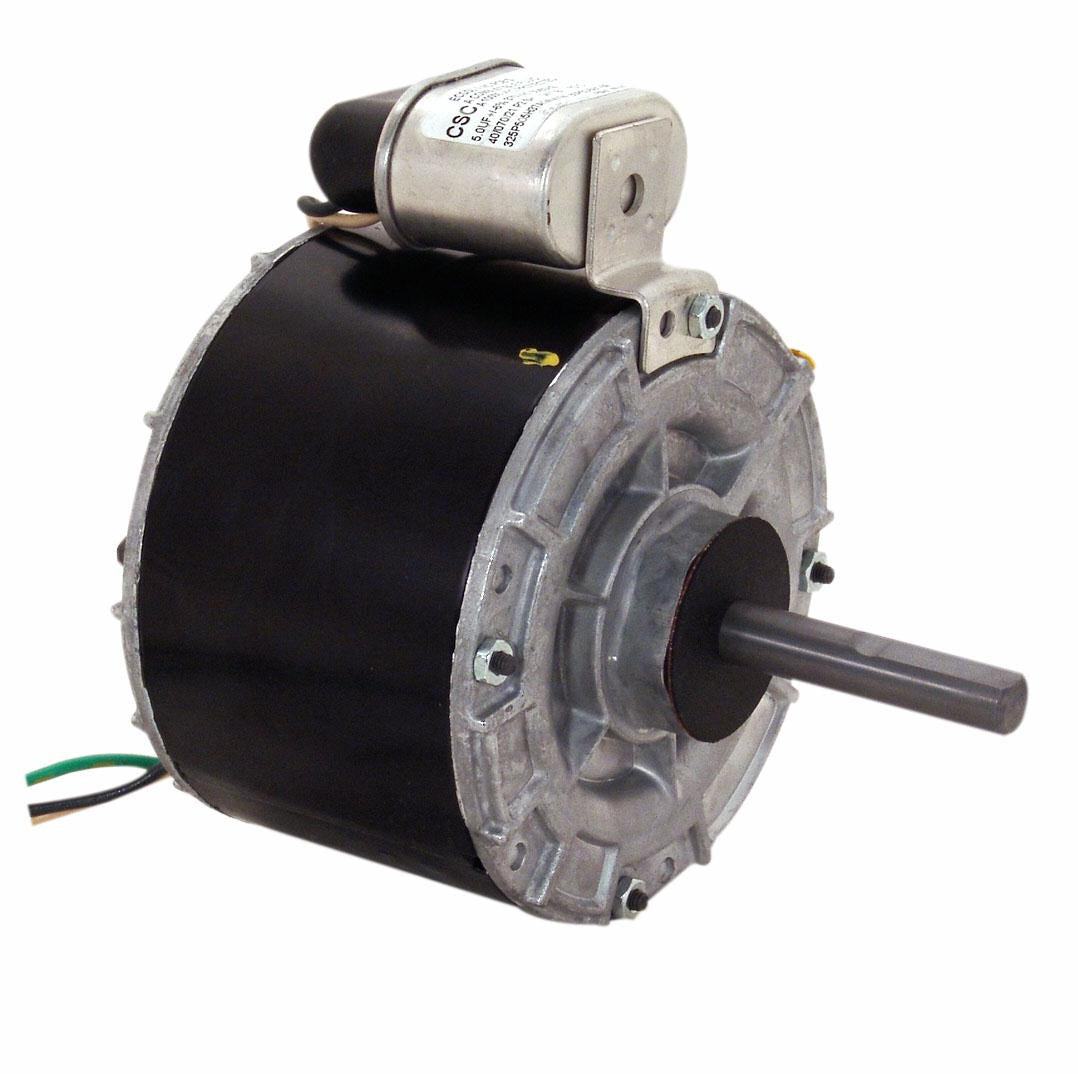

Century U492 OEM Replacement Motor 1/8 HP 230V 1550 RPM

Product Description

The Century U492 OEM Replacement Motor is a reliable choice for HVAC systems. Designed with a sturdy rolled steel frame, this motor is built for long-lasting performance. It operates with a power rating of 1/8 HP and a voltage of 230V, making it suitable for various applications.

• Power rating: 1/8 HP
• Voltage: 230V
• RPM: 1550

Product Highlights

The Century U492 OEM Replacement Motor features a semi-enclosed enclosure and runs on a single phase. It is designed for horizontal mounting and has a flat shaft type. Its automatic overload protector adds an extra layer of safety.

Product Information

Standard Information

• Brand: Century
• MPN: U492
• Country of Origin: Mexico
• UPC Number: 787000000000

Technical Specifications

• Electrical Type: PSC
• HP: 1/8
• KW: 0.1
• RPM: 1550
• Frame: 42
• Enclosure: Semi-Enclosed
• Phase: Single
• Voltage: 230
• Rotation: CWSE
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting Type: Round Belly Band
• Orientation: Horizontal
• Amperage: 1.1
• Shaft Type: Flat
• Shaft Extension: 2.96 inches
• Shaft Diameter: 0.500 inches
• Ambient Temperature: 40 degrees Celsius
• Duty: Continuous Air Over
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• Start Method: Across The Line
