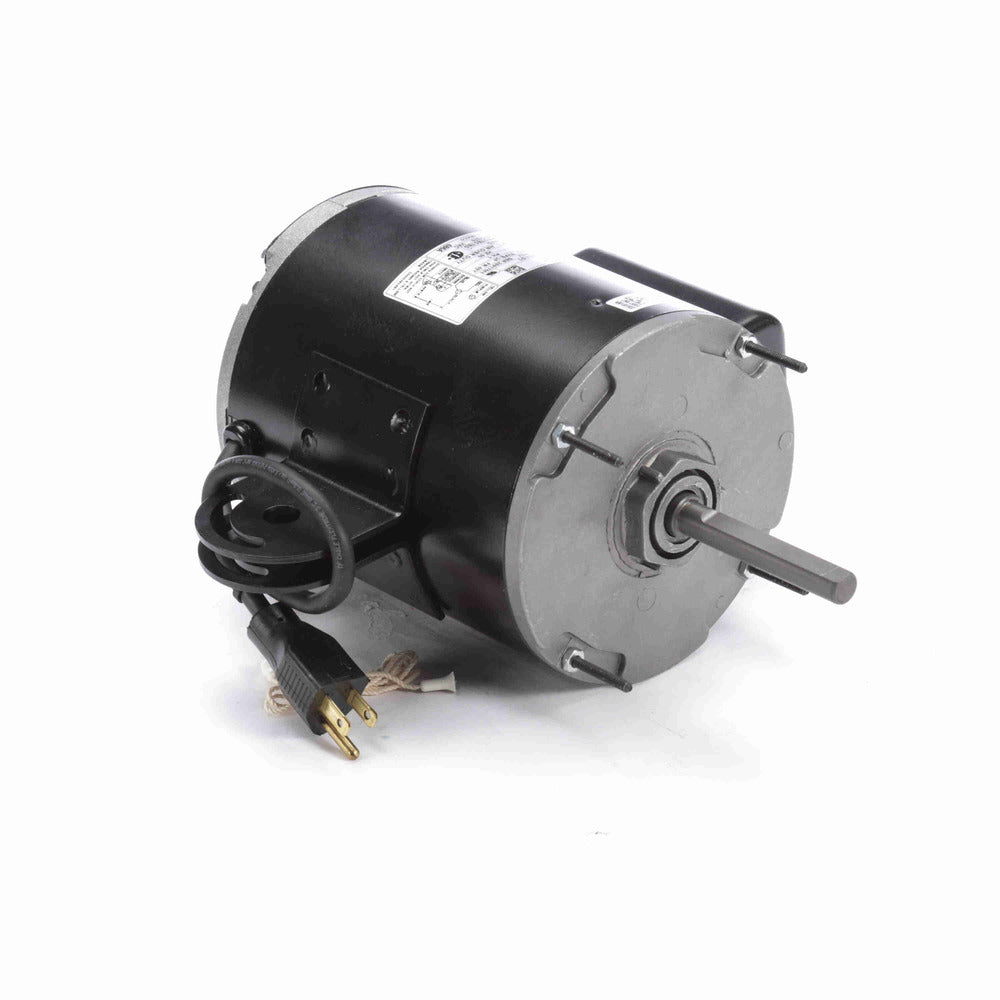

Century U486 Pedestal Fan Motor 1/4 HP 115V 48Y

Product Description

The Century U486 Pedestal Fan Motor is a reliable and efficient choice for HVAC applications. This motor features a 1/4 HP capacity, operating at 115 volts with a 48Y frame. It is designed for single-phase power and offers automatic overload protection.

• PSC Electrical Type
• 1/4 HP
• 1100 RPM

Product Highlights

This motor provides consistent performance in pedestal fan installations. Its construction includes durable rolled steel and ball bearings, ensuring longevity and reliable operation. Suitable for horizontal orientation, it fits well in various HVAC systems.

Product Information

Standard Information

• Brand: Century
• MPN: U486

Technical Specifications

• HP: 1/4
• Voltage: 115
• RPM: 1100
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Yoke
• Orientation: Horizontal
• Amperage: 3.2
• Shaft Type: Flat
• Shaft Extension: 3.500 inches
• Shaft Diameter: 0.500 inches
