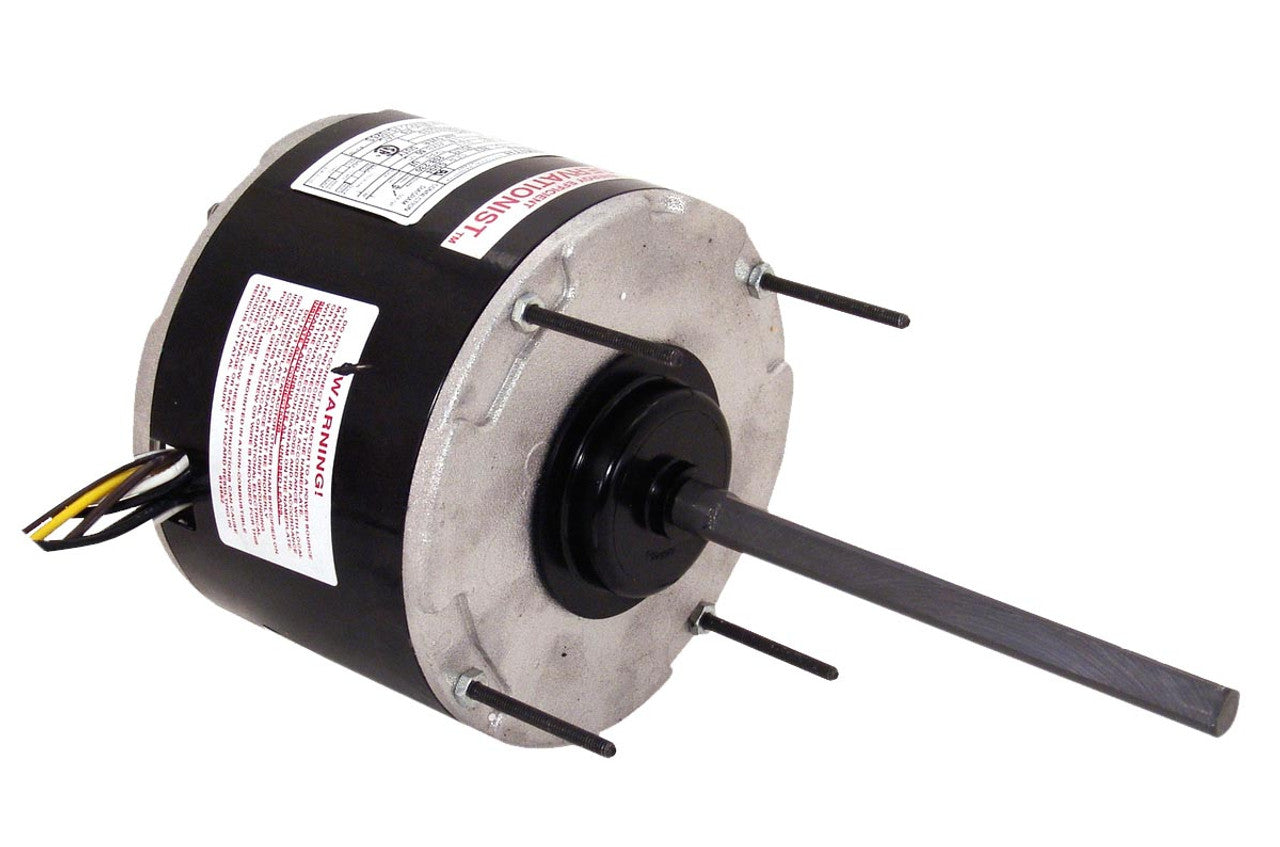

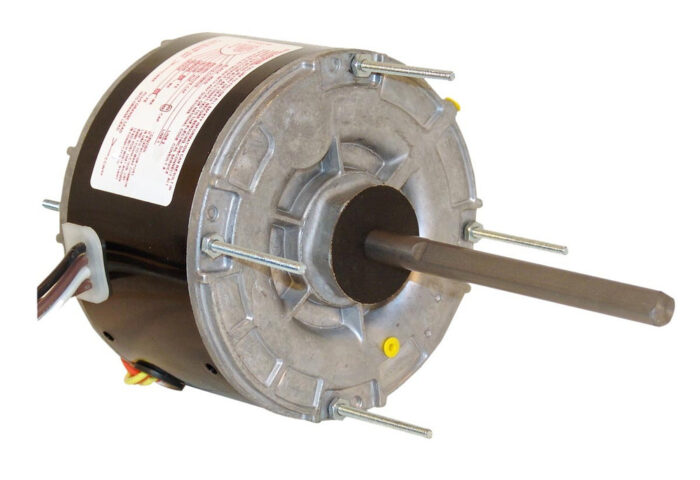

CENTURY MOTORS U474A Outdoor Condenser Fan Motor 1/4 HP 208-230 volts

Product Description

The CENTURY MOTORS U474A is a 1/4 HP motor intended for outdoor condenser fan use. It runs at eight hundred twenty-five RPM and works with 208-230 voltage power sources. Designed for single-speed operation, it features a reversing plug for versatile installation. The motor has extended thru bolts, an open dripproof enclosure, and utilizes a sleeve bearing.

• Designed for outdoor condenser fan applications.
• Operates at 825 RPM with 208-230 voltage.
• Includes a reversing plug for installation flexibility.

Product Highlights

This motor is suitable for replacing worn-out outdoor condenser fan motors.

Product Information

Standard Information

• Motor Type: Outdoor Condenser Fan Motor
• Horsepower: 1/4 HP

Technical Specifications

• RPM: 825
• Input Voltage: 208-230 Volts
• Output Current: 1.5 Amps
• Speed: 1
• Insulation Class: Class B
• Ambient Temperature: 60°C
• Bearing Type: Sleeve Bearing
• Enclosure: Open Drip Proof
• Motor Diameter: 5.6 inches
• Shaft Dimension: 1/2 x 6 inches
• Reversing Plug: Yes
• Shaft End: 1-7/8 inches
• Lead End: 1/2 inches extended bolts
• Capacitor: 7.5mfd-370V (included)
