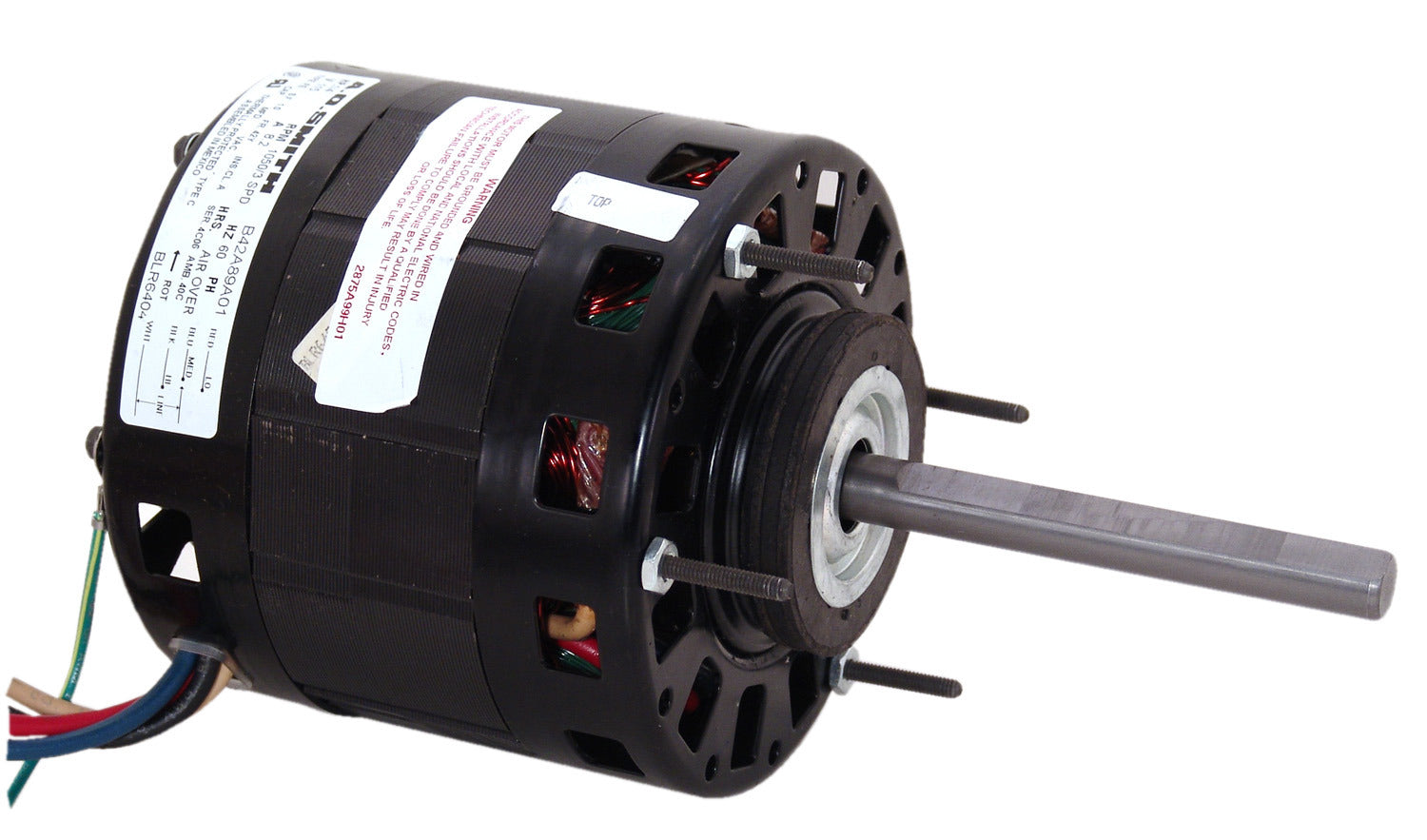

Century U429 Fan and Blower Motor 1/5 HP 208-230V

Product Description

The Century U429 Fan and Blower Motor is a reliable solution for HVAC systems. With 1/5 HP and a voltage range of 208-230V, it is designed to enhance ventilation efficiency in residential and commercial settings. This motor operates at 1050 RPM and features a durable rolled steel construction.

• 1/5 HP motor for efficient performance
• Operates at 208-230V
• Designed for HVAC systems

Product Highlights

This motor is suitable for various HVAC applications and is built to last with its rolled steel construction. It features resilient ring mounting and a flat shaft type for ease of installation and use.

Product Information

Standard Information

• Brand: Century
• MPN: U429
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Shaded Pole
• HP: 1/5
• KW: 0.15
• RPM: 1050
• Frame: 42Y
• Enclosure: OAO
• Phase: Single
• Voltage: 208-230
• Rotation: CWSE
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve/Sleeve
• Mounting: Resilient Ring
• Orientation: Horizontal
• Amperage: 3.4
• Shaft Type: Flat
• Shaft Extension: 3.84 inches
• Shaft Diameter: 0.500 inches
• Insulation Class: A
• Service Factor: 1
• Duty: Continuous Air Over
• Speeds: 3
• Poles: 6
