Product Description

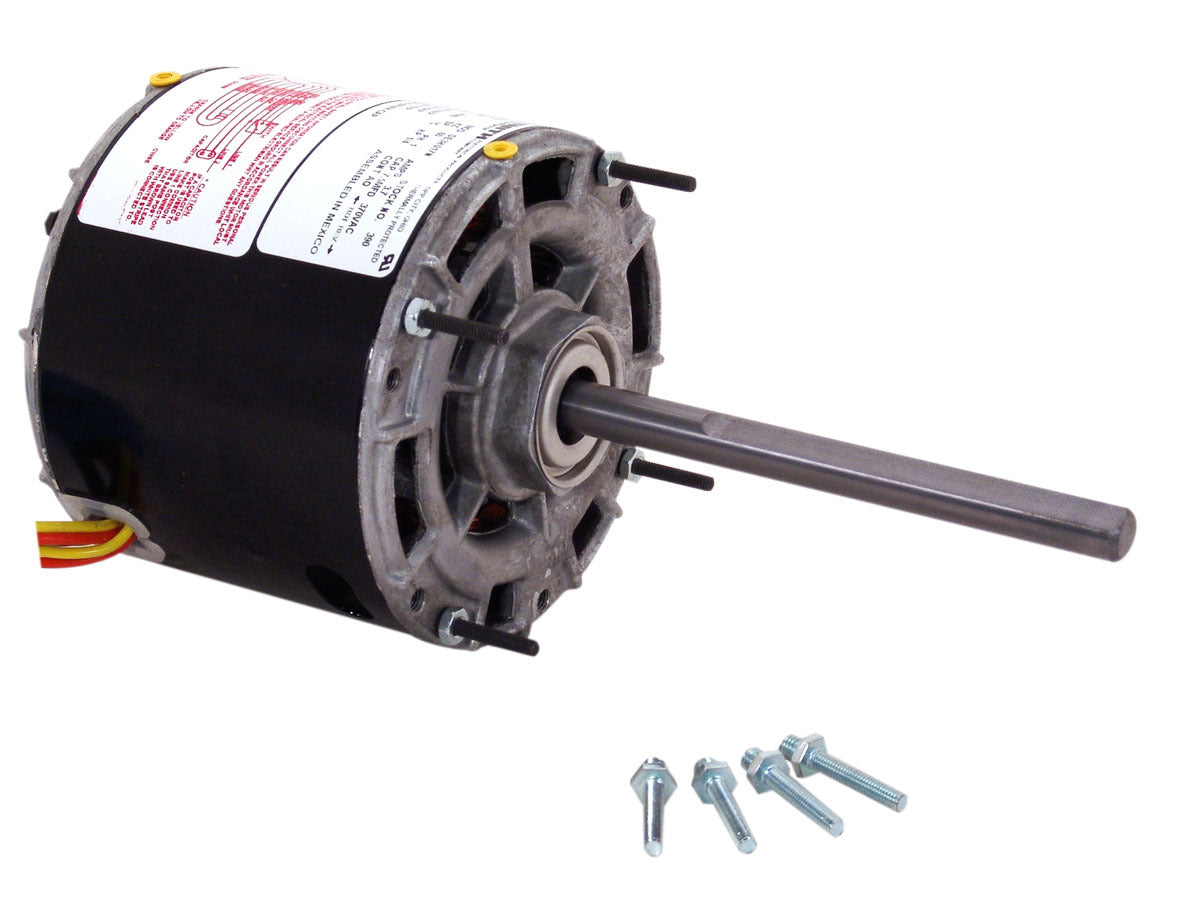

The Century U390 fan and blower motor is a 1/4 HP, 1050 RPM motor used in various HVAC applications. Designed for efficiency and durability, this motor operates on 115 volts. Ideal for professionals in need of dependable performance.
- 1/4 HP power
- 1050 RPM speed
- 115 volts
Product Highlights
This motor is constructed with rolled steel and features a sleeve bearing type, providing reliable and continuous duty. With an automatic overload protector and resilient mounting, it's suitable for horizontal installations and various fan and blower applications.
Product Information
Standard Information
Technical Specifications
-
Electrical Type: PSC
-
Horsepower: 1/4 HP
-
Power: 0.19 kW
-
RPM: 1050
-
Frame: 42
-
Enclosure: OAO
-
Phase: Single
-
Voltage: 115
-
Rotation: REV
-
Overload Protector: Auto
-
Material: Rolled Steel
-
Bearings Type: Sleeve/Sleeve
-
Mounting: Resilient Ring/Extended Studs
-
Orientation: Horizontal
-
Amperage: 3.7
-
Shaft Type: Flat
-
Shaft Extension: 6 inches
-
Shaft Diameter: 0.5 inches
