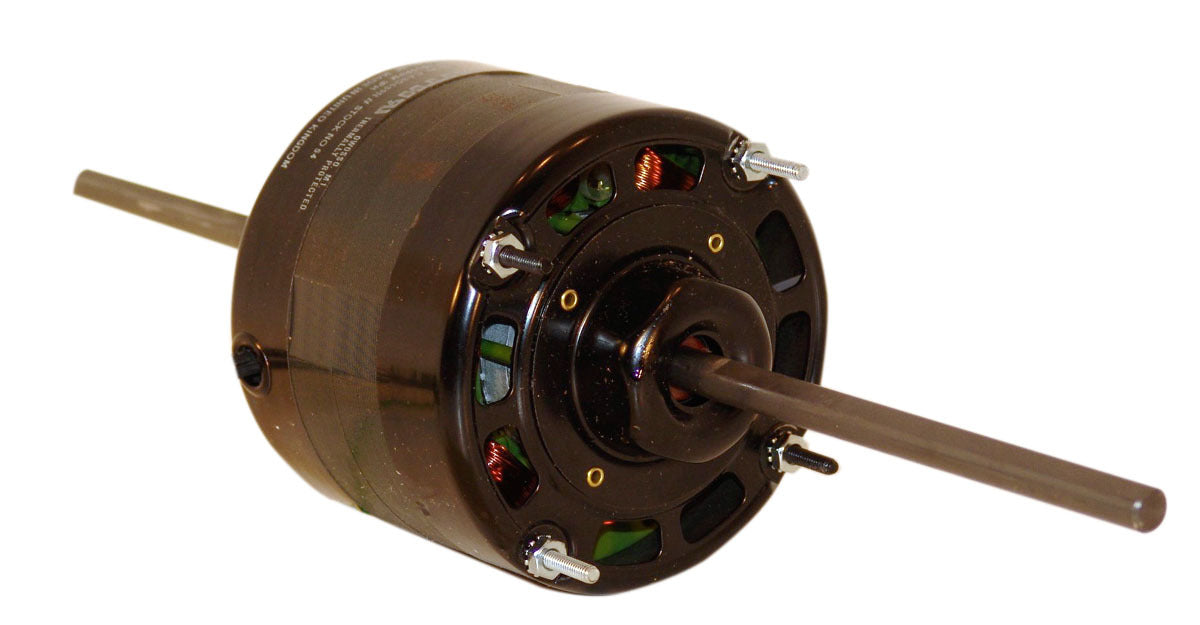

Century U363 Fan Coil / Air Conditioner Motor 115V 1/20 HP

Product Description

The Century U363 Fan Coil / Air Conditioner Motor is designed for HVAC applications. It offers reliable performance and easy installation in various fan coil units and air conditioners.

• Shaded Pole Electrical Type
• 1/20 HP Power
• 1550 RPM Speed

Product Highlights

This motor is built with rolled steel material and features auto overload protection. It operates at 115 volts and is suitable for horizontal orientation. The motor has a flat shaft type and is mounted using extended studs.

Product Information

Standard Information

• Brand: Century
• MPN: U363
• HP: 1/20
• RPM: 1550
• Electrical Type: Shaded Pole
• Material: Rolled Steel
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: CWLE
• Overload Protection: Auto

Technical Specifications

• Diameter: 4.4 inches
• Amperage: 1.8/1.3/.95/.70
• Shaft Diameter: 0.375 inches
• Shaft Extension: 7.5 x 0.375 x 7.5 inches
• Mounting: Extended Studs
• Orientation: Horizontal
• Bearings Type: Sleeve / Sleeve
• Insulation Class: B
• Pole: 4
• Service Factor: 1
• Start Method: Across The Line
• Duty: Continuous Air Over
