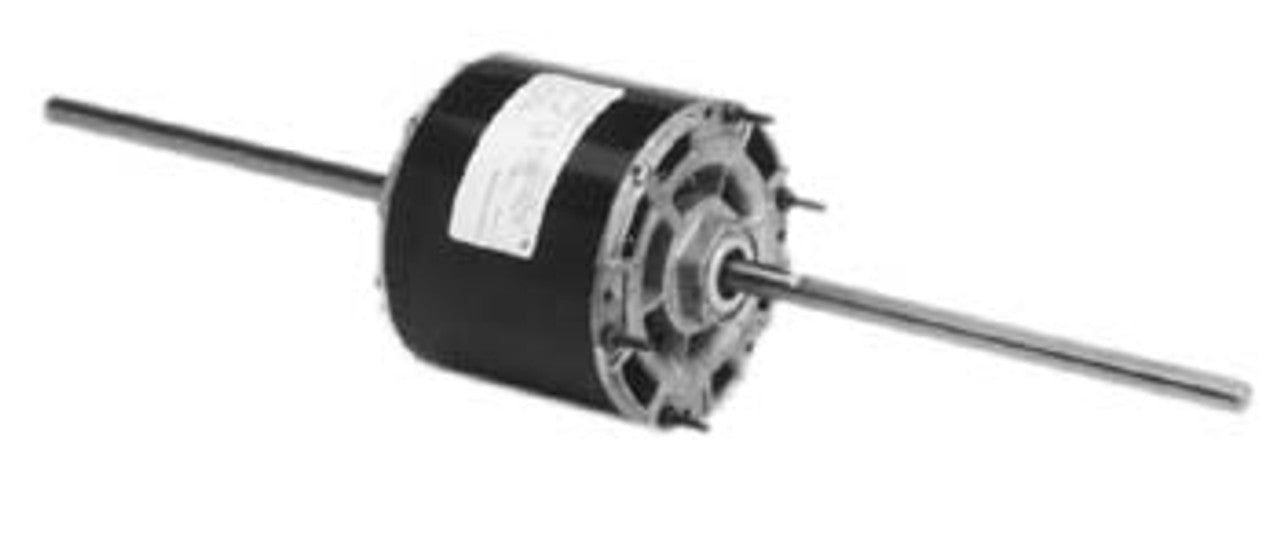

CENTURY MOTORS U348 Double Shaft Fan/Blower Motor 230V

Product Description

The CENTURY MOTORS U348 is a double shaft motor ideal for fan coil and air conditioning applications. It operates at two hundred thirty volts with three adjustable speeds. The motor features a shaded pole design, a frame size of forty-two, and sleeve bearings for enhanced durability.

• Double shaft design with half-inch diameter flatted shafts.
• 230V operation with various amperage options.
• Includes auto protector and two-and-a-half diameter rings.

Product Highlights

This motor is crafted for performance in various HVAC systems, ensuring reliable operation and flexibility in application.

Product Information

Standard Information

• Manufacturer Part Number: U348
• Motor Type: Fan Coil / Air Conditioner Motor

Technical Specifications

• Electrical Type: Shaded Pole
• Phase: Single Phase
• Input Voltage: 230V
• Overload Protector: Auto
• Frame Size: 42
• Enclosure: OAO
• Horsepower: 1/6-1/8-1/10
• Rotation: CCWLE
• Speed: 3
• RPM: 1050
• Output Current: 2.9-2.1-1.6 Amp
• Shaft Type: 1/2 Diameter-Flatted Shafts
• Bearing Type: Sleeve Bearing
• Ring Diameter: 2-1/2
