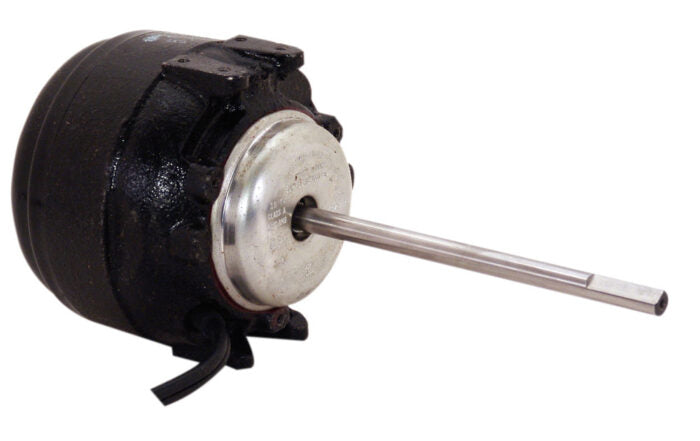

CENTURY MOTORS U292 Unit Bearing Motor 0.015 kW

Product Description

The CENTURY MOTORS U292 is a unit bearing motor designed for various applications. This motor operates on single-phase power at one hundred fifteen volts and features a shaded pole electrical type. It has a totally enclosed air over (TEAO) design, which protects against dust and moisture. The durable cast iron frame ensures longevity.

• Power: 0.015 kW
• Rotation: CCWLE (Counter Clockwise Lead End)
• Includes flat shaft type and mounting options

Product Highlights

The CENTURY MOTORS U292 is suitable for different industrial applications, providing reliable performance in a compact design.

Product Information

Standard Information

• Manufacturer Part Number: U292
• Electrical Type: Shaded Pole

Technical Specifications

• Power: 0.015 kW
• Frame: UNIT BEARING
• Enclosure: TEAO
• Phase: Single
• Voltage: 115 V
• Current: 0.6 A
• Shaft Type: Flat
• Shaft Extension: 5.000 inches
• Shaft Diameter: 0.312 inches
• Wattage: 15 watts
• Speed: 1500 RPM
