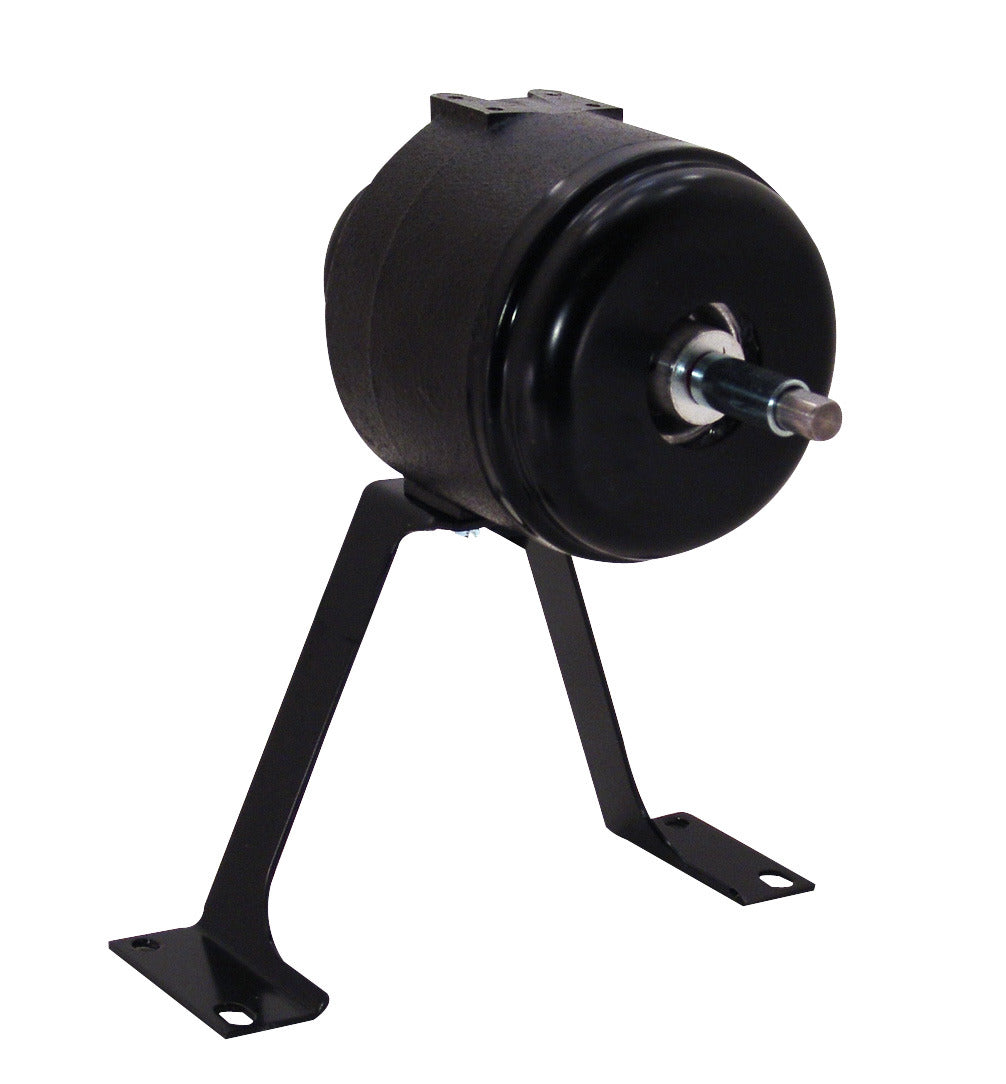

Century U288 Unit Bearing Motor 230V 1500 RPM

Product Description

The Century U288 Unit Bearing Motor is designed for HVAC applications. This motor operates at 1500 RPM with a power output of 0.05 KW. It is built with a cast iron frame and features a shaded pole electrical type.

• Optimal for HVAC systems
• Durable cast iron build
• 1500 RPM speed

Product Highlights

This Century U288 motor is equipped with a continuous duty rating and operates on a single-phase 230V power input. It rotates clockwise and has a flat shaft extension of 1.6 inches.

Product Information

Standard Information

• Brand: Century
• MPN: U288

Technical Specifications

• Electrical Type: Shaded Pole
• KW: 0.05
• RPM: 1500
• Frame: Unit Bearing
• Enclosure: TEAO
• Phase: Single
• Voltage: 230
• Rotation: CWLE
• Material: Cast Iron
• Mounting: 2 BOSS/OSE 3 Holes
• Amperage: 0.85
• Shaft Type: Flat
• Shaft Extension: 1.6 inches
• Shaft Diameter: 0.375 inches
• Duty: Continuous
• Insulation Class: A
• Poles: 4
• Service Factor: 1
• Start Method: Across The Line
