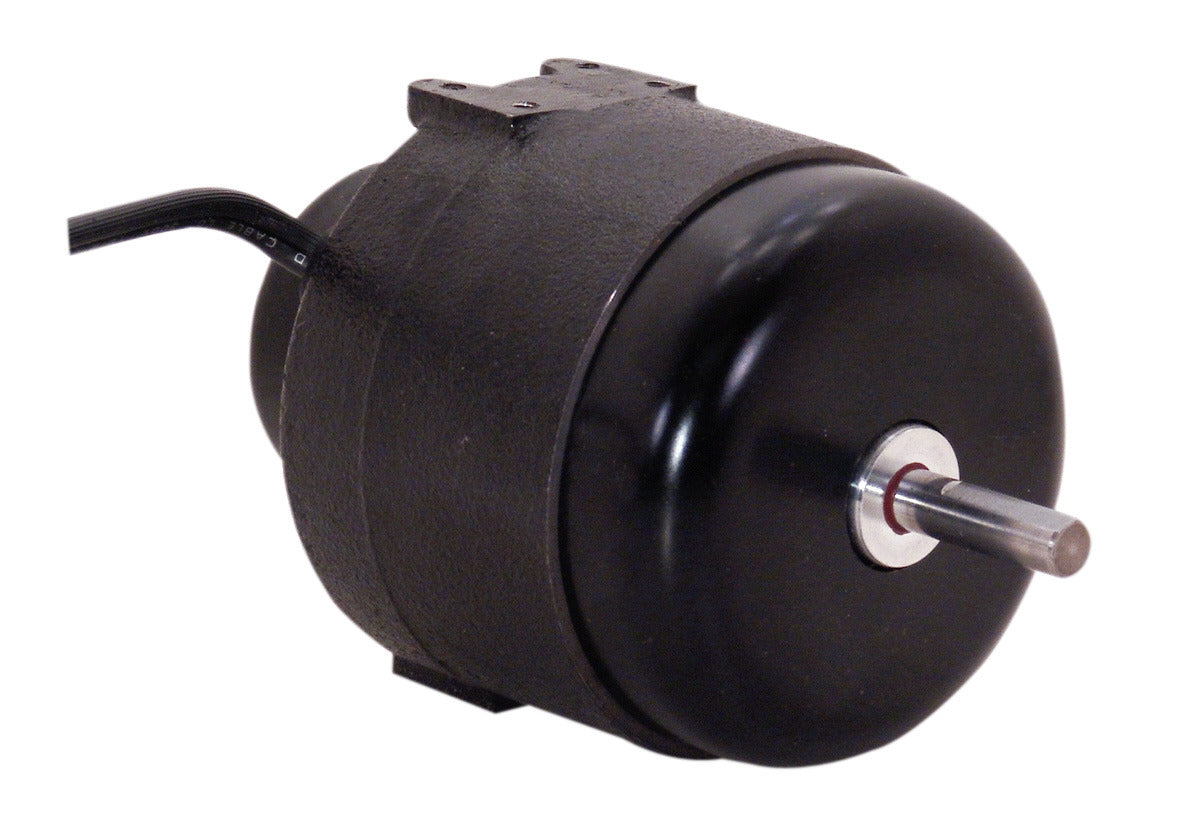

Century U258 Unit Bearing Motor 115V 0.05KW 1.7 Amperage 1500RPM TEAO Enclosure

Product Description

The Century U258 Unit Bearing Motor is designed for single-phase, 115-volt applications. This motor provides a power output of 0.05 KW and operates at 1500 RPM. Its TEAO enclosure ensures efficient cooling and durability, making it suitable for various HVAC/R applications.

• Shaded pole motor
• Continuous duty operation
• Flat shaft type with 1.6 inches extension

Product Highlights

This motor is constructed from durable cast iron and features a unit bearing frame with a standard CWLE rotation. It is ideal for HVAC systems needing a reliable and long-lasting motor.

Product Information

Standard Information

• Brand: Century
• MPN: U258

Technical Specifications

• Voltage: 115
• Power: 0.05 KW
• Amperage: 1.7
• Shaft Type: Flat
• Shaft Extension: 1.6 inches
• Shaft Diameter: 0.375 inches
• Rotation: CWLE
• Frame: Unit Bearing
• Mounting: 2 Boss/OSE 3 Holes
• Enclosure: TEAO
• Phase: Single
• RPM: 1500
• Material: Cast Iron
• Ambient Temperature: 40 degrees Celsius
• Insulation Class: A
• Service Factor: 1
• Poles: 4
• Start Method: Across The Line
• Duty: Continuous
