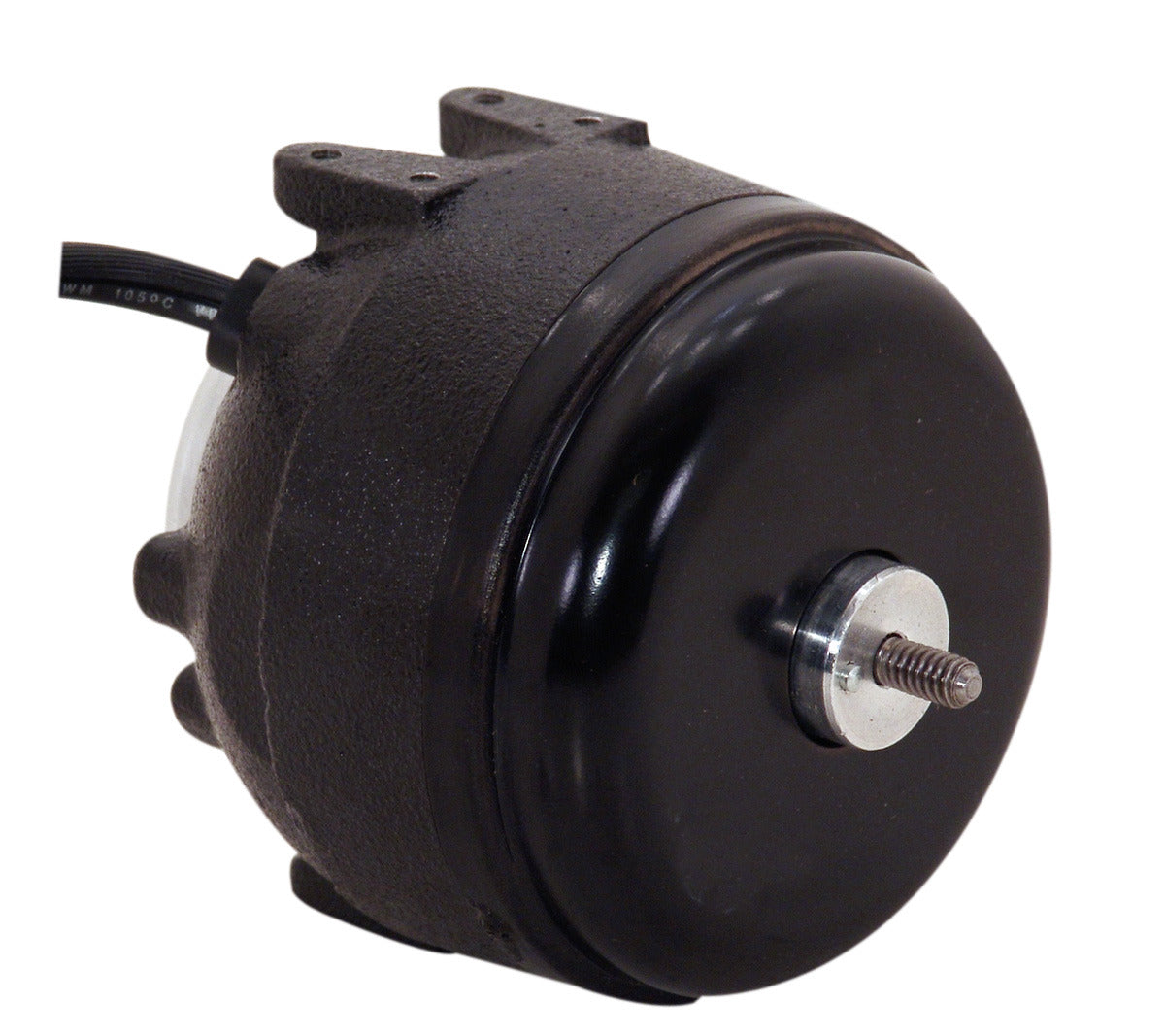

Century U253 Unit Bearing Motor 0.6 Amperage 230 Voltage 1500 RPM

Product Description

The Century U253 Unit Bearing Motor delivers reliable performance for HVAC applications. Known for its durability, the U253 features a shaded pole electrical type, a power output of 0.025 KW, and operates at 1500 RPM. This motor is built with a cast iron frame and is suitable for continuous duty cycles.

• Shaded Pole electrical type
• 230 Voltage
• 1500 RPM

Product Highlights

This Century U253 Unit Bearing Motor is ideal for HVAC systems. It features a cast iron body, continuous duty operation, and reliable shaded pole design.

Product Information

Standard Information

• Brand: Century
• MPN: U253

Technical Specifications

• Electrical Type: Shaded Pole
• KW: 0.025
• RPM: 1500
• Frame: Unit Bearing
• Enclosure: TEAO
• Phase: Single
• Voltage: 230
• Rotation: CCWLE
• Material: Cast Iron
• Mounting: 2 BOSS/OSE 3 Holes
• Amperage: 0.6
• Shaft Type: Threaded
• Shaft Extension: 0.52 inches
• Shaft Diameter: 0.25 inches
• Shaft Length: 20 inches
• Insulation Class: A
• Pole: 4
• Service Factor: 1
• Duty: Continuous
• Ambient Temperature: 40 degrees Celsius
• Start Method: Across The Line
