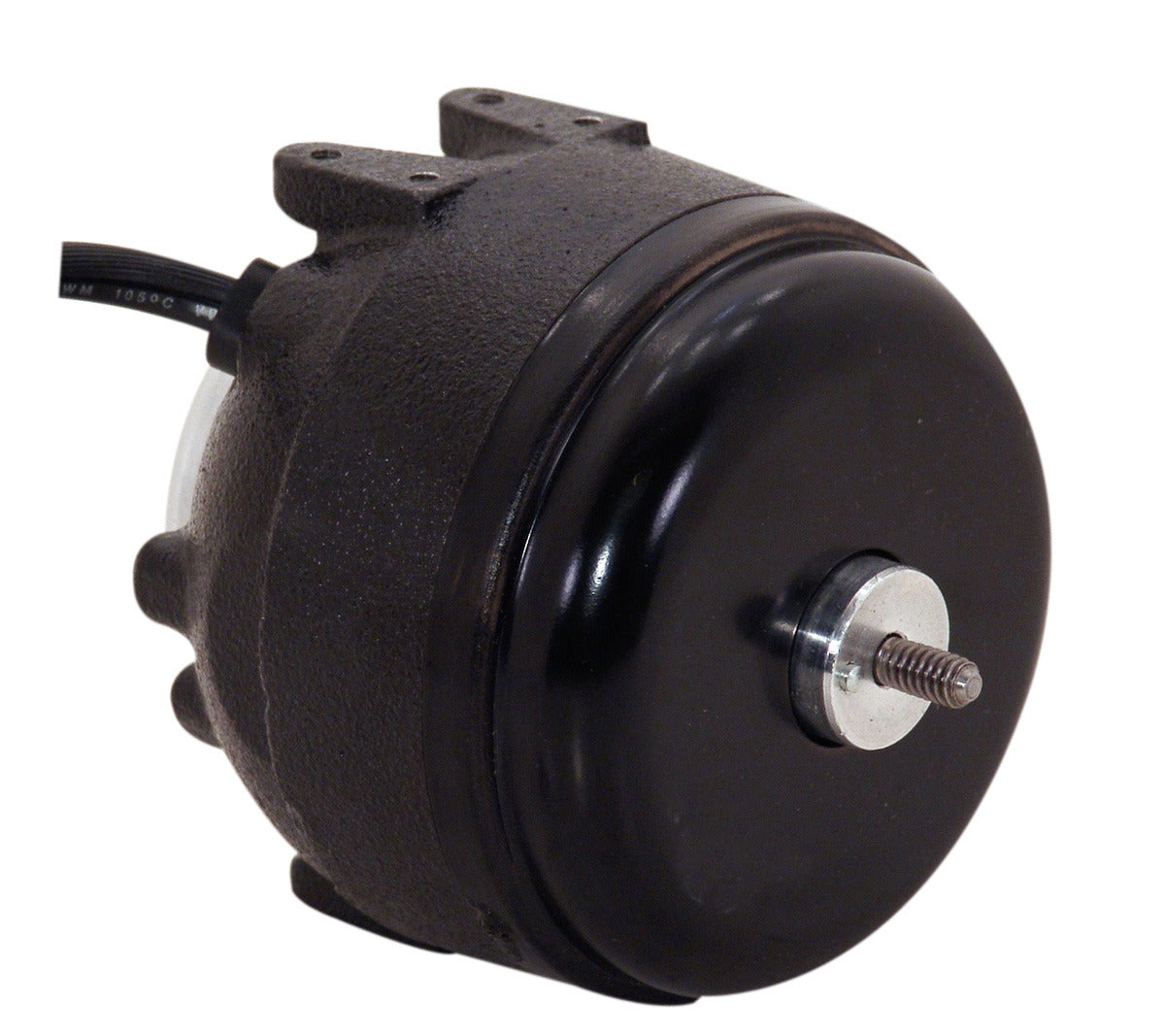

Century U247 Unit Bearing Motor 115V 1500 RPM

Product Description

The Century U247 Unit Bearing Motor is a dependable choice for various HVAC applications. Designed with a shaded pole electrical type and a unit bearing frame, it operates at 115 volts and 1500 RPM. This motor is suitable for continuous duty and features a threaded shaft extension of 0.52 inches.

• Voltage: 115V
• RPM: 1500
• Shaded Pole Electrical Type

Product Highlights

The Century U247 is engineered for efficiency in HVAC systems, ensuring reliable performance with a shaded pole motor and a CCWLE rotation. It is housed in a TEAO enclosure, making it durable for various applications.

Product Information

Standard Information

• Brand: Century
• MPN: U247
• Type: Unit Bearing Motor

Technical Specifications

• Electrical Type: Shaded Pole
• KW: 0.016
• RPM: 1500
• Frame: Unit Bearing
• Enclosure: TEAO
• Phase: Single
• Voltage: 115V
• Rotation: CCWLE
• Material: Cast Iron
• Mounting: 2 BOSS/OSE 3 Holes
• Amperage: 0.8
• Shaft Type: Threaded
• Shaft Extension: 0.52 inches
• Shaft Diameter: 0.25 inches
• Shaft Length: 20 inches
• Ambient Temperature: 40 degrees Celsius
• Duty: Continuous
• Insulation Class: A
• Poles: 4
• Service Factor: 1
• Start Method: Across The Line
